Produktbeskrivning

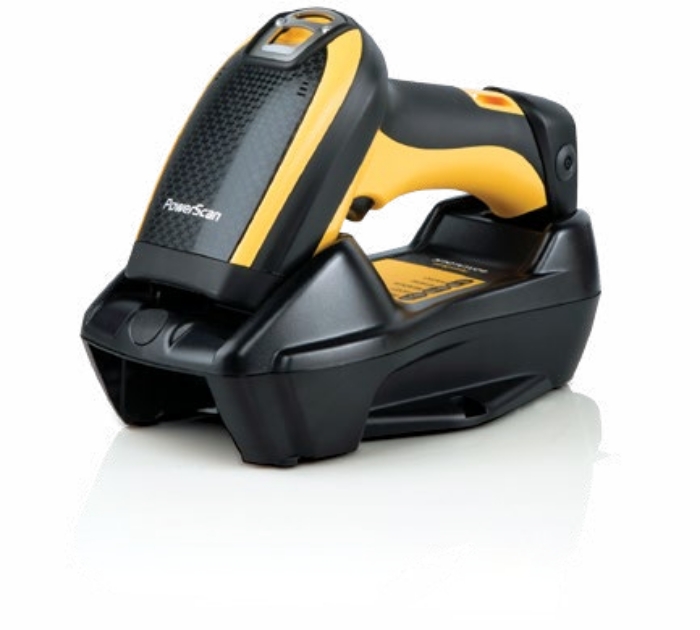

The PowerScan™ PBT9300 laser scanner features standard Bluetooth® wireless technology combined with the outstanding reliability and reading performance found in all PowerScan products.

Based on Bluetooth 3.0 standard wireless technology, Class 1 Range (in open air); up to 100 m / 328 ft. Connectivity is implemented through the receiving base station, which communicates to the host through a choice of interfaces (Serial, USB or Keyboard Wedge) or by connecting the scanner directly to any commercial or embedded Bluetooth compliant device, or via Ethernet by using the BC9180-BT base/charger using Standard Ethernet and Industrial Ethernet protocols (Ethernet IP and Modbus).

The PowerScan PBT9300 scanner mounted on a forklift with a Vehicle Mount Terminal (VMT) provides an excellent solution for warehouse applications.

The PBT9300 is available in three different models: a basic cordless model (PBT9300); an intermediate model with display and a 4-key keypad (PBT9300-D); and the advanced model (PBT9300-DK) which features a display and a full 16-key alphanumeric keyboard. All PowerScan PBT9300 models are available with reading optics for Standard Range (SR) or Auto Range (AR) for reading distances up to 11.5 m / 37.0 ft on reflective codes.

FEATURES

- Bluetooth 3.0 Class 1 compliant
- Supports Bluetooth wireless technology SPP and HID profiles
- Piconet with up to 7 scanners connected to the same base station
- Optics are available in:
- Standard Range: contact up to 1.6 m / 5.2 ft
- Auto Range: up to 11.5 m / 37.0 ft on reflective codes
- Datalogic 3GL™ and loud beeper for good-read feedback
- Drop resistance to 2.0 m / 6.5 ft
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment

APPLICATIONS

Warehouse and Distribution Centers: Shipping and Receiving, Order Processing, Parcel Preparation, Pallet Tracking and Put-away

Manufacturing / Shop Floor: Work in Progress, Component Tracking, Quality Control and Inventory



Viktiga egenskaper

Datalogic PowerScan PBT9300. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Laser. Connectivity technology: Wired & Wireless, Standard interfaces: USB, RS-232, Wireless range: 100 m. Product colour: Black, Yellow, International Protection (IP) code: IP65, LED indicators: Charging, Power. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 2150 mAh. Weight: 405 g, Width: 212 mm, Depth: 110 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D
Sensor type	Laser
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 32,Code 39,Code 93,EAN 2,EAN 5,MSI,Plessey,U.P.C.
Read rate (max)	104 reads/s
Wavelength	680 nm
Tilt reading angle	-35 - 35 °
Pitch reading angle	-40 - 40 °
Yaw reading angle	-65 - 65 °

Connectivity technology	Wired & Wireless
Standard interfaces	USB,RS-232
Wireless range	100 m
Bluetooth version	3.0+HS
Operating frequency	2400 - 2480 MHz

Product colour	Black,Yellow
International Protection (IP) code	IP65
LED indicators	Charging,Power
Certification	CDRH II; EN 60825-1 2

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	2150 mAh
Number of reads per charge	50000
Charging time	4 h
Input voltage	10 - 30 V
Power consumption	500 mA

Width	212 mm
Depth	110 mm
Height	74 mm
Weight	405 g

Cables included	No

Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95 %

Compliance certificates	RoHS
