Produktbeskrivning

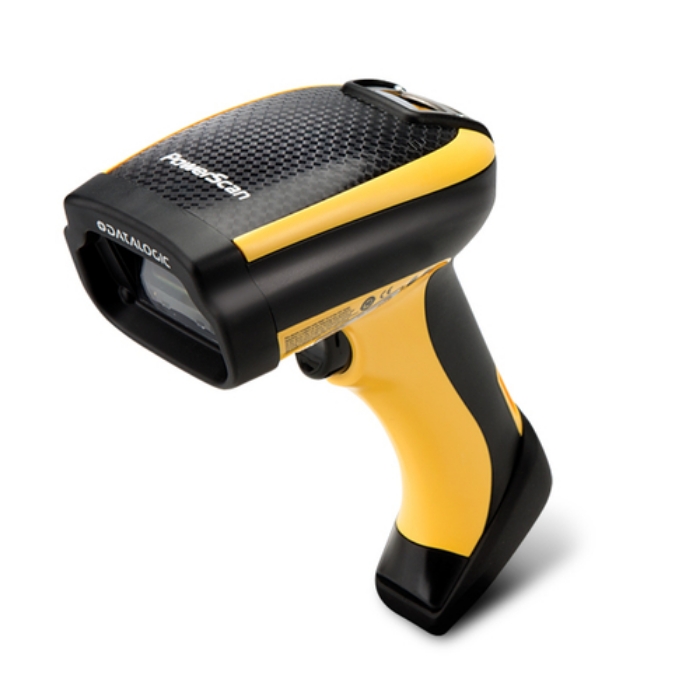

The PowerScan™ 9501 2D area imagers combine omnidirectional reading capabilities with outstanding optical characteristics, resulting in a scanner that is able to read any kind of bar code, regardless of orientation!

The PowerScan family of bar code readers are the ultimate industrial hand held scanners designed and constructed to withstand the toughest environmental conditions.

The PowerScan PD9531 imager is the corded version of the new series. The 9501 cordless area imagers are comprised of the PBT9501 / PM9501 imagers. The PBT9501 features Bluetooth® wireless technology and the PM9501 features Datalogic’s STAR Cordless System™ narrow band radio.

The PowerScan 9501 imagers have an ergonomic shape with well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Additionally, the PowerScan 9501 area imagers use a soft-pulsed white illumination light resulting in reduced flashes, which is much gentler on the eyes during scan-intensive operations.

The 9501 area imagers also feature Datalogic’s exclusive 3 Green Lights (3GL™) for superior good-read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, Keyboard Wedge, USB and offer an optional Ethernet for standard or industrial uses.

The PowerScan 9501 imagers introduce a new technology with the ‘Liquid Lens’ feature which increases the depth of field and allows the reading of standard, wide and high density bar codes. Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (hand held or presentation scanning).



Viktiga egenskaper

Datalogic PowerScan 9501. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired & Wireless, Standard interfaces: Bluetooth, USB, Operating frequency: 2400 - 2480 MHz. Product colour: Black, Yellow, Housing material: Plastic, International Protection (IP) code: IP65. Power source type: Battery, DC, Power consumption (typical): 8 W, Battery technology: Lithium-Ion (Li-Ion). Weight: 380 g, Width: 212 mm, Depth: 110 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Sensor type	Laser
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,QR Code
Linear (1D) barcodes supported	GS1 DataBar
Working distance	90 mm
Light levels (direct sunlight)	0 - 100000 lx
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Yaw reading angle	-40 - 40 °

Connectivity technology	Wired & Wireless
Standard interfaces	Bluetooth,USB
USB version	2.0
Bluetooth version	3.0
Operating frequency	2400 - 2480 MHz

Product colour	Black,Yellow
Housing material	Plastic
International Protection (IP) code	IP65
Protection features	Shock resistant
Keys quantity	4 keys
Buzzer	Yes
Certification	R.E.A.C.H.

Power source type	Battery,DC
Power consumption (typical)	8 W
Battery technology	Lithium-Ion (Li-Ion)
Battery type	Built-in battery
Battery capacity	3350 mAh
Number of reads per charge	60000
Battery life	4.5 h
Input voltage	10 V
Power consumption	500 mA

Width	212 mm
Depth	110 mm
Height	74 mm
Weight	380 g

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
