Produktbeskrivning

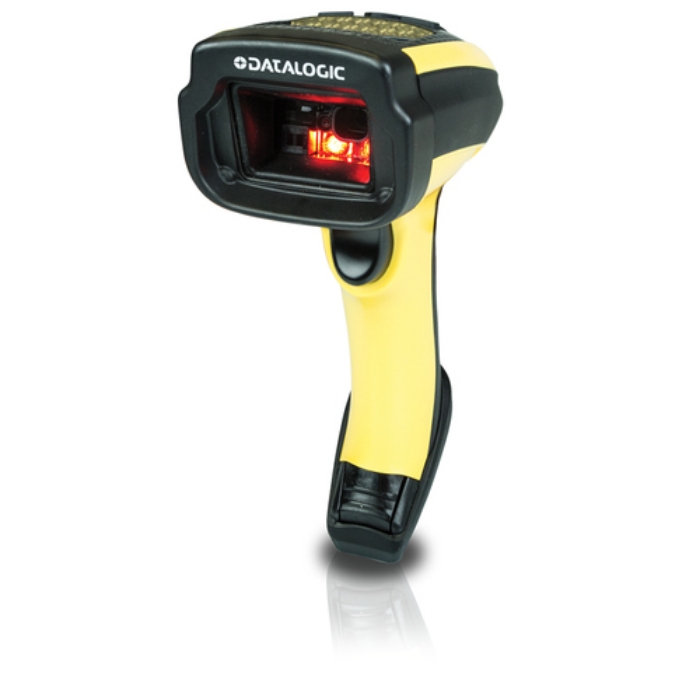

Datalogic is introducing the new PowerScan 95X1 Auto Range (AR) Series, the top performing industrial hand held scanner with extra-long range scanning capabilities on 1D/2D barcodes. This addition further expands the PowerScan 9000 family offering by including the Auto Range 2D imaging models.
The PowerScan 9500 AR imager has a powerful autofocus system that allows the scanner to read from a short distance of 15 cm / 6 in to a distance of more than 20 m / 65 ft with a fast focus adjustment, allowing the operator to easily move from a closeup barcode to a barcode at the top of a warehouse rack. A powerful LED lighting system projects a regular pattern with sharp edges that can be used as a field of view indicator in the closeup field, while a laser aimer enables the visibility of the scanner aimer at long distances.
The PowerScan 95X1 AR imagers are available in a Desk model (PD9531-AR), and cordless models featuring Datalogic’s STAR Cordless System™ 2.0 proprietary radio (PM9501-AR) or Bluetooth® 3.1 wireless technology (PBT9501-AR).
The PowerScan 95X1 AR imagers will share the same accessories as other PowerScan 9XXX series products, allowing a combination of devices and base stations according to the different needs of the user’s environment.
Viktiga egenskaper
Datalogic PowerScan 95X1 Auto Range. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired & Wireless, Standard interfaces: Bluetooth, RS-232, USB. Product colour: Black, Yellow, Housing material: Plastic, International Protection (IP) code: IP65. Power source type: Battery, DC, Power consumption (typical): 8 W, Battery technology: Lithium-Ion (Li-Ion). Weight: 460 g, Width: 110 mm, Depth: 74 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| Sensor type | LED |
|---|
| Linear (1D) barcodes supported | EAN-13,GS1 DataBar,JAN,PLANET,POSTNET,RM4SCC / KIX,UPC-A,UPC-E |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Composite Codes,Data Matrix,GS1 DataBar Expanded Stacked,GS1 DataBar Stacked Omnidirectional,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,QR Code |
|---|
| Working distance | 20000 mm |
|---|
| Tilt reading angle | -180 - 180 ° |
|---|
| Pitch reading angle | -80 - 80 ° |
|---|
| Yaw reading angle | -60 - 60 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|
| Standard interfaces | Bluetooth,RS-232,USB |
|---|
| Bluetooth version | 3.1 |
|---|
Performance
| Product colour | Black,Yellow |
|---|
| Housing material | Plastic |
|---|
| International Protection (IP) code | IP65 |
|---|
| Protection features | Shock resistant |
|---|
| LED indicators | Yes |
|---|
| Buzzer | Yes |
|---|
| Built-in display | No |
|---|
Power
| Power source type | Battery,DC |
|---|
| Power consumption (typical) | 8 W |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery capacity | 3350 mAh |
|---|
| Number of reads per charge | 40000 |
|---|
| Charging time | 4.5 h |
|---|
| Input voltage | 10 V |
|---|
| Power consumption | 500 mA |
|---|
Weight & dimensions
| Width | 110 mm |
|---|
| Depth | 74 mm |
|---|
| Height | 212 mm |
|---|
| Weight | 460 g |
|---|
Packaging data
| External power adapter | Yes |
|---|
| Charging base | Yes |
|---|
| Cables included | AC,USB |
|---|
Operational conditions
| Operating temperature (T-T) | -20 - 50 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
