Produktbeskrivning

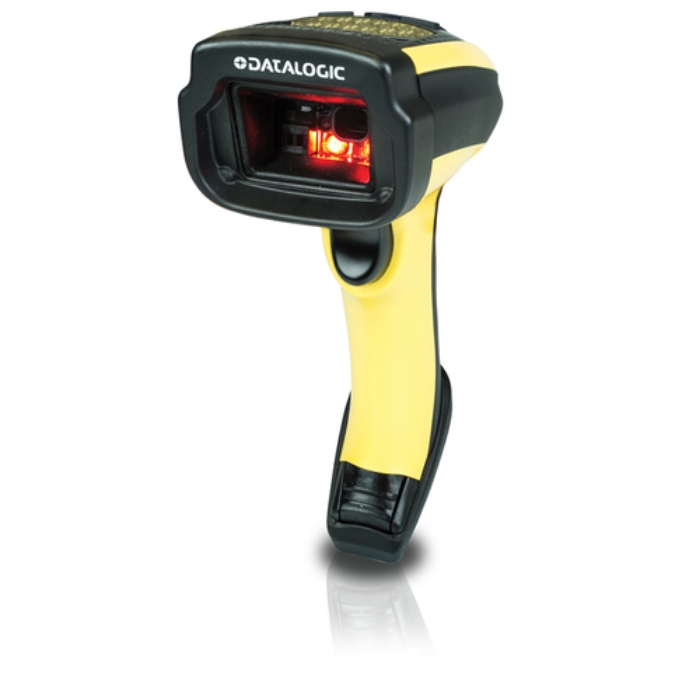

PowerScan 95X1 Auto Range Series

Datalogic is introducing the new PowerScan 95X1 Auto Range (AR) Series, the top performing industrial hand held scanner with extra-long range scanning capabilities on 1D/2D barcodes. This addition further expands the PowerScan 9000 family offering by including the Auto Range 2D imaging models. The PowerScan 9500 AR imager has a powerful autofocus system that allows the scanner to read from a short distance of 15 cm / 6 in to a distance of more than 20 m / 65 ft with a fast focus adjustment, allowing the operator to easily move from a closeup barcode to a barcode at the top of a warehouse rack. A powerful LED lighting system projects a regular pattern with sharp edges that can be used as a field of view indicator in the closeup field, while a laser aimer enables the visibility of the scanner aimer at long distances. The PowerScan 95X1 AR imagers are available in a Desk model (PD9531-AR), and cordless models featuring Datalogic’s STAR Cordless System 2.0 proprietary radio (PM9501-AR) or Bluetooth 3.1 wireless technology (PBT9501-AR). The PowerScan 95X1 AR imagers will share the same accessories as other PowerScan 9XXX series products, allowing a combination of devices and base stations according to the different needs of the user’s environment.



Viktiga egenskaper

Datalogic PowerScan 95X1 Auto Range. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: RS-232. Product colour: Black, Yellow, International Protection (IP) code: IP65, Protection features: Shock resistant. Power source type: DC, Input voltage: 4.5 - 30 V, Power consumption: 500 mA. Weight: 400 g, Width: 110 mm, Depth: 74 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Code 39,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
Sensor type	LED
Linear (1D) barcodes supported	Code 128,GS1 DataBar Omnidirectional,JAN,PLANET,POSTNET,RM4SCC / KIX
Working distance	20000 mm
Tilt reading angle	-90 - 90 °
Pitch reading angle	-40 - 40 °
Yaw reading angle	-30 - 30 °

Connectivity technology	Wired
Standard interfaces	RS-232

Product colour	Black,Yellow
International Protection (IP) code	IP65
Protection features	Shock resistant
Buzzer	Yes

Power source type	DC
Input voltage	4.5 - 30 V
Power consumption	500 mA

Width	110 mm
Depth	74 mm
Height	212 mm
Weight	400 g

Cables included	RS-232

Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-40 - 70 °C

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
