Produktbeskrivning

Long bar codes are commonly used in a variety of applications including, utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.

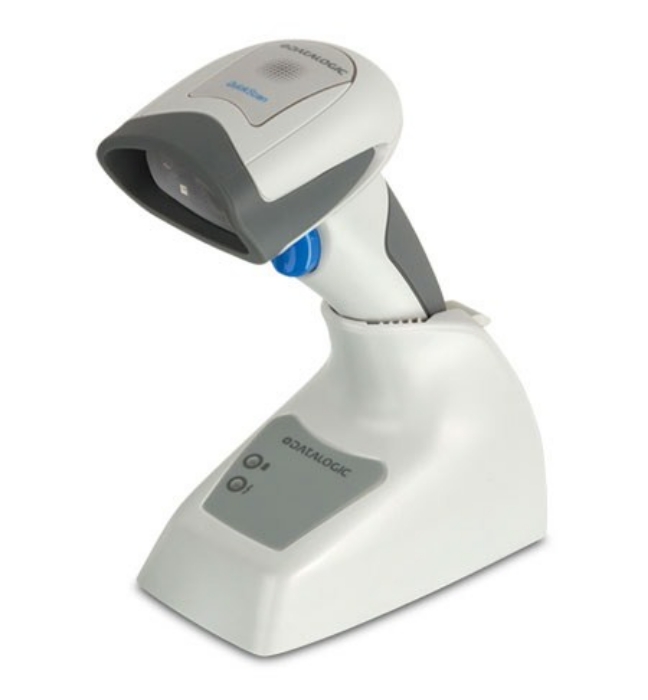

The QuickScan QM2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.
Featuring Datalogic's STAR 2.0 Cordless System for narrow band 433 Mhz radio communications, the QM2131 linear imager provides secure radio communications with no risk of interference from Wi-Fi infrastructure and very low sensitivity to obstacles like concrete walls, wood or metal shelves.

Features
- Extra-wide scan angle and extra-long scan line
- Sharp and highly visible scan line
- Enhanced depth of field for general purpose scanning applications
- Datalogic's STAR2.0 Cordless System™ with up to 25.0 m / 82.0 ft range
- Secure radio communications, interference-free with low sensitivity to obstacles
- Easy, tool-free, user-replaceable, long-lasting lithium-ion battery
- New battery package allows simultaneous change of charging contacts during battery replacement
- Alternative battery recharging through USB /microUSB cable
- Datalogic's patented 'Green Spot' technology for good-read feedback
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI



Viktiga egenskaper

Datalogic QuickScan Mobile QM2131. Type: Handheld bar code reader, Scanner type: 1D, Read rate (max): 400 reads/s. Connectivity technology: Wired, Operating frequency: 433 MHz. Product colour: White, International Protection (IP) code: IP42. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 1400 mAh. Weight: 190 g, Width: 91 mm, Depth: 41 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D
Read rate (max)	400 reads/s
Wavelength	650 nm
Tilt reading angle	-45 - 45 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-70 - 70 °

Connectivity technology	Wired
Operating frequency	433 MHz

Product colour	White
International Protection (IP) code	IP42
Buzzer	Yes

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	1400 mAh
Input voltage	4.75 - 14 V

Width	91 mm
Depth	41 mm
Height	163 mm
Base weight	215 g
Weight	190 g

Cables included	No

Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Storage temperature (T-T)	-40 - 70 °C

Harmonized System (HS) code	84716070
