MAGING TECHNOLOGY

The market trend towards 2D barcodes has clearly spread across the whole data capture industry. This is particularly true at Retailers’ where POS check-out activities face an increased need for 2D scanning and at the same time rely on reading mobile phone displays and loyalty cards.

THE MOST PROMPT RESPONSE AT THE POS CHECK-OUT

The QuickScan 2500 2D imager is your trusted companion at the POS check-out. It knows very well the importance of prompt readings, whatever the barcode, regardless of whether it’s hard-to-read, poorly printed or damaged, and it easily scans mobile devices and through plexiglass barriers, all at an incredibly affordable price.

EXTREME PRECISION CONVEYED

A sense of extreme precision is conveyed to the operator at any time, facilitating their job by clearly showing where the scanner is pointing. From the intuitive blue dot of the QW model, you can even get all the extra-precision you need with the outstanding aimer of the QD, QM and QBT models, made of two blue sharply-defined triangles. Datalo-gic’s ‘Green Spot’ technology then confirms the good read, perfectly centered on the barcode and between the two triangles, backed up by a powerful beeper that can be adjusted to your preferred level of sound. Overall, the soft red illumination lowers fatigue on the operator’s eyes.

GO CORDLESS, AT YOUR CONVENIENCE

Featuring narrow band radio communications with Datalogic’s STAR Cordless System™ (QM models) or Bluetooth® wireless technology (QBT models), the QuickScan 2500 provides the broadest choice, to best manage delivery even in times of shortage of Bluetooth micro-chips. STAR radio ensures interference-free communication with low sensiti-vity to obstacles, avoiding delays and increasing productivity, particu-larly in busy environments with Bluetooth and Wi-Fi. Featuring the distinctive design and family feeling of the Datalogic general purpose handheld scanners, the QuickScan 2500 series offers a variety of stands and accessories to best fit in any in-store environment.



Viktiga egenskaper

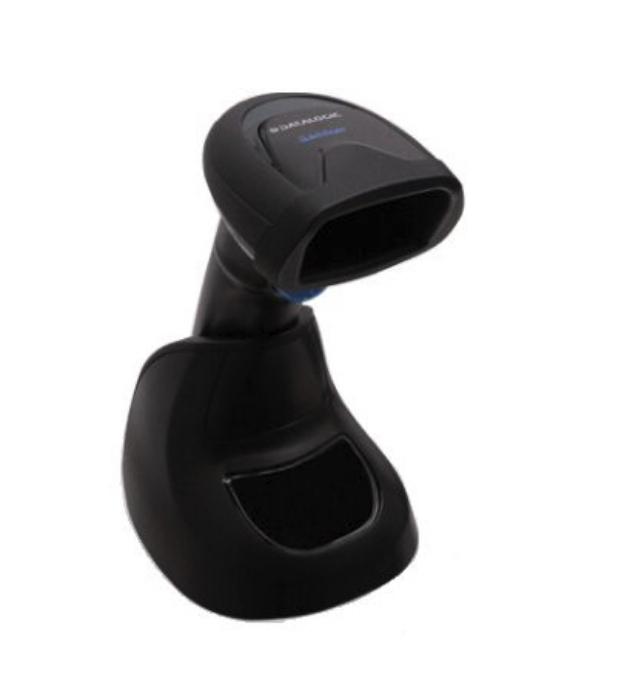

Datalogic QBT2500-BK. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: GS1 DataBar. Connectivity technology: Wired & Wireless, Standard interfaces: Bluetooth, RS-232, USB. Product colour: Black, International Protection (IP) code: IP52. Power source type: Battery, Input voltage: 5 V. Weight: 206.5 g, Width: 107 mm, Depth: 68 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Dot Code A,Han Xin,MaxiCode,QR Code
Linear (1D) barcodes supported	GS1 DataBar
Light levels (direct sunlight)	0 - 110000 lx
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-65 - 65 °

Connectivity technology	Wired & Wireless
Standard interfaces	Bluetooth,RS-232,USB

Product colour	Black
International Protection (IP) code	IP52

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of batteries supported	1
Battery capacity	3250 mAh
Input voltage	5 V

Width	107 mm
Depth	68 mm
Height	159 mm
Weight	206.5 g

Operating relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
