Produktbeskrivning

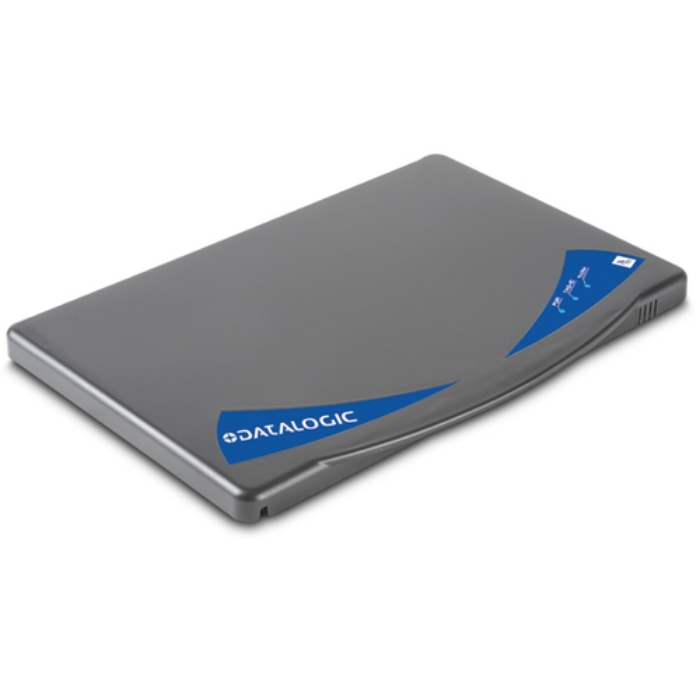

The DLR-DK001 RFID UHF desktop reader is a multi-regional UHF RFID reader with an integrated antenna for short to medium range applications. The reader is powered and controlled directly by a USB cable and reads EPC Global Class1 Gen2 UHF RFID tags.

Its low profile (1.5 cm / 0.6 in) and compact size (approximately an A4 page) make the DLR-DK001 reader the perfect choice for various applications such as Point of Sale, Document Tracking, Tag Programming Stations and Access Control. The module can also be used as a building block for smart shelves and smart displays.



Viktiga egenskaper

Datalogic DLR-DK001. AC adapter output voltage: 5 V, AC adapter output current: 0.4 A. Width: 297 mm, Depth: 205 mm, Height: 15 mm



Teknisk specifikation

Interface	USB
Product colour	Blue,Grey
Working distance	900 mm
LED indicators	Yes
Certification	EPC C1 G2/ISO 18000-6C

AC adapter output current	0.4 A
AC adapter output voltage	5 V

Harmonized System (HS) code	84719000

Width	297 mm
Depth	205 mm
Height	15 mm
Weight	525 g

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
