Produktbeskrivning

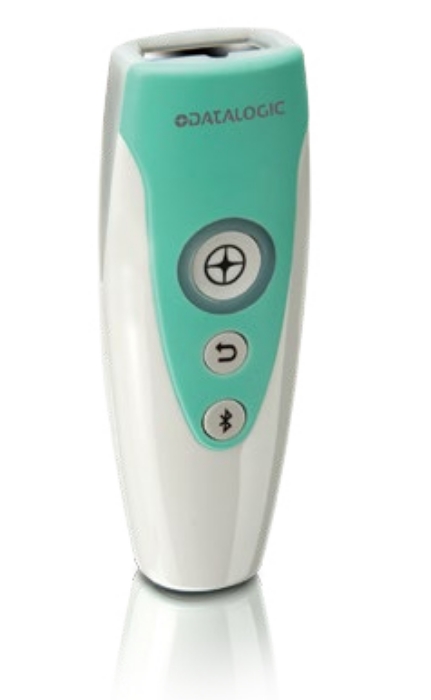

Datalogic’s RIDA™ DBT6400 cordless area imager with Bluetooth® wireless technology is the ideal workmate for connection with mobile devices. The imager is a small, ergonomic, perfectly hand-fitted wireless device with a modern and elegant design.
The RIDA DBT6400 imager pairs easily with Android™, Apple® iOS and Windows® Mobile® devices as well as standard laptops equipped with Bluetooth wireless technology. This imager reads 1D and 2D bar codes, damaged or poorly printed codes and bar codes on mobile phone screens. Its main features include image capture capability, white illumination and the most efficient aiming system in the market place.
The RIDA DBT6400 imager is available as a healthcare version equipped with disinfectant ready and anti-microbial enclosure.
FEATURES- Image capture capability
- Outstanding reading performance on 1D/2D printed codes or on mobile phone screens
- Bluetooth wireless technology
- Compatible with Android, Apple iOS and Windows Mobile devices
- Batch Mode capability: +2,000 linear codes stored in memory
- Disinfectant Ready enclosures treated with anti-microbial additives (ISO22196 compliant)
Viktiga egenskaper
Datalogic RIDA DBT6400. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: JAN, PostBar, RM4SCC / KIX. Connectivity technology: Wired & Wireless, Standard interfaces: Bluetooth, USB, Wireless range: 25 m. Product colour: White, International Protection (IP) code: IP50. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 700 mAh. Weight: 85 g, Width: 112.5 mm, Depth: 42.3 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| Linear (1D) barcodes supported | JAN,PostBar,RM4SCC / KIX |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Composite Codes,Data Matrix,GS1 DataBar Expanded Stacked,GS1 DataBar Stacked Omnidirectional,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,QR Code |
|---|
| Wavelength | 650 nm |
|---|
| Tilt reading angle | 0 - 360 ° |
|---|
| Pitch reading angle | -65 - 65 ° |
|---|
| Yaw reading angle | -60 - 60 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|
| Standard interfaces | Bluetooth,USB |
|---|
| Wireless range | 25 m |
|---|
| Bluetooth version | 4.0 |
|---|
| Operating frequency | 2400 MHz |
|---|
Performance
| Product colour | White |
|---|
| International Protection (IP) code | IP50 |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Number of batteries supported | 1 |
|---|
| Battery capacity | 700 mAh |
|---|
| Number of reads per charge | 3000 |
|---|
| Battery life | 5 h |
|---|
| Charging time | 2.5 h |
|---|
Weight & dimensions
| Width | 112.5 mm |
|---|
| Depth | 42.3 mm |
|---|
| Height | 27.5 mm |
|---|
| Weight | 85 g |
|---|
Packaging data
| Cables included | No |
|---|
Operational conditions
| Storage temperature (T-T) | -20 - 70 °C |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
