Produktbeskrivning

The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative 'read-through' holder. Cables, power cords and supplies are all sold separately.



Viktiga egenskaper

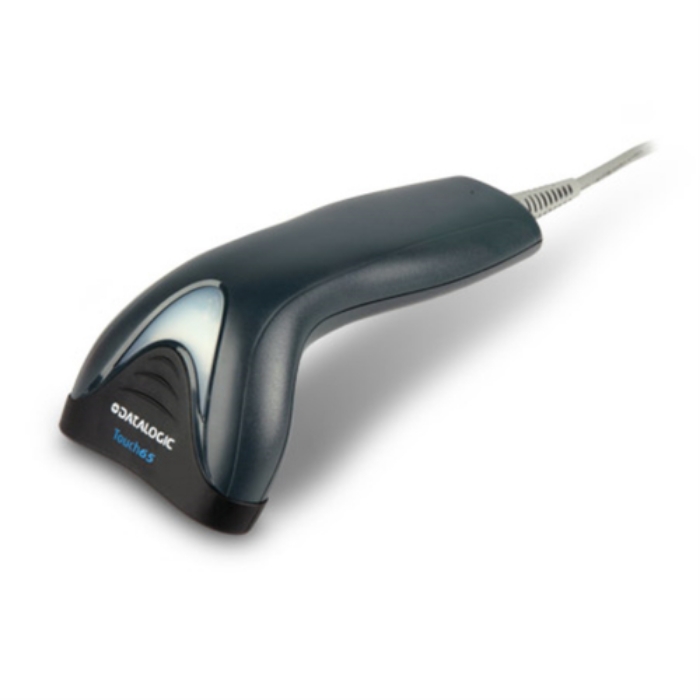

Datalogic Touch 65 Lite. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP30, Certification: RoHS. Input voltage: 5 V, Power consumption: 100 mA. Weight: 130 g, Width: 84 mm, Depth: 160 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D
2D (matrix & stacked) barcodes supported	Not supported
Linear (1D) barcodes supported	Code 39,EAN-13
Sensor type	Laser
Working distance	150 mm
Light levels (direct sunlight)	0 - 20000 lx
Wavelength	640 nm
Tilt reading angle	-45 - 45 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-70 - 70 °
Tilt angle range	-45 - 45 °

Connectivity technology	Wired
Standard interfaces	USB
Bluetooth	No

Product colour	Black
International Protection (IP) code	IP30
Buzzer	Yes
Built-in display	No
Certification	RoHS

Input voltage	5 V
Power consumption	100 mA

Width	84 mm
Depth	160 mm
Height	58 mm
Weight	130 g

Cables included	USB

Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
