Produktbeskrivning

The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative 'read-through' holder. Cables, power cords and supplies are all sold separately.



Viktiga egenskaper

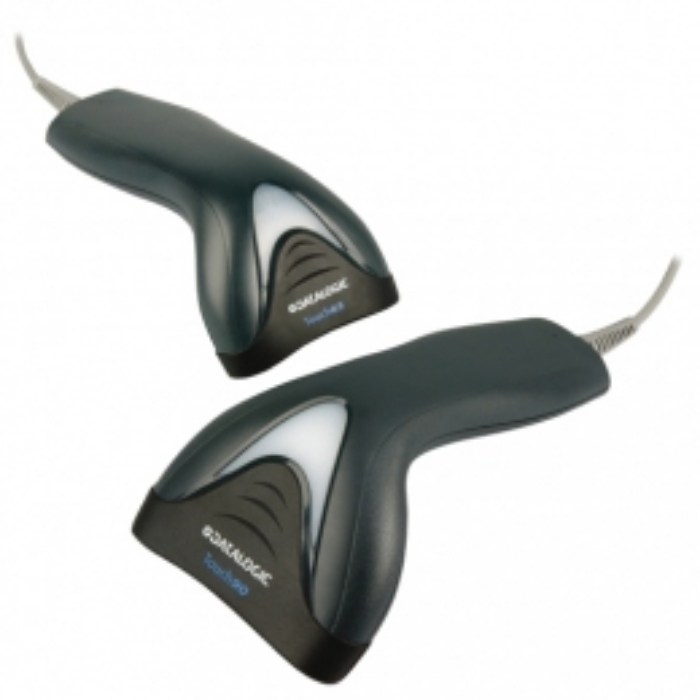

Datalogic Touch 90 Pro. Working distance: 15 cm, Light levels (direct sunlight): 0 - 20000 lx, Wavelength: 640 nm. Standard interfaces: USB, RS-232, Keyboard wedge. Product colour: Black, International Protection (IP) code: IP30, Certification: RoHS. Input voltage: 5 V, Power consumption: 100 mA. Weight: 153 g



Teknisk specifikation

Working distance	150 mm
Light levels (direct sunlight)	0 - 20000 lx
Wavelength	640 nm
Tilt reading angle	-45 - 45 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-70 - 70 °
Maximum scan width	90 mm

Standard interfaces	USB,RS-232,Keyboard wedge

Product colour	Black
International Protection (IP) code	IP30
Buzzer	Yes
Certification	RoHS

Input voltage	5 V
Power consumption	100 mA

Weight	153 g

Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C

Harmonized System (HS) code	84716070

Dimensions (WxDxH)	104 x 67 x 170 mm
