Produktbeskrivning

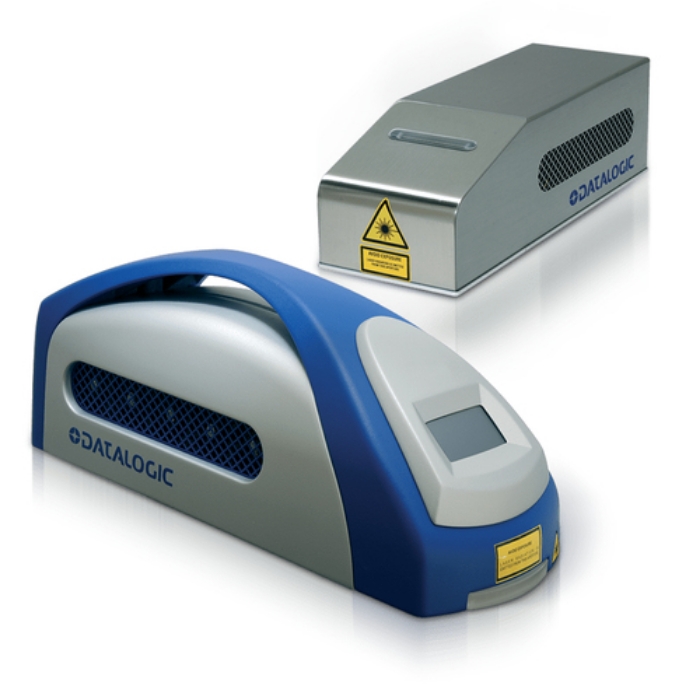

The Ulyxe product line provides ideal laser marking solutions for both stand-alone applications and industrial production lines. -

Integrated 6 W DPSS laser marking system, due to its costeffective, innovative design, Ulyxe becomes the first choice in marking solutions by providing the best price/performance for plastic and metal marking applications.



Viktiga egenskaper

Datalogic ULYXE. Laser output power: 6 W, Laser wavelength: 1064 nm, Repetition rate range: 200000 Hz. Power source type: DC, DC input voltage: 24 V, DC current (max): 13 A. Product type: DPSS laser marker, International Protection (IP) code: IP21. Width: 410 mm, Depth: 145.6 mm, Height: 123.5 mm



Teknisk specifikation

Laser wavelength	1064 nm
Laser output power	6 W
Repetition rate range	200000 Hz
Pulse width	25 ns
Laser aiming type	Semiconductor
Focus beam	635 nm
Scanning method	4-axis (XYZA)
Working distance	178 mm
Fixing distance	186 mm
Working area	100 x 100 mm
Laser class	4

USB port	Yes
RS-232 ports	1

Power source type	DC
DC input voltage	24 V
DC current (max)	13 A
Power consumption (typical)	200 W
Power consumption (max)	300 W

Product type	DPSS laser marker
International Protection (IP) code	IP21

Width	410 mm
Depth	145.6 mm
Height	123.5 mm
Weight	7800 g

Operating temperature (T-T)	15 - 35 °C
Storage temperature (T-T)	-5 - 55 °C
