Produktbeskrivning

Made for team collaboration, this monitor provides up to 90W power delivery via USB-C and flexibility to include an OptiPlex Micro based on your needs.



Viktiga egenskaper

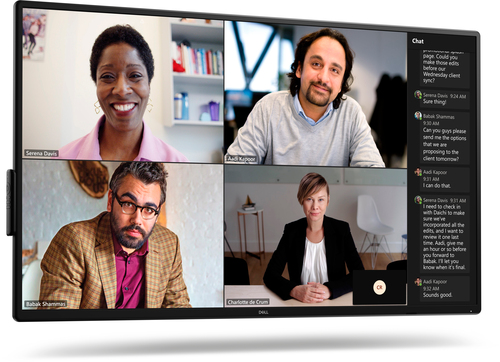

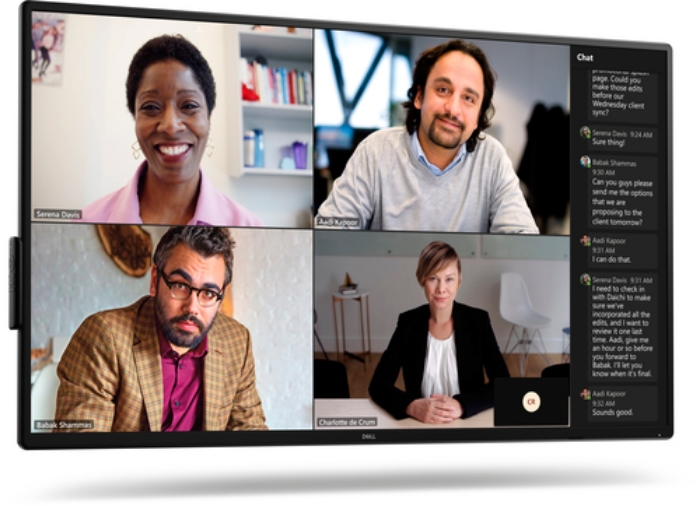

DELL P5525QC. Product design: Digital signage flat panel. Display diagonal: 138.8 cm (54.6"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD. Product colour: Black



Teknisk specifikation

Display diagonal	54.64 "
Display technology	LCD
LED backlight	Yes
Panel type	IPS
LED backlighting type	Edge-LED
Display resolution	3840 x 2160 pixels
Display brightness	400 cd/m²
HD type	4K Ultra HD
Touchscreen	No
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.315 x 0.315 mm
Active display area (W x H)	1209.6 x 680.4 mm
Display diagonal (metric)	138.787 cm
Supported graphics resolutions	640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 800,1600 x 1200 (UXGA),1920 x 1080 (HD 1080),2048 x 1152,2560 x 1440,3840 x 2160
Supported video modes	480p,576p,720p,1080i,1080p,2160p
Surface hardness	3H
Vertical scan range	24 - 75 Hz
Horizontal scan range	30 - 140 kHz
Colour depth	8 bit
Haze rate	25 %
Colour gamut	72 %

HDMI ports quantity	2
HDMI version	2.0
DVI port	No
DisplayPorts quantity	2
DisplayPort version	1.4
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-A,USB Type-B,USB Type-C
USB 2.0 Type-B ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	90 W
USB Type-C DisplayPort Alternate Mode	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
RS-232C	Yes
DC-in jack	Yes

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	20 W

Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
VESA mounting	Yes
Panel mounting interface	300 x 400 mm
Bezel width (bottom)	28.51 mm
Bezel width (side)	18.92 mm
Bezel width (top)	18.92 mm
Anti-glare screen	Yes

Purpose	Commercial

Power consumption (typical)	77.1 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Power consumption (max)	300 W
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	77 kWh
AC input voltage	100-240 V
AC input frequency	50/60 Hz

Width	1247.43 mm
Depth	79.8 mm
Height	727.83 mm
Weight	22400 g

Package weight	33800 g

Remote control included	Yes
Cables included	AC,DisplayPort,HDMI,USB,USB Type-C

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 90 %

Carbon emissions, energy usage (kg of CO2e)	373.58
Total carbon footprint (kg of CO2e)	927
PAIA version	GaBi version 1, 2024
Carbon emissions, end-of-life (kg of CO2e)	112.17
Carbon emissions, logistics (kg of CO2e)	63.04
Carbon emissions, manufacturing (kg of CO2e)	377.29

Sustainability certificates	ENERGY STAR,TCO
Compliance certificates	RoHS
Doesn't contain	Arsenic,Mercury (element),PVC/BFR

Quick start guide	Yes
Remote control battery	AAA x 2
