Produktbeskrivning

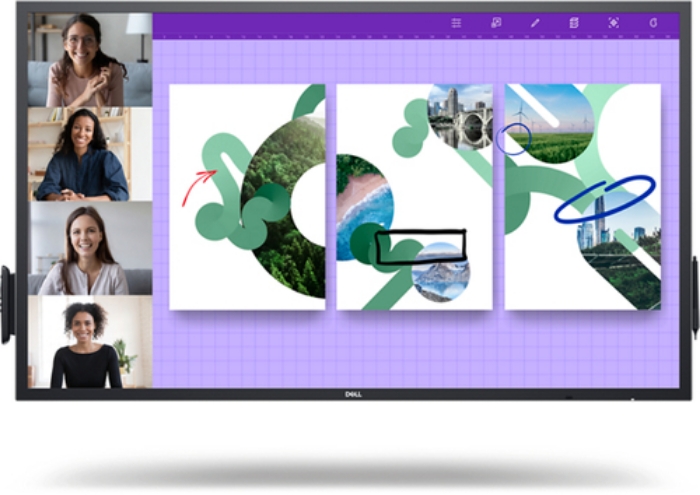

Bring the team together, whether they are in the room or remote, with this brilliant 55" 4K UHD large format monitor with 20-point touch, palm-rejection, USB-C connectivity and built-in dual 10W speakers.



Viktiga egenskaper

DELL P5524QT. Product design: Interactive flat panel. Display diagonal: 139.7 cm (55"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD, Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	55 "
Display technology	LCD
LED backlight	Yes
Panel type	IPS
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Touchscreen	Yes
Multi-touch	Yes
Number of simultaneous touchpoints	20
Native aspect ratio	16:9
Contrast ratio (typical)	1300:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.315 x 0.315 mm
Display diagonal (metric)	138.787 cm
Vertical scan range	24 - 75 Hz
Horizontal scan range	30 - 140 kHz
Supported graphics resolutions	640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 800,1600 x 1200,1920 x 1080 (HD 1080),2048 x 1152,2560 x 1440,3840 x 2160
Hardness	3H
Supported video modes	480p,576p,720p,1080i,1080p,2160p
Native refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	72 %

HDMI ports quantity	3
HDMI version	2.0
DVI port	No
DisplayPorts quantity	1
USB port	Yes
USB ports quantity	8
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-A
USB 2.0 Type-B ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	90 W
USB Type-C DisplayPort Alternate Mode	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Wi-Fi	No
Audio (L/R) in	1
RS-232 interface	Yes

Built-in speaker(s)	Yes
Number of built-in speakers	2
Speaker impedance	8 Ω
RMS rated power	20 W
Speaker frequency range	120 - 20000 Hz

Product design	Interactive flat panel
Product colour	Black
Placement supported	Indoor
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	300 x 400 mm
Bezel width (bottom)	44.7 mm
Bezel width (side)	44.7 mm
Bezel width (top)	44.7 mm
Anti-glare screen	Yes

Purpose	Corporate
On Screen Display (OSD)	Yes

Power consumption (typical)	77.1 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Power consumption (max)	320 W
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	77 kWh
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Heat dissipation	263.08 BTU/h
Energy efficiency scale	A to G

Windows operating systems supported	Windows 7 Professional,Windows 7 Ultimate,Windows 8,Windows 8.1
Mac operating systems supported	Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan
Linux operating systems supported	Yes

Display width	1298.98 mm
Display depth	78.7 mm
Display height	769.78 mm
Display weight	34300 g

Package weight	41900 g

Remote control included	Yes
Stylus pen	Yes
Number of stylus pens	2
Cables included	DisplayPort,HDMI,USB,USB Type-C

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 90 %
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Total carbon emissions, standard deviation (kg of CO2e)	386
Carbon emissions, end-of-life (kg of CO2e)	23.49
Carbon emissions, energy usage (kg of CO2e)	572.52
Total carbon footprint (kg of CO2e)	1468
Carbon emissions, manufacturing (kg of CO2e)	672.34
PAIA version	PAIA 1.3.2, 2022
Carbon emissions, logistics (kg of CO2e)	199.65

Heat dissipation (max)	1091.89 BTU/h

Doesn't contain	Arsenic,Mercury (element),PVC/BFR
Compliance certificates	RoHS
Sustainability certificates	ENERGY STAR
Sustainability compliance	Yes

Cable management	Yes
Quick start guide	Yes
Cable lock slot	Yes
On/off switch	Yes
Viewable size, vertical	680.4 mm
Viewable size, horizontal	1209.6 mm
Response time	9 s
Power supply type	Internal
LED indicators	Yes
Plug and Play	Yes
