Viktiga egenskaper

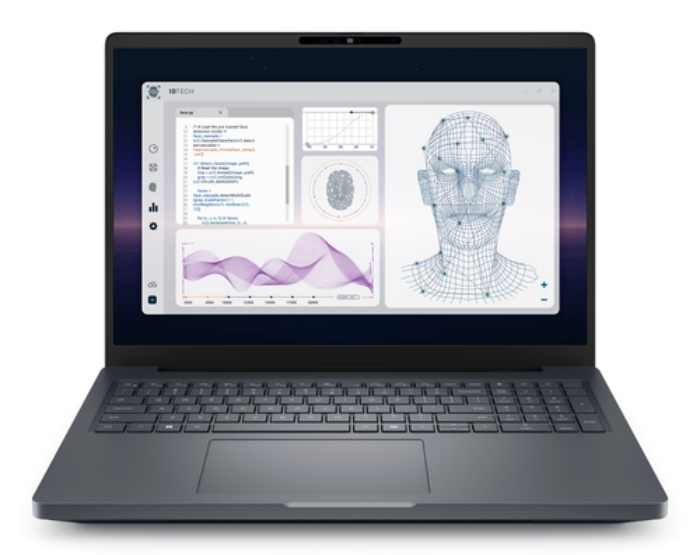

DELL Pro Max 16 Plus MB16250. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 285HX. Display diagonal: 40.6 cm (16"), HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA RTX PRO 3000 Blackwell. Operating system installed: Windows 11 Pro. Product colour: Black



Teknisk specifikation

Product type	Mobile workstation
Product colour	Black
Colour name	Magnetite
Form factor	Clamshell
Intel® vPro™ Platform Eligibility	Yes

Display diagonal	16 "
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
Panel type	WVA
Native aspect ratio	16:10
LED backlight	Yes
Anti-glare screen	Yes
Display brightness	500 cd/m²
Pixel density	141 ppi
Low Blue Light technology	Yes
RGB colour space	DCI-P3
Colour gamut	100 %
Display response rise/fall	35 ms
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1500:1

Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor generation	Intel Core Ultra (Series 2)
Processor model	285HX
Processor cores	24
Processor threads	24
Processor boost frequency	5.5 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.5 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	2.8 GHz
Efficient-core base frequency	2.1 GHz
Processor cache	36 MB
Maximum turbo power	160 W
Processor base power	55 W

Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML,OpenVINO,Windows ML,ONNX RT,WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs

Internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory form factor	CSODIMM
Memory layout (slots x size)	2 x 32 GB
Maximum internal memory	64 GB
Memory data transfer rate	6400 MT/s
Non-ECC	Yes

Total storage capacity	1000 GB
Storage media	SSD
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Self-Encrypting Drive (SED)	Yes
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD,SDHC,SDXC

On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX PRO 3000 Blackwell
Discrete graphics card memory	12 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio chip	Cirrus Logic CS42L43
Number of built-in speakers	2
Speaker power	2.5 W
Number of microphones	2
Built-in microphone	Yes

Front camera	Yes
Front camera resolution (numeric)	8.29 MP
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
Antenna type	2x2
Wi-Fi data rate (max)	5760 Mbit/s
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE200
Ethernet LAN	Yes
Ethernet LAN data rates	10,1000,2500,100 Mbit/s
Bluetooth	Yes
Near Field Communication (NFC)	Yes

USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Thunderbolt 5 ports quantity	2
Intel® Thunderbolt 4	Yes
Intel® Thunderbolt 5	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	1

Hall sensor	Yes
Accelerometer	Yes

Pointing device	Touchpad
Keyboard language	Nordic
Keyboard backlit	Yes
Numeric keypad	Yes
Copilot key	Yes

Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Activate Your Microsoft 365 For A 30 Day Trial

Brand specific technologies	Control Vault 3+,Express Charge Boost capable,HDR Camera,TNR

Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	96 Wh
Battery voltage	11.7 V
Battery recharge time	3 h
Fast charging	Yes
Battery charge indicator	Yes

AC adapter power	280 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Type-C required charging power (min)	90 W
USB Type-C required charging power (max)	240 W

Cable lock slot	Yes
Cable lock slot type	Noble
Smart card reader	Yes
Fingerprint reader	Yes
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight	2550 g
Width	360 mm
Depth	258.6 mm
Height (front)	17.34 mm
Height (rear)	18.97 mm

PAIA version	GaBi version 1, 2025
Carbon emissions, end-of-life (kg of CO2e)	4.85
Carbon emissions, energy usage (kg of CO2e)	47.87
Carbon emissions, manufacturing (kg of CO2e)	141.4
Total carbon footprint (kg of CO2e)	202
Carbon emissions, logistics (kg of CO2e)	7.88

AC adapter included	Yes
