Viktiga egenskaper

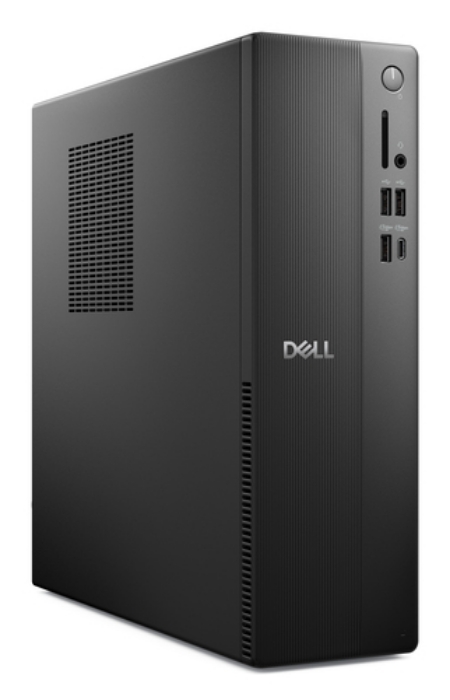

DELL Pro QVS1260. Processor family: Intel® Core™ i5, Processor model: i5-14400. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 730. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 180 W. Chassis type: Slim PC. Product type: PC. Product colour: Black



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5 (14th gen)
Processor model	i5-14400
Processor cores	10
Processor threads	16
Processor boost frequency	4.7 GHz
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor base power	65 W
Maximum turbo power	148 W

Internal memory	16 GB
Maximum internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x DIMM
Memory data transfer rate	4800 MT/s
Buffered memory type	Unregistered (unbuffered)

Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express
SSD form factor	M.2

Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel UHD Graphics 730

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Realtek RTL8111KD
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller manufacturer	MediaTek
Wi-Fi standards	Wi-Fi 6 (802.11ax)
WLAN controller model	MediaTek MT7920
Antenna type	2x2
Bluetooth	Yes
MU-MIMO	Yes

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Number of front USB ports	4
Number of rear USB ports	4
Number of SATA III connectors	1

PCI Express x1 slots	3
PCI Express x16 slots	1

Chassis type	Slim PC
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Product type	PC
Motherboard chipset	Intel Q670
Audio chip	Realtek ALC3204
Audio system	High Definition Audio
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	McAfee® Business Protection 1-year,Activate Your Microsoft 365 For A 30 Day Trial

Power supply	180 W
Power supply input voltage	90 - 264 V
Power supply input frequency	47 - 63 Hz
80 PLUS certification	80 PLUS Bronze

Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	5 - 95 %
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating vibration	0.26 G
Non-operating vibration	1.37 G
Operating shock	40 G
Non-operating shock	105 G

Width	95 mm
Depth	293 mm
Height	303.5 mm

Display included	No
Cables included	AC

Carbon emissions, energy usage (kg of CO2e)	62.78
Carbon emissions, manufacturing (kg of CO2e)	68.07
Carbon emissions, logistics (kg of CO2e)	9.15
Carbon emissions, end-of-life (kg of CO2e)	3
PAIA version	GaBi version 1, 2025
Total carbon footprint (kg of CO2e)	143

Box contents	System Power Cord C13 (Europe/Indonesia/Laos/Mongolia/Vietnam)
