Produktbeskrivning

Experience improved visual comfort, peak productivity and extensive connectivity with this hub monitor certified by TÜV for 4-star eye comfort.



Viktiga egenskaper

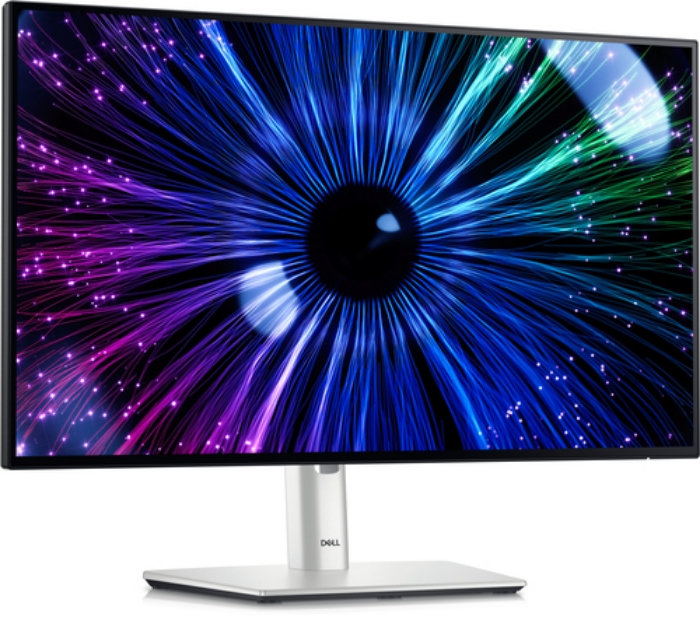

DELL UltraSharp U2424HE. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 3.2 Gen 2 (3.1 Gen 2). VESA mounting, Height adjustment. Product colour: Black, Silver



Teknisk specifikation

Display diagonal	23.8 "
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	IPS
Backlight type	Edge LED
Display brightness (typical)	250 cd/m²
Response time	8 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA),720 x 400,720 x 480,800 x 600 (SVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 720 (HD 720),1600 x 900,1920 x 1080 (HD 1080)
Supported video modes	480p,576p,720p,1080i,1080p
Contrast ratio (typical)	1000:1
Maximum refresh rate	120 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Response time (fast)	5 ms
Pixel pitch	0.2745 x 0.2745 mm
Pixel density	92.53 ppi
Horizontal scan range	31 - 135 kHz
Vertical scan range	48 - 120 Hz
Viewable size, horizontal	527.04 mm
Viewable size, vertical	296.46 mm
Viewable size diagonal	604.7 mm
Display diagonal (metric)	60.47 cm
High Dynamic Range (HDR) supported	No
Surface hardness	3H
Colour gamut standard	DCI-P3
Colour gamut	85 %
sRGB coverage (typical)	100 %

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Built-in speaker(s)	No
Built-in camera	No

Market positioning	Business
Product colour	Black,Silver
Front bezel colour	Black
Feet colour	Silver
Heavy metals free	Hg (mercury)

Built-in USB hub	Yes
USB hub version	3.2 Gen 2 (3.1 Gen 2)
USB upstream port type	USB Type-C
Number of USB Type-C upstream ports quantity	2
USB Type-A downstream ports quantity	4
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	90 W
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	2
DisplayPort version	1.4
Headphone out	Yes
Microphone in	No
PC Audio in	No
HDCP	Yes
HDCP version	1.4
AC (power) in	Yes

Wi-Fi	No

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	150 mm
Pivot	Yes
Pivot angle	-90 - 90 °
Swivelling	Yes
Swivel angle range	-45 - 45 °
Tilt adjustment	Yes
Tilt angle range	-5 - 21 °
On Screen Display (OSD)	Yes

Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	15 kWh
Power consumption (typical)	14.5 W
Power consumption (standby)	0.5 W
Power consumption (max)	210 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	2.2 A
Power supply type	Internal
Energy efficiency scale	A to G

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80 %
Storage relative humidity (H-H)	5 - 90 %
Operating altitude	0 - 5000 m
Non-operating altitude	5000 - 12192 m

Stand included	Yes
Cables included	AC,DisplayPort,USB Type-A to USB Type-C
Power adapter included	Yes
Remote control included	No
Stylus included	No
Quick start guide	Yes
DisplayPort cable length	1.8 m

Width (with stand)	538.64 mm
Depth (with stand)	181.75 mm
Height (with stand)	496.53 mm
Weight (with stand)	5550 g
Width (without stand)	538.64 mm
Depth (without stand)	49.1 mm
Height (without stand)	311.21 mm
Weight (without stand)	3980 g
Bezel width (side)	5.8 mm
Bezel width (top)	5.8 mm
Bezel width (bottom)	8.95 mm

Package weight	8450 g

Sustainability certificates	ENERGY STAR,TCO
Doesn't contain	PVC/BFR
Sustainability compliance	Yes

Carbon emissions, energy usage (kg of CO2e)	108.61
Carbon emissions, logistics (kg of CO2e)	40.66
Carbon emissions, manufacturing (kg of CO2e)	380.92
Total carbon emissions, standard deviation (kg of CO2e)	122
Total carbon footprint (kg of CO2e)	535
PAIA version	PAIA 1.3.2, 2022
Carbon emissions, end-of-life (kg of CO2e)	4.82

Compliance certificates	RoHS

Ethernet LAN (RJ-45) ports	1
