Produktbeskrivning

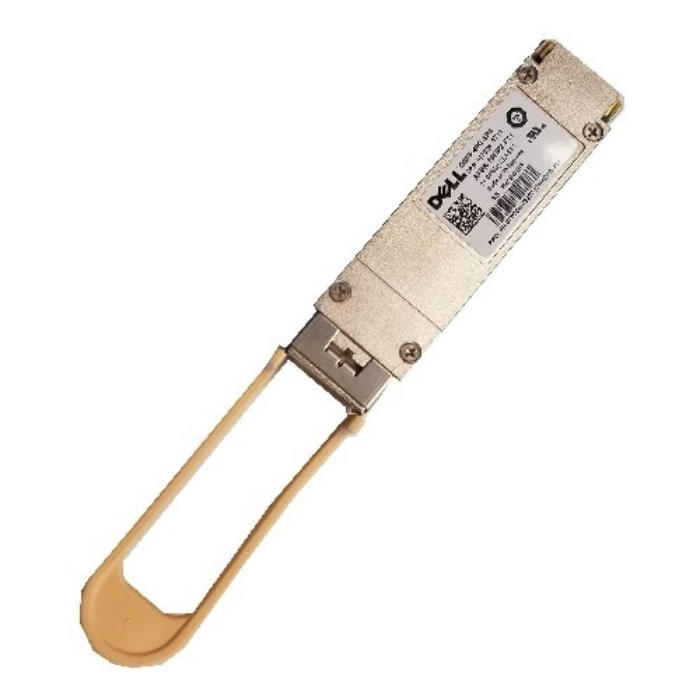

The Dell™ QSFP+ transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with QSFP+ (Quad Form Factor Pluggable) footprint features a MPO-12connector. The Dell networking 40GBase-SR4 QSFP+ transceiver provides 40GbE connectivity up to 100-150m.

Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.



Viktiga egenskaper

DELL 7TCDN. SFP transceiver type: Fiber optic, Maximum data transfer rate: 4000 Mbit/s, Interface type: QSFP+. Brand compatibility: Dell, Compatible products: - Dell Networking N3132PX-ON - Dell Networking N4000 Series - Dell Networking N4032 - Dell.... Quantity per pack: 1 pc(s)



Teknisk specifikation

SFP transceiver type	Fiber optic
Maximum data transfer rate	4000 Mbit/s
Interface type	QSFP+
Fiber optic connector	LC
SFP transceiver standard	SR
Maximum transfer distance	150 m
Wavelength	850 nm

Brand compatibility	Dell
Compatible products	- Dell Networking N3132PX-ON - Dell Networking N4000 Series - Dell Networking N4032 - Dell Networking N4032F - Dell Networking N4064 - Dell Networking N4064F - Dell Networking S4048-ON - Dell Networking S4048T-ON - Dell Net

Quantity per pack	1 pc(s)
Harmonized System (HS) code	85369010
