Produktbeskrivning

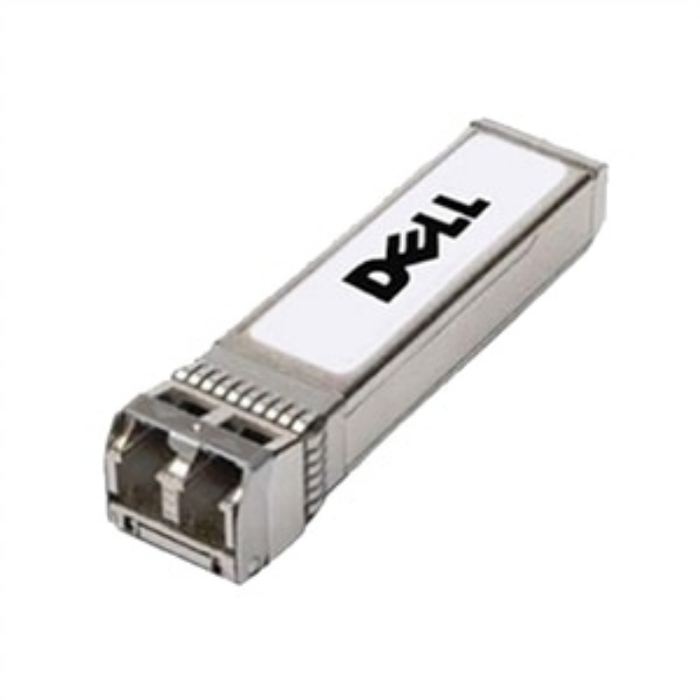

The Dell™ SFP transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a Duplex LC connector. The Dell networking 1000BASE SFP transceiver provides 1000BASE connectivity up to 500 m .

Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.



Viktiga egenskaper

DELL 407-BBOR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: mini-GBIC/SFP. Compatible products: - Dell Networking S5224F-ON - Dell Networking X1018 - PowerEdge R730XL - Dell Networking N2024 -.... Quantity per pack: 1 pc(s)



Teknisk specifikation

SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	mini-GBIC/SFP
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SX
Maximum transfer distance	550 m
Wavelength	850 nm
Ethernet interface type	Gigabit Ethernet
Cabling technology	1000BASE-SX

Hot-Plug support	Yes
Compatible products	- Dell Networking S5224F-ON - Dell Networking X1018 - PowerEdge R730XL - Dell Networking N2024 - PowerEdge VRTX - Dell Networking N3048ET-ON - Dell Networking N4032 - Dell Networking S4048T-ON - Dell Networking N3048 -

Quantity per pack	1 pc(s)
Harmonized System (HS) code	85369010
