Produktbeskrivning

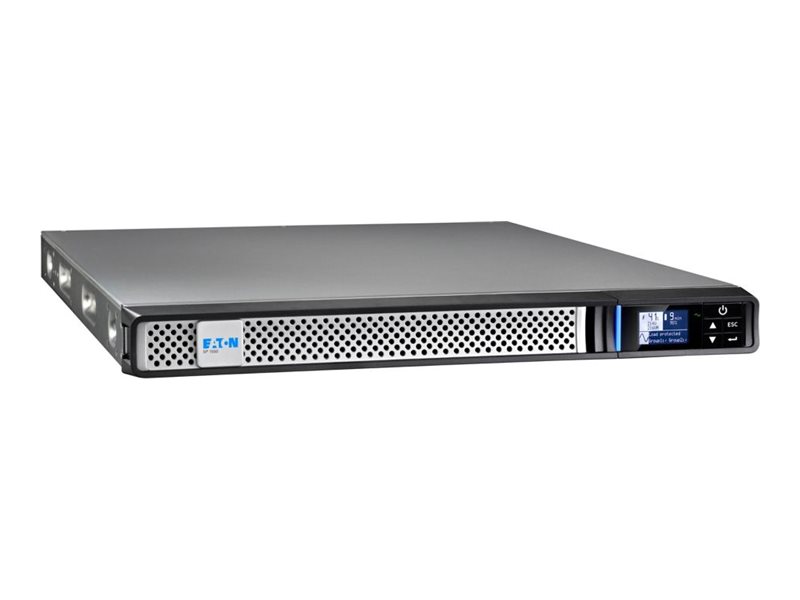

This Eaton 5P is a 1150VA line interactive rack UPS with the Automatic Voltage Regulation (AVR), a sinewave output and an advanced multilingual LCD display with energy metering features.

The 5P possesses 6 IEC outlets including 3 remotely manageable outlets and hot swappable batteries. In order to increase battery lifetime, this UPS includes the Advanced Battery Management (ABM) technology.

The 5P also features a connector for remote power off or remote on off function. High-density protection for networks.



Egenskaper

Manageability
The graphical LCD display provides clear information on the UPS's status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys. Load segment control enables prioritized shutdowns of nonessential equipment during outages in order to maximize battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.

Performance and efficiency
Energy efficient UPS: with an optimized electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs.

Pure sinewave output
When operating in battery mode, the 5P provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.

Adjustable tolerance and sensitivity
Users can maximize useful battery life by widening the input voltage window or adjustable input waveform sensitivity (via the LCD or software) to adapt the UPS to a specific environment (like Genset).

Stronger, longer battery life
Eaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%.



Innehåll i förpackning

● Rack-mounting kit
● Cable locking system
● USB cable
● Serial cable
● (2) IEC-IEC cables
● Quickstart guide
● Safety instructions



Teknisk specifikation

Typ av enhet	UPS - kan monteras i rack
Höjd (U-format)	1U

UPS-teknik	Interaktiv
Inspänning	Växelström 160-290 V
Inspänningens område	AC 150 - 294 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	1 x ström IEC 60320 C14
Kontaktdetaljer för uteffekt	6 x power IEC 60320 C13
Utspänning	230 V 50/60 Hz
Max elektrisk ström	10 A
Effektkapacitet	770 Watt / 1150 VA
Utvågform	Sinusvåg

Gränssnitt för fjärradministration	RS-232, USB

Egenskaper	Advance Battery Management (ABM), LCD-bildskärm
Standarder som följs	TUV, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2

Service och support	Begränsad garanti - 3 år Begränsad garanti - batterier - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	35 °C
Ljudnivå	40 dBA

Bredd	43.8 cm
Djup	50.9 cm
Höjd	4.32 cm
Vikt	14.6 kg
