Produktbeskrivning

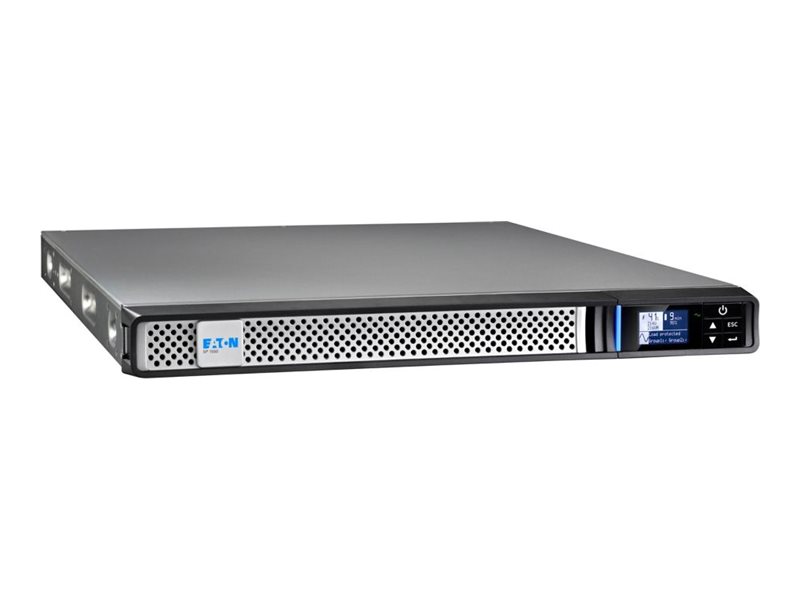

This Eaton 5P is a 1550VA line interactive rack UPS with the Automatic Voltage Regulation (AVR), a sinewave output and an advanced multilingual LCD display with energy metering features.
The 5P possesses 6 IEC outlets including 3 remotely manageable outlets and hot swappable batteries. In order to increase battery lifetime, this UPS includes the Advanced Battery Management (ABM) technology.
The 5P also features a connector for remote power off or remote on off function. High-density protection for networks.
Egenskaper
ManageabilityThe graphical LCD display provides clear information on the UPS's status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys. Load segment control enables prioritized shutdowns of nonessential equipment during outages in order to maximize battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.
Performance and efficiencyEnergy efficient UPS: with an optimized electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs.
Pure sinewave outputWhen operating in battery mode, the 5P provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
Adjustable tolerance and sensitivityUsers can maximize useful battery life by widening the input voltage window or adjustable input waveform sensitivity (via the LCD or software) to adapt the UPS to a specific environment (like Genset).
Stronger, longer battery lifeEaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%.
Innehåll i förpackning
● Rack-mounting kit
● Cable locking system
● USB cable
● Serial cable
● (2) IEC-IEC cables
● Quickstart guide
● Safety instructions
Teknisk specifikation
Allmänt
Typ av enhet | UPS - kan monteras i rack |
Höjd (U-format) | 1U |
Nätdel
UPS-teknik | Interaktiv |
Inspänning | Växelström 160-290 V |
Inspänningens område | AC 150 - 294 V |
Tillhandahållen frekvens | 50/60 Hz |
Erforderlig frekvens | 50/60 Hz |
Inmatningsanslutningar | 1 x ström IEC 60320 C14 |
Kontaktdetaljer för uteffekt | 6 x power IEC 60320 C13 |
Utspänning | 230 V 50/60 Hz |
Max elektrisk ström | 10 A |
Effektkapacitet | 1100 Watt / 1550 VA |
Utvågform | Sinusvåg |
Nätverk
Gränssnitt för fjärradministration | RS-232, USB |
Diverse
Egenskaper | Advance Battery Management (ABM), LCD-bildskärm |
Standarder som följs | TUV, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2 |
Tillverkarens garanti
Service och support | Begränsad garanti - 3 år Begränsad garanti - batterier - 2 år |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 40 °C |
Ljudnivå | 40 dBA |
Mått och vikt
Bredd | 43.8 cm |
Djup | 55.4 cm |
Höjd | 4.32 cm |
Vikt | 19.4 kg |
