Produktbeskrivning

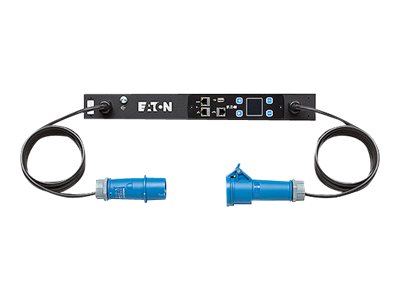

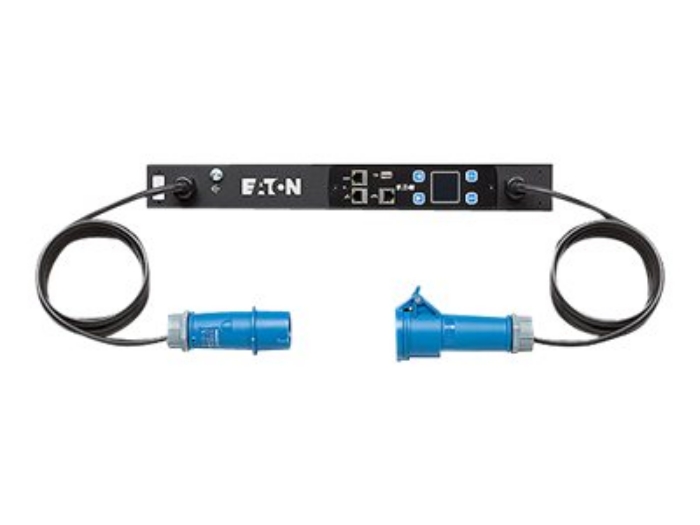

New ePDU G3 In Line Metered Input models upgrade existing basic installation to include, including ±1% billing grade accuracy, an advanced LCD pixel display, a hotswap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address



Egenskaper

Operate in extreme environments
The ePDU G3 can be used in 60°C environments and containment solutions.

True IEC Class 1 billing grade accuracy
Monitor your energy consumption (kWhr) plus V, W and A extremely accurately. Monitor ePDU and branch circuit.

Prevent accidental disconnect
Integrated IEC outlet grip plug retention. Prevents accidental disconnect from being bumped or from vibration.

Simplify load balancing
Color coding and laser engraved chassis easily link breakers to outlet groups.

Reduce the IP ports needed to monitor your power
Daisy-chain up to 4 ePDUs to reduce the cost of networking. Reduces network infrastructure cost by 75%.

Centrally monitor and manage
Easily monitor the status of your power distribution.

Easily access hot swappable IT equipment
The ePDU doesn't protrude into the rack and is low profile even at the breakers.



Teknisk specifikation

Typ av enhet	Strömövervakningsenhet - kan monteras i rack
Höjd (U-format)	0U
Färg	Svart

Inspänning	AC 230 V
Inspänningens område	AC 200-240 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	1 x ström IEC 60309 16A
Kontaktdetaljer för uteffekt	1 x ström IEC 60309 16A
Utspänning	AC 230 V 50/60 Hz
Max elektrisk ström	16 A
Effektkapacitet	7 kW

Gränssnitt för fjärradministration	Ethernet, RS-232

Gränssnitt	1 x övervakning 1 x hantering (Ethernet) 1 x hantering (RS-232)

Medföljande kablar	2 x strömkabel - integrerad - 3 m
Egenskaper	LED-fönster, spänningsövervakning, spänningsmätare
Standarder som följs	CB

Min temperatur vid drift	0 °C
Max temperatur vid drift	60 °C

Bredd	44.3 cm
Djup	5.3 cm
Höjd	5.2 cm
