Produktbeskrivning

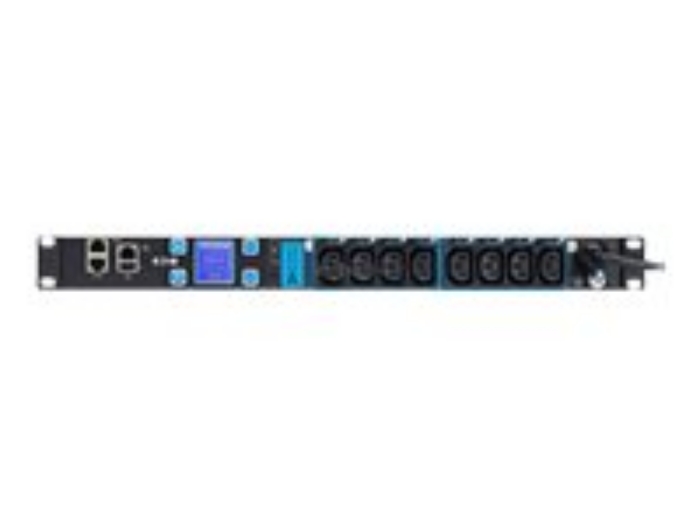

ePDU G3 Switched models allow lights-out control of devices including switching devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
Egenskaper
● Securely allows remote control and remote rebooting
● Highly secure with Admin controlling user access permission, password protection and SSL configurable to 1024 or 2048 bit
● Switch equipment on/off across both A and B feed
● Sequence outlets to avoid in-rush current, to ensure equipment starts in correct order
● Input and phase metering, circuit breaker current metering
● IEC outlet eGrip plug retention: retains all standard IEC plugs
● 60 Degree C operating temperature
● Color-coded outlet and branch circuits for simple load balancing
● Eaton Hydraulic - magnetic circuit breakers with accidental trip protection
● Low-profile form factor: 52 mm wide x 53 mm deep on most models
Teknisk specifikation
Allmänt
Typ av enhet | Kraftdistributionsenhet - kan monteras i rack |
Höjd (U-format) | 1U |
Sladdlängd | 3 m |
Nätdel
Inspänning | AC 230 V |
Ingångskablage | 1-fas |
Erforderlig frekvens | 50 Hz |
Inmatningsanslutningar | 1 x ström IEC 60320 C20 |
Kontaktdetaljer för uteffekt | 8 x power IEC 60320 C13 |
Max elektrisk ström | 16 A |
Kretsskydd | Strömbrytare |
Nätverk
Gränssnitt för fjärradministration | Ethernet 10/100, RS-232 |
Protokoll för administration på distans | SNMP, Telnet, HTTP, HTTPS, TFTP |
Expansion/Anslutning
Gränssnitt | 1 x hantering (Ethernet) - RJ-45 1 x hantering (RS-232) - RJ-45 1 x överlappande 1 x sensor |
Diverse
Medföljande kablar | Strömkabel - integrerad - 3 m |
Egenskaper | Spänningsmätare, digital spänningsmätare, aktiv strömmätare, verklig strömmätare, energimätare |
Standarder som följs | REACH, ISO 9001:2008, ISO 14001:2004, IEC 60950-1 Second Edition, EN55022:2010, IEC 61000-6-2:2005, RoHS 2011/65/EU, EN50581:2012, EN 55024:2010, WEEE 2012/19/EU, EN 61000-6-4:2007+A1:2011, EN 60950-1:2006+A11:2009+A1:2010+A12:2011 |
Sustainability Information
Återvunnet förpackningsinnehåll | 100 % |
Tillverkarens garanti
Service och support | Begränsad garanti - 2 år |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 60 °C |
Mått och vikt
Bredd | 44.5 cm |
Djup | 20.3 cm |
Höjd | 4.3 cm |
