Produktbeskrivning

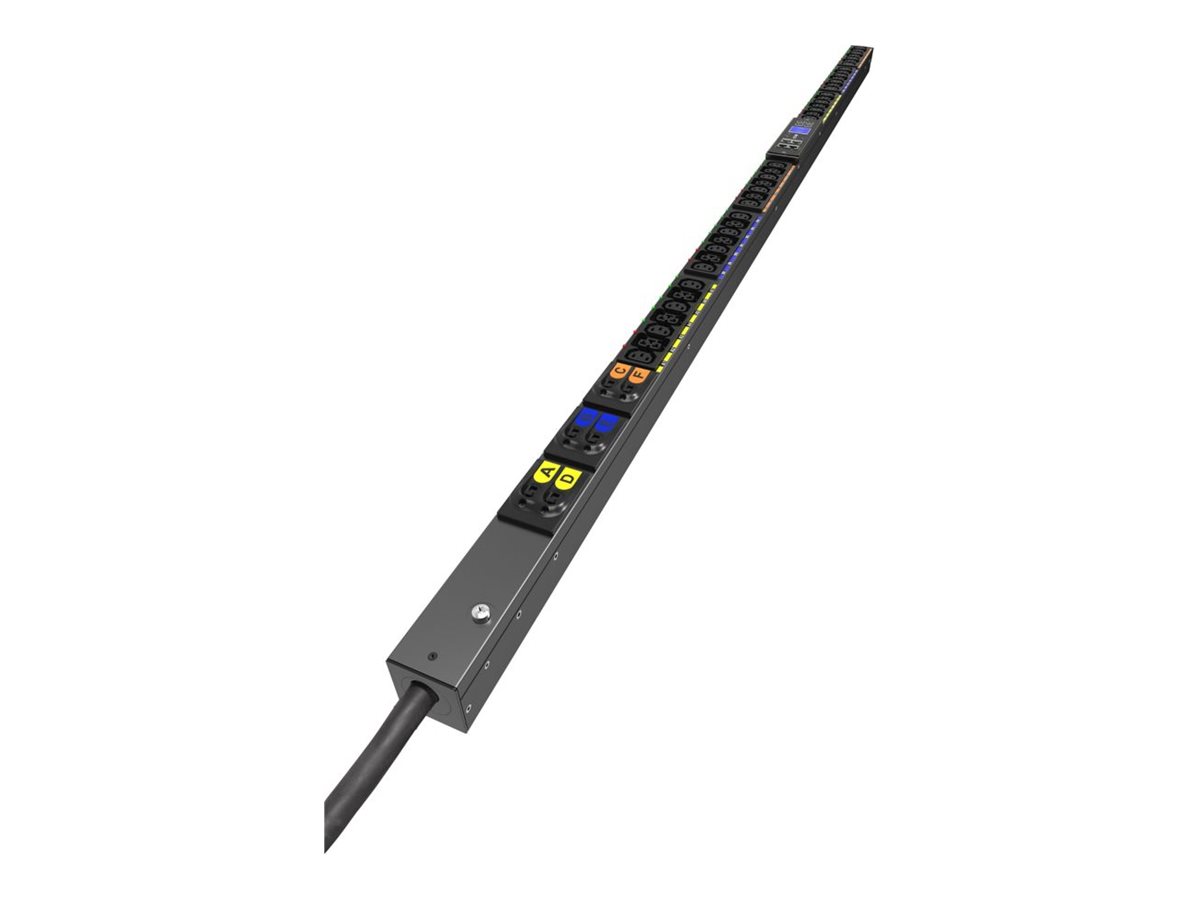

Eaton's rack PDU G4 delivers the highly secure power distribution and business continuity so critical in today's data center space. Enable you to shape your PDU strategy to suit your data center setting and requirements. This range has been designed to offer incremental features and benefits - each subsequent variant with increased capabilities. Basic G4 PDU provides cost-effective, reliable power distribution with a secure, built-in high retention system to firmly hold standard power cords and type C39 outlet that combines C13 and C19 connectors. Metered input G4 PDU streamlines power management and promotes efficient operations by simplifying load balancing and preventing overloads. Advanced control features at the outlet level combine with all the power quality measurement capabilities of the Metered Input PDU. Managed G4 PDU incorporates all the features of the switched model but goes a step further by actively monitoring and measuring crucial power quality factors such as voltage, current and power consumption at outlet level.



Teknisk specifikation

Typ av enhet	Kraftdistributionsenhet
Höjd (U-format)	0U
Sladdlängd	3 m
Färg	Svart

Inspänning	AC 200-240 V
Ingångskablage	1-fas
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	1 x ström IEC 60309
Kontaktdetaljer för uteffekt	24 x power IEC 60320 C13 18 x ström IEC 60320 C39
Max elektrisk ström	63 A
Effektkapacitet	14.4 kW
Kretsskydd	Strömbrytare

Gränssnitt för fjärradministration	Ethernet 10/100/1000, serial
Protokoll för administration på distans	SNMP, HTTPS, Modbus, LDAP, TCP/IP, RestAPI

Rackmonteringssats	Inkluderat
Egenskaper	LCD-display, vertikalt fäste, aluminiumhölje, enpolig magnetisk brytare, nätverkskort med hotswap, strömsladd med P-lås
Standarder som följs	CB, RoHS, WEEE, LVD, EAC, IEC/EN 61000-6-2, IEC/EN 61000-6-4, IEC 62368-1, IEC 61000-3-12, IEC 61000-3-11, CM, UL 2900-1, IEC 62443-4-2, UKCA, UKR, IEC/EN 63000, CISPR 35/EN 55035

Min temperatur vid drift	0 °C
Max temperatur vid drift	60 °C

Bredd	5.2 cm
Djup	173 cm
Höjd	5.3 cm
