Produktbeskrivning

Eaton's new rack PDU G4 delivers the highly secure power distribution and business continuity so critical in today's data center space. Enable you to shape your PDU strategy to suit your data center setting and requirements. The range was designed to offer incremental features and benefits - each subsequent variant with increased capabilities. This basic G4 PDU provides cost-effective, reliable power distribution with a secure, built-in high retention system to firmly hold standard power cords and new type C39 outlet that combines C13 and C19 connectors. Metered input G4 PDUstreamlines power management and promotes efficient operations by simplifying load balancing and preventing overloads. Advanced control features at the outlet level combine with all the power quality measurement capabilities of the Metered Input PDU. Managed G4 PDU incorporates all the features of the switched model but goes a step further by actively monitoring and measuring crucial power quality factors such as voltage, current and power consumption at outlet level.



Egenskaper

Efficient power distribution

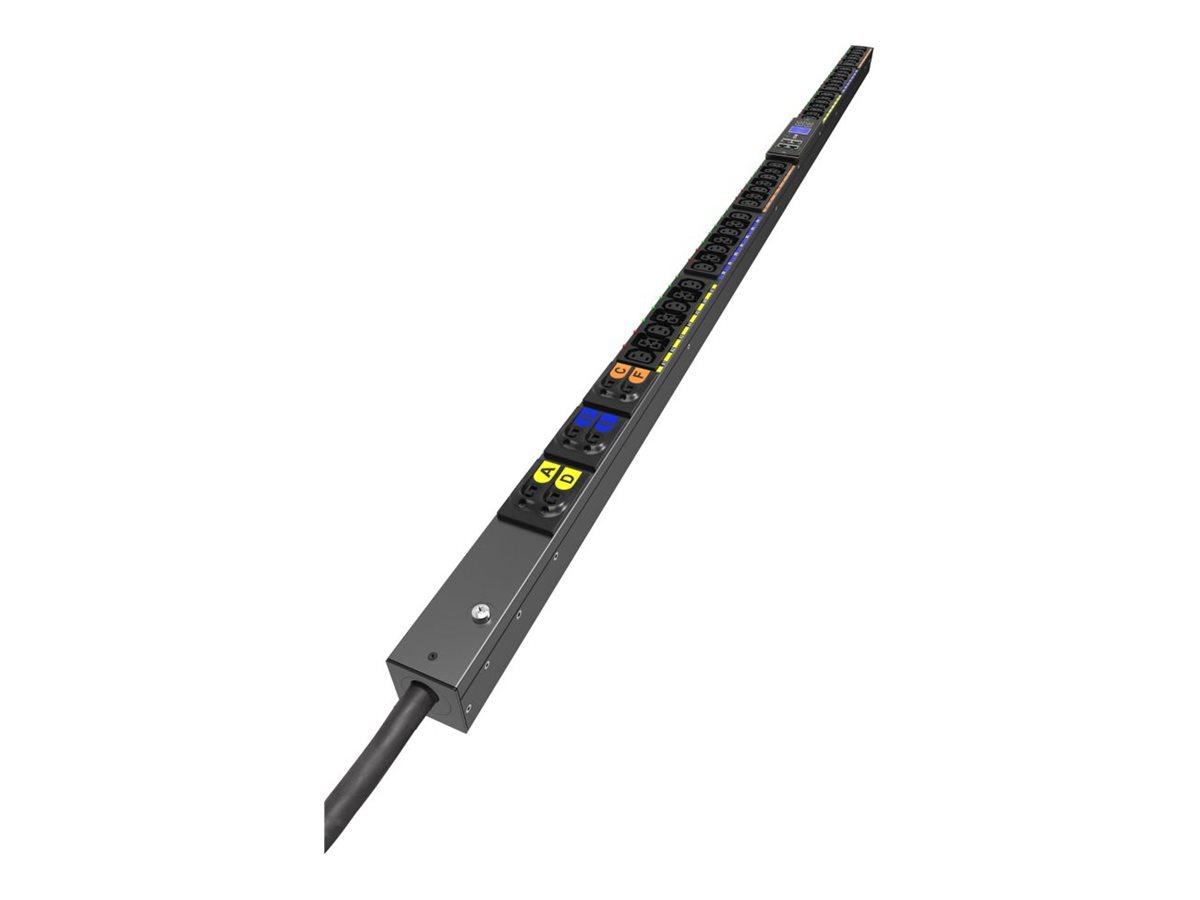

The Eaton Managed Rack PDU EVMAF316X ensures efficient power distribution within your IT environment, featuring a 3-phase input wiring system and providing up to 11 kW of power. Its 42 output connectors, including 18 x power IEC 60320 C39 and 24 x power IEC 60320 C13, cater to a wide range of power needs, making it a versatile solution for managing power distribution.

Advanced remote management
Equipped with comprehensive remote management protocols including HTTPS, LDAP, Modbus TCP, RestAPI, and SNMP, this power distribution unit allows for seamless integration and monitoring of your power infrastructure. The ability to remotely monitor and control the PDU enhances operational efficiency and ensures the reliability of your power supply.

Robust and secure design
Designed with an aluminum housing and featuring high retention locking outlets, the Eaton Managed Rack PDU is built for durability and security. Compliance with multiple standards including CISPR 35, EN 55035, and UL 2900-1, ensures that this PDU meets rigorous safety and performance criteria, providing peace of mind in its reliability and security measures.



Teknisk specifikation

Typ av enhet	Kraftdistributionsenhet - kan monteras i rack
Höjd (U-format)	0U
Sladdlängd	3 m
Färg	Svart

Inspänning	AC 240-415 V
Tillhandahållen frekvens	50 - 60 Hz
Ingångskablage	3-fas
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	Ström IEC 60309 16A
Kontaktdetaljer för uteffekt	24 x power IEC 60320 C13 18 x ström IEC 60320 C39
Utspänning	50 - 60 Hz
Max elektrisk ström	16 A
Effektkapacitet	11 kW

Protokoll för administration på distans	SNMP, HTTPS, LDAP, RestAPI, Modbus TCP

Gränssnitt	2 x hantering (Gigabit Ethernet) - RJ-45 Seriell - RS-232

Inkluderade tillbehör	Rackmonterande maskinvara
Medföljande kablar	Strömkabel 3 m
Rackmonteringssats	Inkluderat
Egenskaper	Vertikal orientering, aluminiumhölje, fjärrövervakning, LCD-bildskärm, överlappningsbar, Outlet Switch Control, starka låsbara utgångar, med omkopplare, ineffektsmätning, strömsladd med P-lås
Standarder som följs	EN 61000-3-2, EN 61000-3-3, CB, WEEE, LVD, EAC, IEC/EN 61000-6-2, IEC/EN 61000-6-4, IEC 62368-1, EN 55035, CISPR 35, CM, Packaging Directive, UL 2900-1, IEC 62443-4-2, UKCA, UKR, IEC/EN 63000

Service och support	Begränsad garanti - 3 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	60 °C

Bredd	5.2 cm
Djup	5.3 cm
Höjd	173 cm
Vikt	4.8 kg
