Produktbeskrivning

Eaton's new rack PDU G4 delivers the highly secure power distribution and business continuity so critical in today's data center space. Enable you to shape your PDU strategy to suit your data center setting and requirements. This range was designed to offer incremental features and benefits - each subsequent variant with increased capabilities. This basic G4 PDU provides cost-effective, reliable power distribution with a secure, built-in high retention system to firmly hold standard power cords and new type C39 outlet that combines C13 and C19 connectors. Metered input G4 PDUstreamlines power management and promotes efficient operations by simplifying load balancing and preventing overloads. Advanced control features at the outlet level combine with all the power quality measurement capabilities of the Metered Input PDU. This managed G4 PDU incorporates all the features of the switched model but goes a step further by actively monitoring and measuring crucial power quality factors such as voltage, current and power consumption at outlet level.



Egenskaper

Efficient power distribution

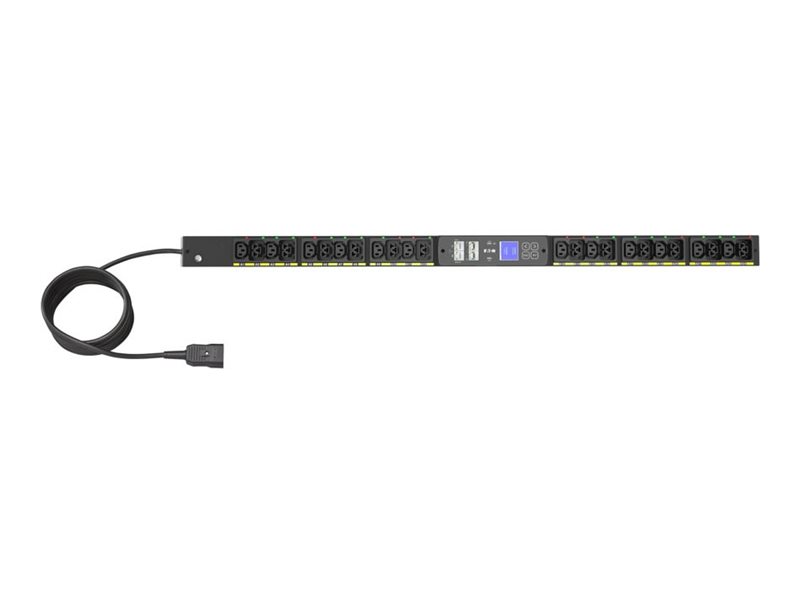

The Eaton Managed Rack PDU EVMAFC20A ensures efficient distribution of power with its ability to provide up to 3.7 kW of power, accommodating a wide range of devices within your rack setup.

Comprehensive connectivity
Featuring a variety of management interfaces including USB, Ethernet, and serial connections, alongside 24 output connectors, this PDU offers flexibility and control over your power distribution.

Advanced monitoring capabilities
With remote monitoring protocols such as HTTPS, LDAP, Modbus TCP, RestAPI, and SNMP, the Eaton Managed Rack PDU allows for precise control and monitoring, ensuring your equipment operates within safe parameters.

Robust compliance and safety
Adhering to a broad spectrum of compliance standards including RoHS, UL, and FCC Part 15 A, this power distribution unit ensures reliability and safety in a variety of operational environments.

Durable and practical design
Designed with an aluminum housing and vertical orientation, the Eaton Managed Rack PDU is not only durable but also space-efficient, making it an ideal choice for any server room or data center.



Teknisk specifikation

Typ av enhet	Kraftdistributionsenhet - kan monteras i rack
Sladdlängd	3 m
Färg	Svart

Inspänning	AC 200-240 V
Tillhandahållen frekvens	50 - 60 Hz
Ingångskablage	1-fas
Erforderlig frekvens	50 - 60 Hz
Inmatningsanslutningar	1 x ström IEC 60320 C20
Kontaktdetaljer för uteffekt	12 x power IEC 60320 C13 12 x ström IEC 60320 C19
Utspänning	50 - 60 Hz
Max elektrisk ström	16 A
Effektkapacitet	3.7 kW

Protokoll för administration på distans	SNMP, HTTPS, LDAP, RestAPI, Modbus TCP

Gränssnitt	Hantering (USB) Hantering (Ethernet) Seriell

Inkluderade tillbehör	Rackmonterande maskinvara
Medföljande kablar	Strömkabel 3 m
Rackmonteringssats	Inkluderat
Egenskaper	Vertikal orientering, aluminiumhölje, fjärrövervakning, LCD-bildskärm, överlappningsbar, med omkopplare, ineffektsmätning
Standarder som följs	EN 61000-3-2, EN 61000-3-3, CB, RoHS, WEEE, FCC Part 15 A, cTUVus, LVD, EAC, CAN ICES-3 Class A, IEC/EN 61000-6-2, IEC/EN 61000-6-4, IEC 62368-1, UL 62368-1, CM, Packaging Directive, UL 2900-1, UKCA, UKR, IEC/EN 63000, IEC 62443-4-21, CISPR 35/EN 55035

Service och support	Begränsad garanti - 3 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	60 °C

Bredd	5.2 cm
Djup	100 cm
Höjd	5.3 cm
Vikt	3.7 kg
