Produktbeskrivning

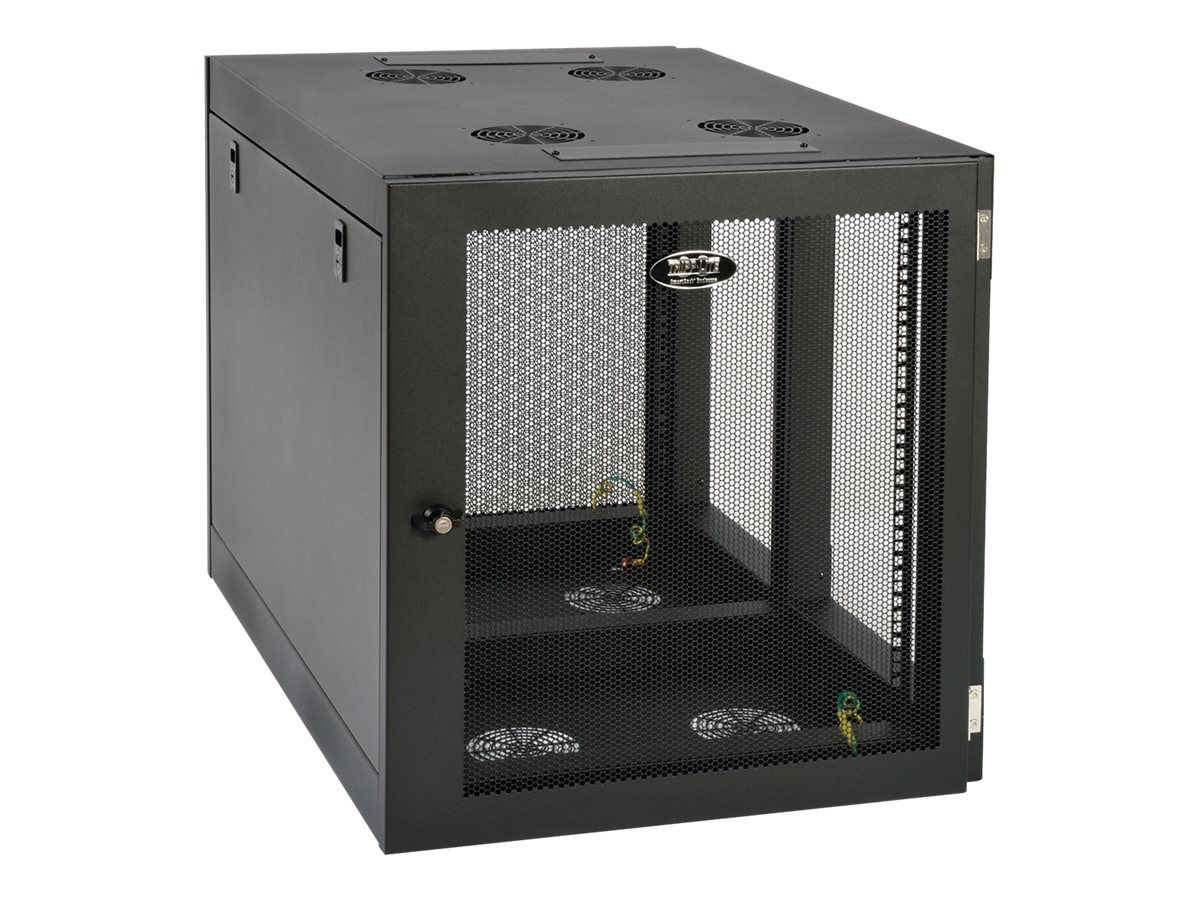

The SRW12UHD SmartRack 12U heavy-duty low-profile server-depth side mount wall mount rack enclosure cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 227 kg (500 lbs.).

Because the low-profile cabinet mounts sideways, it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels.

The removable front panel and side doors lock securely to help prevent damage, tampering or theft. The top, bottom and sides are vented, which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing.

The SRW12UHD comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments.



Innehåll i förpackning

● SRW12UHD SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet
● (20) M6 screws
● (20) M6 cage nuts
● (20) M6 washers
● (20) 12-24 screws
● (2) Keys
● Owner's manual



Teknisk specifikation

Produkttyp	Rack
Racktyp	Skåp
Placering/montering	Väggmontering
Förpackningens innehåll	20 skruvar, 20 hylsmuttrar
Stativstorlek	19"
Höjd (U-format)	12U
Bredd	91.7 cm
Djup	62.9 cm
Höjd	62.1 cm
Vikt	46 kg
Färg	Svart

Viktgräns	226.8 kg
Egenskaper	Löstagbar sidopanel, integrerad kabelhantering, ventilerade sidopaneler
Standarder som följs	EIA-310-E, NOM, RoHS

Service och support	Begränsad garanti: - 5 år
