Produktbeskrivning

Clear and Bright Image Display

The FDS1721T uses surface acoustic wave technology (SAW) which exhibits higher light transmittance compared with other touch technologies for high visibility. The full color display produces 16.7 million colors and has a high contrast ratio of 1000:1 for smooth and clear images.

Easy-to-Operate Touch Panel

With SAW technology, the screen accepts touch input from both bare and gloved hands as well as styluses, making it easy to use in factories, clean rooms, and public access areas.

Low Maintenance

SAW technology has minimal deviation of the touch point to ensure high stability and consistent touch accuracy. Touch screen recalibration can also be carried out with minimal effort.

Durable and Reliable

The screen’s non-scratch surface is made of reinforced glass to ensure that it is durable enough to withstand regular use in public access areas. In addition, the monitor is covered by a 3-year warranty, offering a long service life.

Long-Lasting LED Backlight

The monitor is equipped with a long-lasting LED backlight that lowers energy consumption and is mercury-free to reduce environmental impact.

Effective Energy Management

The monitor is compatible with EcoView NET power management software which allows you to manage the brightness and power settings of all EIZO monitors from one central location. The Auto EcoView sensor can also be configured to automatically adjust brightness according to ambient lighting. This ensures effective energy management in environments using multiple monitors.

Preset Modes for Optimum Viewing

With EIZO’s Fine Contrast function, you can choose from several preset modes for optimum viewing of a variety of applications - Text, sRGB, EyeCare, and Custom (user defined settings). EyeCare mode reduces eye fatigue in environments with little to no ambient lighting by lowering the screen’s brightness to just 3 cd/m2.

Digital and Analog Inputs

The monitor is equipped with both DVI-D and D-Sub mini 15-pin inputs for connecting to a PC with either a digital or an analog graphics board. In addition, it comes with a USB upstream port and voice input jack.

Built-in Speakers

Dual 0.5-watt stereo speakers are built into the bottom bezel for multimedia applications or audio confirmation of touch input.



Viktiga egenskaper

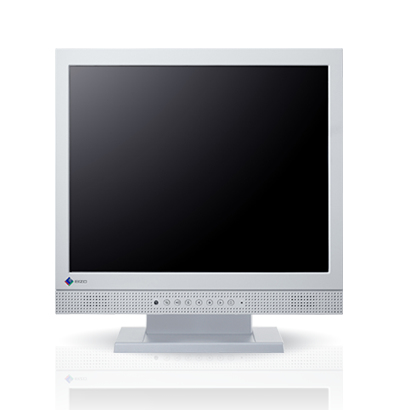

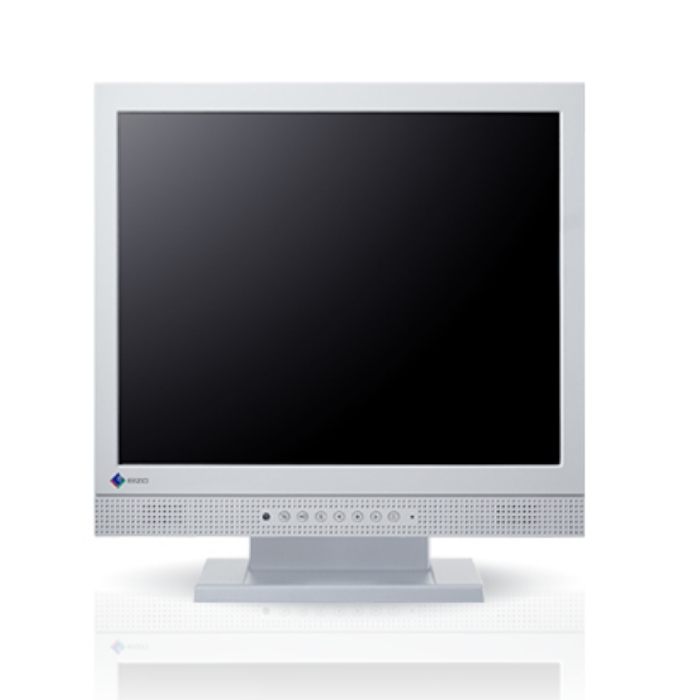

EIZO DuraVision FDS1721T. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display technology: LCD, Response time: 5 ms, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. Built-in speaker(s). VESA mounting. Product colour: Grey



Teknisk specifikation

Display diagonal	17 "
Display resolution	1280 x 1024 pixels
Display technology	LCD
Touchscreen	Yes
Touchscreen type	Table
Touchscreen technology	Surface acoustic wave
Display brightness	200 cd/m²
Response time	5 ms
Screen shape	Flat
Aspect ratio	5:4
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Viewing angle, vertical	160 °
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	31 - 80 kHz
Vertical scan range	50 - 75 Hz
Digital horizontal frequency	31 - 64 kHz
Digital vertical frequency	59 - 61 Hz
Display diagonal (metric)	43 cm
Separate H/V sync	Yes
Display sRGB	Yes

NVIDIA G-SYNC	No
AMD FreeSync	No
Windows operating systems supported	Yes

Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	1 W

Product colour	Grey
Heavy metals free	Hg (mercury)
Certification	CE, CB, cTUVus, FCC-B, ICES-003-A, TUV/S, VCCI-B, WEEE, CCC, RCM, EAC.

USB upstream port type	USB Type-B
Number of upstream ports	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
Headphone outputs	1

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
Tilt adjustment	Yes
Tilt angle range	0 - 30 °
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,SWE
Number of OSD languages	9

Power consumption (standby)	0.6 W
Power consumption (max)	29 W
Power consumption (PowerSave)	2.6 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply type	AC

Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80 %

Cables included	AC,DVI,USB,VGA
Quick start guide	Yes

Width (with stand)	380 mm
Depth (with stand)	157 mm
Height (with stand)	397.5 mm
Weight (with stand)	7500 g
Width (without stand)	380 mm
Depth (without stand)	58 mm
Height (without stand)	353 mm
Weight (without stand)	4800 g

Compliance certificates	RoHS

Dimensions (W x D x H) with stand	380 x 157 x 397.5 mm
Display viewable area (HxV)	337.9 x 270.3 mm
