Produktbeskrivning

Optimized Brightness with Auto EcoView

The Auto EcoView function is a sensor on the front of the monitor that measures ambient light and optimizes the screen's brightness to a level akin to viewing a sheet of paper under typical office lighting conditions. Since the screen is never too bright, eye strain is reduced while power consumption is cut by up to 50% compared to operating the monitor with Auto EcoView turned off and set to the default factory brightness of 100%.

IPS Panel with Wide Viewing Angles

The IPS (in-plane switching) panel offers 178° viewing angles to minimize color shift and contrast when viewing the screen at an angle. This ensures stable and consistent display when two or more people view the screen at once or in a multi-monitor environment.

Three Inputs Including DisplayPort

DisplayPort, DVI-D 24-pin, and D-Sub mini 15-pin inputs are included for connection with various graphics boards.

Viewing Comfort with an Ergonomic Stand

Adjust the screen to the most comfortable position with 100 mm height adjustment, 30° tilt, 70° swivel, and 90° rotation for portrait mode. A stand with 30° tilt only is available as an option.

Reduced Blue Light

A preset mode called “Paper” adjusts the brightness, contrast ratio, and color temperature to simulate those of printed paper. Paper mode significantly reduces the amount of blue light emitted from the screen for more comfortable viewing.

Built to Last Five Years

EIZO’s five-year warranty is two years or 67% longer than the standard three-year warranty of most brands. Even if the initial purchase price of the FlexScan S1934 is higher than another 19-inch monitor, the TCO (total cost of ownership) will likely be lower due to the significantly longer buying cycle and less need for repair.

Optional LCD Panel Protector

The FP-1901 protector fits easily between the LCD screen and bezel, has a light transmission rate of more than 90%, and includes both an anti-glare coating side to reduce light reflection and a glossy side for crisper, more vibrant images.



Viktiga egenskaper

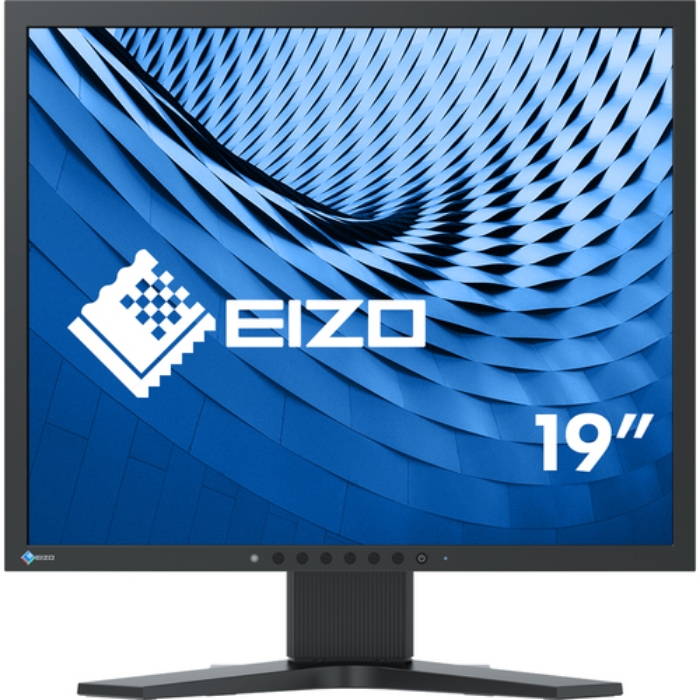

EIZO FlexScan S1934H-BK. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LCD, Response time: 14 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting, Height adjustment. Product colour: Black



Teknisk specifikation

Display diagonal	19 "
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LCD
Touchscreen	No
HD type	SXGA
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	14 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Pixel pitch	0.293 x 0.293 mm
Pixel density	87 ppi
Horizontal scan range	31 - 64 kHz
Vertical scan range	55 - 61 Hz
Viewable size, horizontal	374.8 mm
Viewable size, vertical	299.8 mm
Viewable size diagonal	481 mm
Colour gamut standard	sRGB

NVIDIA G-SYNC	No
AMD FreeSync	No
Low Blue Light technology	Yes

Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2

Market positioning	Office
Product colour	Black
Feet colour	Black
Certification	TCO, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, RoHS, CCC, EAC

Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI	No
DisplayPorts quantity	1
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	Yes

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	100 mm
Pivot	Yes
Pivot angle	0 - 90 °
Swivelling	Yes
Swivel angle range	-35 - 35 °
Tilt adjustment	Yes
Tilt angle range	0 - 30 °
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,SWE
Number of OSD languages	9

Energy efficiency class (SDR)	C
Energy consumption (SDR) per 1000 hours	9 kWh
Power consumption (typical)	9.4 W
Power consumption (standby)	0.5 W
Power consumption (max)	21 W
Power consumption (off)	0.1 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %

Stand included	Yes
Cables included	AC,Audio (3.5mm),DVI,VGA
Quick start guide	Yes

Width (with stand)	405 mm
Depth (with stand)	205 mm
Height (with stand)	506.5 mm
Weight (with stand)	5600 g
Width (without stand)	405 mm
Depth (without stand)	61.5 mm
Height (without stand)	334 mm
Weight (without stand)	3800 g

Sustainability certificates	ENERGY STAR

Harmonized System (HS) code	85285210

Warranty period	5 year(s)

Automatic brightness control	Yes
Look-up table (LUT) bit depth	10
