Viktiga egenskaper

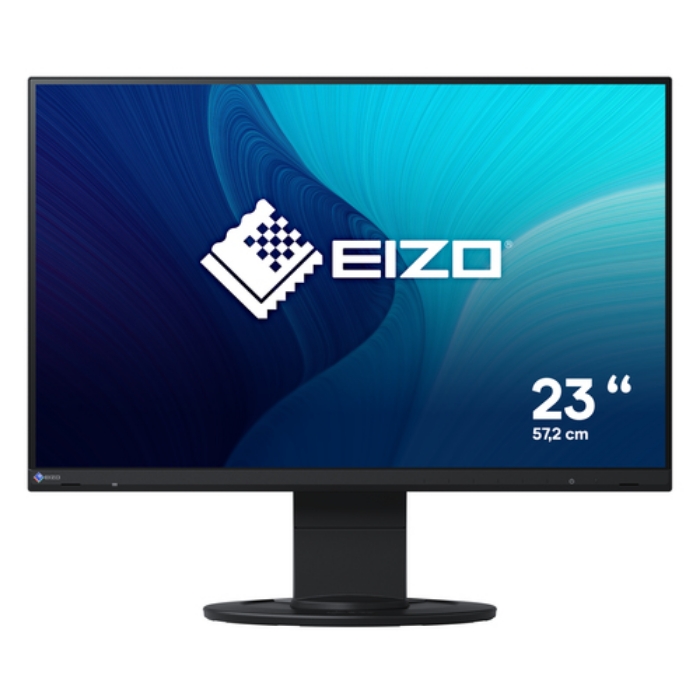

EIZO FlexScan EV2360-BK. Display diagonal: 57.1 cm (22.5"), Display resolution: 1920 x 1200 pixels, HD type: WUXGA, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black



Teknisk specifikation

Display diagonal	22.5 "
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Pixel pitch	0.254 x 0.248 mm
Pixel density	101 ppi
Horizontal scan range	31 - 75.5 kHz
Vertical scan range	59 - 61 Hz
Viewable size, horizontal	488.2 mm
Viewable size, vertical	297.2 mm
Viewable size diagonal	572 mm
Colour gamut standard	sRGB

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	2 W

Market positioning	Office
Product colour	Black
Feet colour	Black
Certification	CE, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 9, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, BIS,

Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
Number of USB Type-B upstream ports quantity	1
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	Yes

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	Yes
Adjustable height (max)	140 mm
Pivot	Yes
Pivot angle	-90 - 90 °
Swivelling	Yes
Swivel angle range	0 - 344 °
Tilt adjustment	Yes
Tilt angle range	-5 - 35 °
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,SWE

Energy efficiency class (SDR)	C
Energy consumption (SDR) per 1000 hours	11 kWh
Power consumption (typical)	10.5 W
Power consumption (standby)	0.5 W
Power consumption (max)	37 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %

Stand included	Yes
Cables included	AC,DisplayPort,USB Type-A to USB Type-B
Quick start guide	Yes

Width (with stand)	499 mm
Depth (with stand)	233 mm
Height (with stand)	333.9 mm
Weight (with stand)	5500 g
Width (without stand)	499 mm
Depth (without stand)	53.6 mm
Height (without stand)	321.3 mm
Weight (without stand)	3400 g

Sustainability certificates	ENERGY STAR,EPEAT Climate +,EPEAT Silver,TCO
Sustainability compliance	Yes

Harmonized System (HS) code	85285210

Compliance certificates	BIS,BSMI,CB,CCC,CE,China RoHS,EAC,Federal Communications Commission (FCC),ICES,PSE,RCM,RoHS,cTUVus,VCCI,WEEE
Warranty period	5 year(s)

Automatic brightness control	Yes
Look-up table (LUT) bit depth	10
