Produktbeskrivning

The ColorEdge CS2400R is the most affordable entry into the world of maximum precision: the panel offers full coverage of the sRGB and Rec 709 colour spaces. The Digital Uniformity Equalizer (DUE) ensures homogeneous image representation and the 16-bit look-up table guarantees absolutely precise colour representation with up to 10 bits. On the one hand, the exact factory calibration guarantees the highest precision "out of the box". On the other hand, the regularly recommended recalibration is done in no time at all. This means that photographers, filmmakers or image editors can always rely on their monitor to show them an absolutely precise view of their image file. The docking functions via USB-C allow the image signal to be transferred and the monitor’s USB hub to be powered with just one cable. In addition, a mobile device can be supplied with up to 70 watts of charging current. In this way, the CS2400S becomes the central dock of the creative workflow with a flick of the wrist. Alternatively, the monitor can of course also be operated via HDMI or DisplayPort as well as USB-B upstream.



Viktiga egenskaper

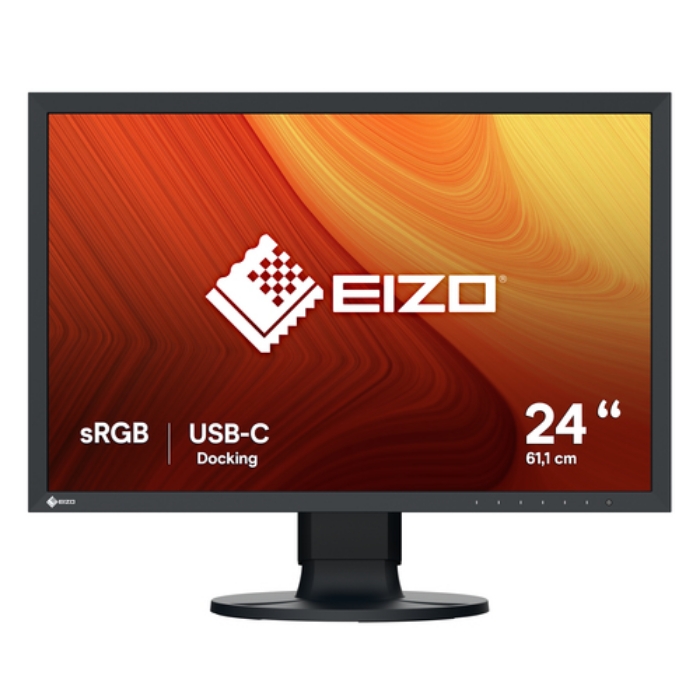

EIZO ColorEdge CS2400R. Display diagonal: 61.2 cm (24.1"), Display resolution: 1920 x 1200 pixels, HD type: WUXGA, Display technology: LCD, Response time: 14 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black



Teknisk specifikation

Display diagonal	24.1 "
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	300 cd/m²
Response time	14 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1920 x 1200 (WUXGA),1920 x 1080 (HD 1080)
Supported video modes	1080p,1080i,720p,576p,576i,480p,480i
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.27 x 0.27 mm
Pixel density	94 ppi
Horizontal scan range	15 - 76 kHz
Vertical scan range	23 - 61 Hz
Viewable size, horizontal	518.4 mm
Viewable size, vertical	324 mm
Display diagonal (metric)	61.1 cm
Colour depth	10 bit
Colour gamut standard	sRGB
sRGB coverage (typical)	100 %
Hardware calibration	Yes

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes

Built-in speaker(s)	No
Built-in camera	No

Market positioning	Photo editing
Product colour	Black
Feet colour	Black
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, RoHS, WEEE, China RoHS, CCC

Built-in USB hub	Yes
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B,USB Type-C
Number of upstream ports	2
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	70 W
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Built-in KVM switch	Yes
HDCP	Yes

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	155 mm
Pivot	Yes
Pivot angle	0 - 90 °
Swivelling	Yes
Swivel angle range	0 - 344 °
Tilt adjustment	Yes
Tilt angle range	-5 - 35 °
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	DEU,ENG,ESP,FRE,ITA,SWE
Number of OSD languages	6

Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	19 kWh
Power consumption (typical)	15 W
Power consumption (standby)	0.3 W
Power consumption (max)	134 W
Power consumption (off)	0.3 W
Power consumption (PowerSave)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %

Stand included	Yes
Cables included	AC,HDMI,USB Type-A to USB Type-B,USB Type-C to USB Type-C
Quick start guide	Yes

Width (with stand)	554 mm
Depth (with stand)	245 mm
Height (with stand)	396 mm
Weight (with stand)	8100 g
Width (without stand)	554 mm
Depth (without stand)	64 mm
Height (without stand)	362 mm
Weight (without stand)	5100 g

Harmonized System (HS) code	85285210

Warranty period	5 year(s)

Look-up table (LUT) bit depth	16
