Viktiga egenskaper

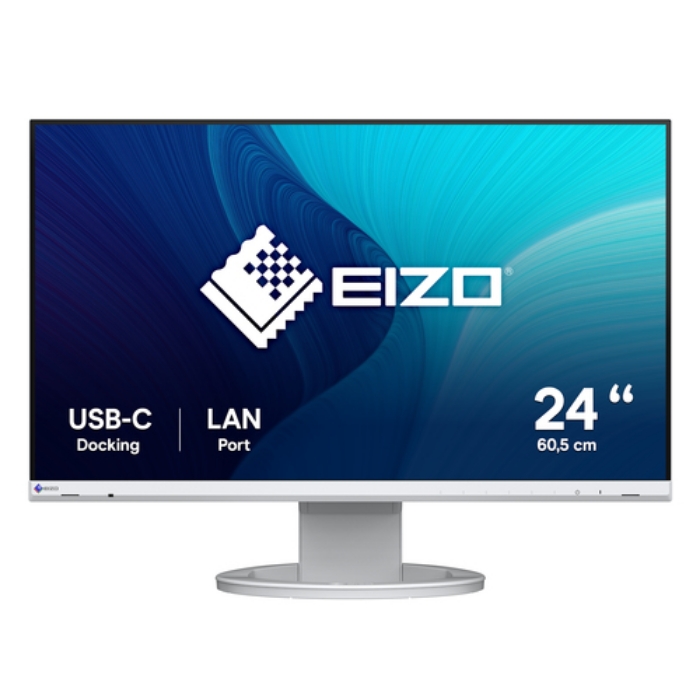

EIZO FlexScan EV2490-WT. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: White



Teknisk specifikation

Display diagonal	23.8 "
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),720 x 400,1280 x 1024 (SXGA),800 x 600 (SVGA),640 x 480 (VGA),1024 x 768 (XGA)
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.67 billion colours
Pixel pitch	0.275 x 0.275 mm
Pixel density	93 ppi
Horizontal scan range	31 - 68 kHz
Vertical scan range	59 - 61 Hz
Viewable size, horizontal	527 mm
Viewable size, vertical	296 mm
Display diagonal (metric)	60.5 cm
Colour gamut standard	sRGB

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	2 W

Market positioning	Office
Product colour	White
Feet colour	White
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 10, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC

Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B,USB Type-C
Number of upstream ports	2
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	70 W
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Built-in KVM switch	Yes
HDCP	Yes

Ethernet LAN	Yes

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Height adjustment	Yes
Adjustable height (max)	191.2 mm
Pivot	Yes
Pivot angle	-90 - 90 °
Swivelling	Yes
Swivel angle range	0 - 344 °
Tilt adjustment	Yes
Tilt angle range	-5 - 35 °
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	DEU,ENG,ESP,FRE,ITA,SWE

Energy efficiency class (SDR)	C
Energy consumption (SDR) per 1000 hours	9 kWh
Power consumption (typical)	11 W
Power consumption (standby)	0.5 W
Power consumption (max)	155 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %

Stand included	Yes
Cables included	AC,USB Type-C to USB Type-C
Quick start guide	Yes

Width (with stand)	537.8 mm
Depth (with stand)	230 mm
Height (with stand)	523.6 mm
Weight (with stand)	7200 g
Width (without stand)	531 mm
Depth (without stand)	54 mm
Height (without stand)	344 mm
Weight (without stand)	4500 g

Sustainability certificates	ENERGY STAR,EPEAT Climate +,EPEAT Gold,TCO
Sustainability compliance	Yes

Harmonized System (HS) code	85285210

Warranty period	5 year(s)
Compliance certificates	CB,CCC,CE,China RoHS,Federal Communications Commission (FCC),GS mark,ICES,PSE,RCM,RoHS,cTUVus,UKCA,VCCI,WEEE

Automatic brightness control	Yes
Look-up table (LUT) bit depth	10
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
