Produktbeskrivning
Energy-saving, ergonomic, reliable: the EV2460 offers a wide range of connection options thanks to DisplayPort, HDMI, DVI-D and D-Sub signal inputs as well as four USB downstream ports. The EV2460 caters for sophisticated computer workstations with the highest demands. Image quality and ergonomics are equally convincing. With a resolution of 1920 x 1080 pixels, an IPS LCD panel with an antireflective surface, this display excels at detailed, crystal-clear image reproduction.
Viktiga egenskaper

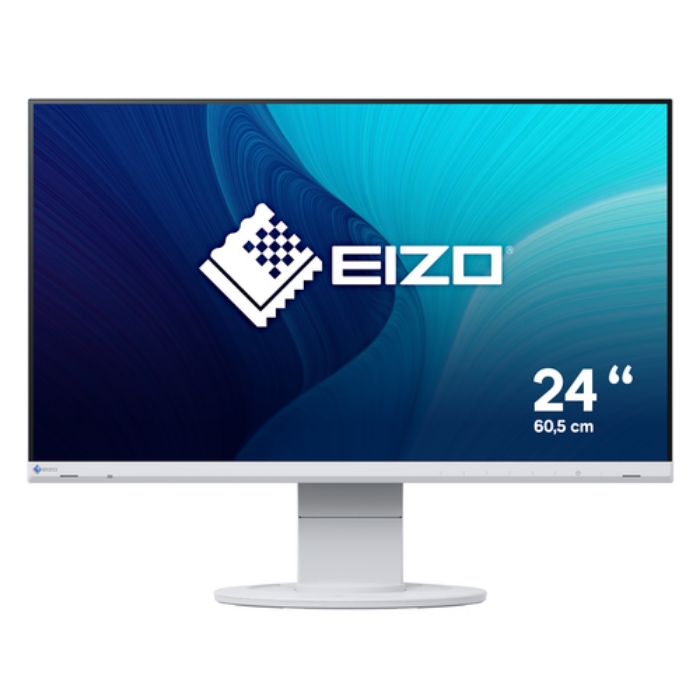

EIZO FlexScan EV2460-WT. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: White
Teknisk specifikation
Display
| Display diagonal | 23.8 " |
|---|
| Display resolution | 1920 x 1080 pixels |
|---|
| Native aspect ratio | 16:9 |
|---|
| Display technology | LCD |
|---|
| Touchscreen | No |
|---|
| HD type | Full HD |
|---|
| Panel type | IPS |
|---|
| LED backlight | Yes |
|---|
| Backlight type | W-LED |
|---|
| Display brightness (typical) | 250 cd/m² |
|---|
| Response time | 5 ms |
|---|
| Anti-glare screen | Yes |
|---|
| Screen shape | Flat |
|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
|---|
| Contrast ratio (typical) | 1000:1 |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| Viewing angle, horizontal | 178 ° |
|---|
| Viewing angle, vertical | 178 ° |
|---|
| Display number of colours | 16.78 million colours |
|---|
| Pixel pitch | 0.2745 x 0.2745 mm |
|---|
| Pixel density | 93 ppi |
|---|
| Horizontal scan range | 31 - 68 kHz |
|---|
| Vertical scan range | 59 - 61 Hz |
|---|
| Viewable size, horizontal | 527 mm |
|---|
| Viewable size, vertical | 296.5 mm |
|---|
| Digital horizontal frequency | 31 - 68 kHz |
|---|
| Digital vertical frequency | 51 - 59 Hz |
|---|
| Colour gamut standard | sRGB |
|---|
Performance
| NVIDIA G-SYNC | No |
|---|
| AMD FreeSync | No |
|---|
| Flicker-free technology | Yes |
|---|
| Low Blue Light technology | Yes |
|---|
Multimedia
| Built-in speaker(s) | Yes |
|---|
| Built-in camera | No |
|---|
| Number of speakers | 2 |
|---|
| RMS rated power | 2 W |
|---|
Design
| Market positioning | Office |
|---|
| Product colour | White |
|---|
| Feet colour | White |
|---|
| Certification | CE, UKCA, CB, C-Tick, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 9, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China Ro |
|---|
Ports & interfaces
| Built-in USB hub | Yes |
|---|
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
|---|
| USB upstream port type | USB Type-B |
|---|
| Number of upstream ports | 1 |
|---|
| Number of USB Type-B upstream ports quantity | 1 |
|---|
| USB Type-A downstream ports quantity | 4 |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|
| DVI port | Yes |
|---|
| DVI-D ports quantity | 1 |
|---|
| HDMI | Yes |
|---|
| HDMI ports quantity | 1 |
|---|
| DisplayPorts quantity | 1 |
|---|
| Headphone out | Yes |
|---|
| Headphone outputs | 1 |
|---|
| Headphone connectivity | 3.5 mm |
|---|
| HDCP | Yes |
|---|
Ergonomics
| VESA mounting | Yes |
|---|
| Panel mounting interface | 100 x 100 mm |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Height adjustment | Yes |
|---|
| Adjustable height (max) | 140 mm |
|---|
| Pivot | Yes |
|---|
| Pivot angle | -90 - 90 ° |
|---|
| Swivelling | Yes |
|---|
| Swivel angle range | 0 - 344 ° |
|---|
| Tilt adjustment | Yes |
|---|
| Tilt angle range | -5 - 35 ° |
|---|
| On Screen Display (OSD) | Yes |
|---|
| On Screen Display (OSD) languages | CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,SWE |
|---|
Power
| Energy efficiency class (SDR) | B |
|---|
| Energy consumption (SDR) per 1000 hours | 9 kWh |
|---|
| Power consumption (typical) | 9 W |
|---|
| Power consumption (standby) | 0.5 W |
|---|
| Power consumption (max) | 50 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Energy efficiency scale | A to G |
|---|
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
Packaging content
| Stand included | Yes |
|---|
| Cables included | AC,DisplayPort,USB Type-A to USB Type-B |
|---|
| Quick start guide | Yes |
|---|
Weight & dimensions
| Width (with stand) | 537.8 mm |
|---|
| Depth (with stand) | 233 mm |
|---|
| Height (with stand) | 333.6 mm |
|---|
| Weight (with stand) | 5900 g |
|---|
| Width (without stand) | 537.8 mm |
|---|
| Depth (without stand) | 53.6 mm |
|---|
| Height (without stand) | 350.4 mm |
|---|
| Weight (without stand) | 3800 g |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR,EPEAT Climate +,EPEAT Silver,TCO |
|---|
| Sustainability compliance | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 85285210 |
|---|
Technical details
| Warranty period | 5 year(s) |
|---|
| Compliance certificates | C-TICK,CB,CCC,CE,China RoHS,Federal Communications Commission (FCC),ICES,PSE,RCM,RoHS,cTUVus,UKCA,VCCI,WEEE |
|---|
Other features
| Automatic brightness control | Yes |
|---|
| Look-up table (LUT) bit depth | 10 |
|---|
