Produktbeskrivning

The CS2731 unites precision, colour fidelity and cutting-edge connectivity thanks to its USB-C port. This makes the monitor the central interface for the graphic workflow of sophisticated creatives with high standards. The wide gamut, 16-bit look-up-table and precise factory calibration of the CS2731 allows you to enjoy an unadulterated look at your image files in creative workflows requiring high colour accuracy. Convenient functionalities such as monitor signal transmission, rapid data transfer and the power supply feature for connected devices are enabled with just one USB-C port.



Viktiga egenskaper

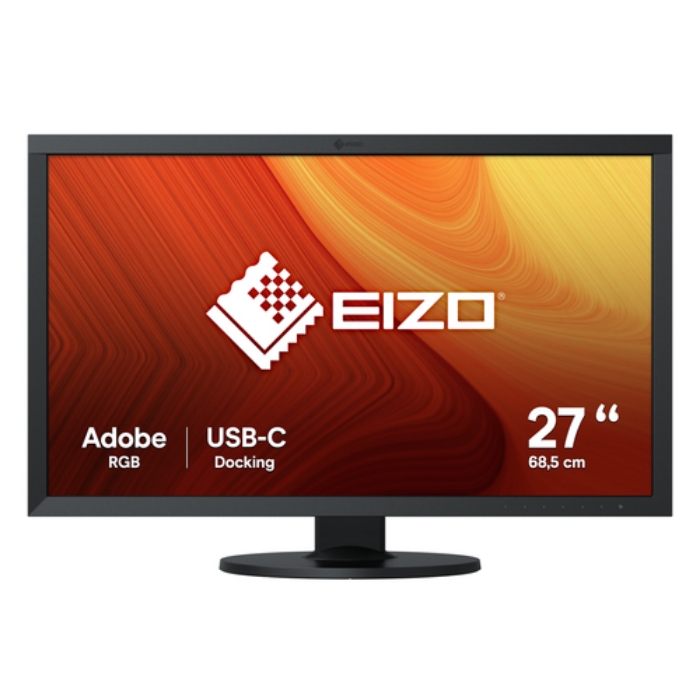

EIZO ColorEdge CS2731. Display diagonal: 68.6 cm (27"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LCD, Response time: 16 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black



Teknisk specifikation

Display diagonal	27 "
Display resolution	2560 x 1440 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Quad HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	350 cd/m²
Response time	16 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	2560 x 1440,1920 x 1200 (WUXGA)
Supported video modes	1080p,1080i,720p,576p,576i,480p,480i
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.073 billion colours
Pixel pitch	0.233 x 0.233 mm
Pixel density	109 ppi
Viewable size, horizontal	596.7 mm
Viewable size, vertical	335.7 mm
Digital horizontal frequency	15 - 89 kHz
Digital vertical frequency	23 - 61 Hz
Colour depth	10 bit
Colour gamut standard	Adobe RGB,DCI-P3,sRGB
sRGB coverage (typical)	100 %
Adobe RGB coverage	99 %
Hardware calibration	Yes

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes

Built-in speaker(s)	No
Built-in camera	No

Market positioning	Photo editing
Product colour	Black
Feet colour	Black
Certification	CE, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241- 307), cTÜVus, TÜV/S, EAC, PSE, FCC-B, CAN ICES-3 (B), RCM, VCCI-B, CCC, RoHS, China RoHS, WEEE

Built-in USB hub	Yes
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B,USB Type-C
Number of upstream ports	2
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	60 W
VGA (D-Sub) ports quantity	0
DVI port	Yes
DVI-D ports quantity	1
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Built-in KVM switch	Yes
HDCP	Yes

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	155 mm
Pivot	Yes
Pivot angle	-90 - 90 °
Swivelling	Yes
Swivel angle range	0 - 344 °
Tilt adjustment	Yes
Tilt angle range	-5 - 35 °
On Screen Display (OSD)	Yes

Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	35.7 kWh
Power consumption (typical)	35.7 W
Power consumption (standby)	0.5 W
Power consumption (max)	159 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %

Stand included	Yes
Cables included	AC,HDMI,USB Type-C to USB Type-C
Quick start guide	Yes

Width (with stand)	638 mm
Depth (with stand)	265 mm
Height (with stand)	404.1 mm
Weight (with stand)	10100 g
Width (without stand)	638 mm
Depth (without stand)	75 mm
Height (without stand)	378.2 mm
Weight (without stand)	6500 g

Harmonized System (HS) code	85285210

Warranty period	5 year(s)
Compliance certificates	RoHS

DCI-P3 coverage	95 %
Look-up table (LUT) bit depth	16
