Produktbeskrivning

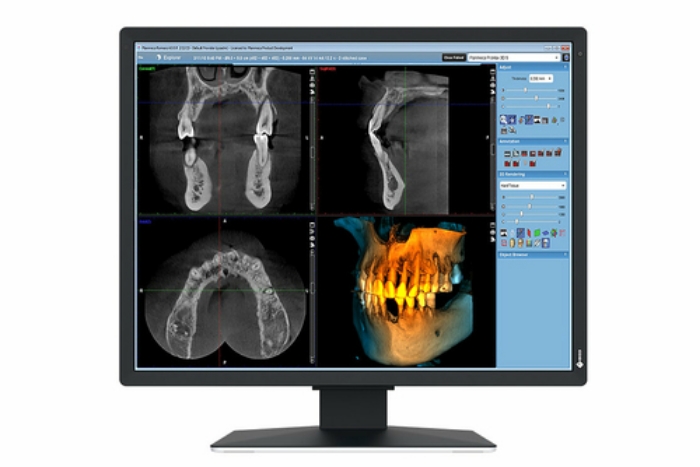

2-megapixel colour monitor for cross-sectional image diagnosis (CT/MRI) and reporting of dental radiographs in diagnostic rooms (room class 5). 240 cd/m2 calibrated brightness and DICOM®-GSDF luminance characteristic.

Excellent image quality for the finest details
Thanks to the high 2 Megapixels (colour) resolution, a strong contrast ratio of 1800:1 and stable brightness of up to 500 cd/m2, the monitor offers excellent image quality. Even the differences between the finest details are shown – regardless of your viewing angle. This is a great advantage if multiple physicians are looking at the screen.

Observe monochrome and color images on a single monitor
The hybrid gamma PXL functionality automatically differentiates between monochrome and colour images, pixel by pixel. This creates a hybrid display on which each pixel is displayed with the ideal tone value. In this way, a high level of precision and reliability is achieved.

The MX217-SB displays sophisticated monochrome images just as reliably as color images from various modalities. In practice, this means a significant increase in efficiency, as images from different imaging procedures can be displayed on just one monitor.

Blur reduction
LCD panels with a high brightness level tend to have more blurry image rendering thanks to over-framing than would be possible in comparison with an acquired exposure. Therefore, EIZO offers blur reduction anchored in monitor hardware. It retrieves details lost in the contours on the screen, meaning that the image is rendered as clearly as possible.

One billion color tones thanks to 13 bit LUT
Color rendering is controlled by a 13 bit look-up table (LUT), up to 10 bits of which are available in the DisplayPort connection. This produces a resolution with a maximum of 1 billion color tones. The rendering characteristic and fine structures required for diagnostics can therefore be precisely identified.

Uniform brightness and high color purity
The monitor shines thanks to its high color purity and uniform illumination. This is down to the Digital Uniformity Equalizer (DUE), which corrects imbalances automatically, pixel by pixel. Gray and color tones of radiological and other medical images are correctly rendered over the entire display. This is essential for precise image reproduction.

Consistent image quality thanks to integrated luminance sensor
The precise calibration of white point and tone value characteristic curve is provided by an integrated luminance sensor. This measures the brightness and grayscales and calibrates the monitor autonomously according to the DICOM® standard. The sensor works automatically, without restricting the field of vision of the monitor. You can save the costs, time, and effort of maintenance and rely on a consistently balanced image quality.

Constant brightness during operation
A sensor for the backlight permanently determines the luminance of the monitor. The benefit: The defined and calibrated values are rendered exactly just seconds after the monitor is turned on and remain constant during the entire period of use. The sensor is invisibly integrated in the monitor.

FDA clearance
The MX217-SB holds the FDA-510(k)- clearance for general radiography, but it does not support display of mammography images for diagnosis.

The Work-and-Flow technology
With the increasing digitisation of modalities, radiologists are confronted with a growing amount of information on their screens. EIZO's unique work-and-flow technology, with new features designed to meet the needs of radiologists, effectively counters the complexity of data. The RadiForce MX217-SB and RadiCS-LE software solution enable you to benefit from the Work-and-Flow functions.

Point-and-Focus: all eyes on the analysis
The Point-and-Focus function allows you to select and focus on relevant image areas quickly using your mouse or keyboard. By adjusting the brightness and greyscale, the interesting parts of an image are highlighted by dimming the surrounding areas.

RadiCS LE
Brightness and DICOM® characteristic curve can be checked using the RadiCS LE software and automatically calibrated according to the factory default settings. The integrated sensor in the device takes care of this. The calibration of other tone value curves, such as CIE, is also possible with RadiCS LE.

Image rotation plus: Always in the right position
The MX217-SB can be operated in both portrait and landscape format. The ‘Image Rotation Plus’ function, included in the RadiCS LE software provided, rotates the displayed image automatically depending on the position of the monitor. (This function only works if supported by the graphics board.)

In addition, the flexible stand guarantees optimal ergonomics. You can tilt the monitor or lower it down to desk level.

Efficient multi-display solution
Thanks to the signal input and output, you can link several RadiForce monitors through their DisplayPort interface. This means that you can realise multi-monitor solutions with the greatest of ease – without labourious and excessive cabling.

Display of DICOM® characteristic at the press of a button
EIZO measures and adjusts each tone of grey carefully so that the monitors comply with the DICOM® standard when delivered from the factory. The result is a particularly consistent gradation of grey tones, allowing for optimal radiological clinical reviews.

RadiLight: Eye-friendly comfort light
EIZO offers a brand-new, easy-to-operate comfort light for radiologists who work in dark diagnosis rooms. The soft illuminance in the background of the screen reduces the strain on the eyes that frequently occurs due to constant light-dark changes between bright screens and objects in a dark environment.

Environmentally friendly packaging
For the packaging of the MX217-SB, EIZO uses a padding made of moulded pulp cellulose. The material is made from recycled cardboard and paper and has a much lower environmental impact when disposed of than traditional polystyrene or plastic. All cables are stored in a cardboard compartment instead of being individually packed in plastic bags.

Socially responsible production
The MX217-SB is produced in a socially responsible way. It is free of child labour and forced labour. Suppliers along the supply chain have been carefully selected and they have also committed themselves to produce in a socially responsible way. This applies in particular to conflict minerals. We present a detailed report about our social responsibility annually and voluntarily.

Environmentally and climate friendly
Each MX217-SB is manufactured in our own factory, which implements an environmental and energy management system in accordance with ISO 14001 und ISO 50001. This includes measures to reduce waste, wastewater and emissions, resource and energy consumption, as well as to encourage environmentally conscious behavior among employees. We publicly report on these measures on an annual basis.

Sustainable and durable
The MX217-SB is designed to have a long service life and normally outlasts the warranty period by some distance. Replacement parts are available many years after production has ceased. The entire lifecycle takes into account the impact on the environment as the longevity of the product and the fact it can be repaired saves resources and protects the environment. When designing the MX217-SB, we took a minimalistic approach to our resources by using high-quality components and materials, as well as a careful production process.

Environmentally friendly use of materials
The MX217-SB consists of approximately 19% recycled plastic. This reduces the amount of plastic waste entering the environment, conserves resources and promotes the reuse of materials to preserve natural ecosystems.

Five-year warranty
EIZO grants a five-year warranty. This is possible thanks to the highly developed production process based on a simple principle of success: sophisticat.

EIZO Graphics card MED-XN43
The EIZO graphics card supports the properties, functions, and settings of the RadiForce MX217-SB optimally. It enables precise diagnosis and can control several monitors simultaneously. EIZO offers technical support and warranty service for the graphics card.



Viktiga egenskaper

EIZO RadiForce MX217-SB. Display diagonal: 53.3 cm (21"), Display resolution: 1200 x 1600 pixels, HD type: UXGA, Display technology: LCD, Native aspect ratio: 3:4. Built-in USB hub, USB hub version: 2.0. VESA mounting, Height adjustment. Product colour: Black



Teknisk specifikation

Display diagonal	21 "
Display resolution	1200 x 1600 pixels
Native aspect ratio	3:4
Display technology	LCD
Touchscreen	No
HD type	UXGA
Panel type	IPS
LED backlight	Yes
Display brightness (typical)	500 cd/m²
Screen shape	Flat
Contrast ratio (typical)	1800:1
Display number of colours	1.07 billion colours
Pixel pitch	0.27 x 0.27 mm
Viewable size, horizontal	324 mm
Viewable size, vertical	432 mm
Digital horizontal frequency	31 - 100 kHz
Digital vertical frequency	59 - 61 Hz
Display diagonal (metric)	54 cm
Colour depth	13 bit

NVIDIA G-SYNC	No
AMD FreeSync	No

Built-in speaker(s)	No
Built-in camera	No

Market positioning	Medical
Product colour	Black
Certification	CE (Medical Device), UKCA (Medical Device), ANSI/AAMI ES60601-1, CSA C22.2 Nr. 601-1, EN60601-1, IEC60601-1, RCM, FCC-B, CAN ICES-3 (B), VCCI-B, RoHS, WEEE, China RoHS, CCC

Built-in USB hub	Yes
USB hub version	2.0
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	2
DVI-D ports quantity	1
HDMI	No
DisplayPort out quantity	2
Headphone out	No
HDCP	Yes
HDCP version	1.2

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	Yes
Adjustable height (max)	90 mm
Pivot	Yes
Swivelling	Yes
Tilt adjustment	Yes
Tilt angle range	5 - 30 °
On Screen Display (OSD)	Yes

Energy efficiency class (SDR)	Not available
Energy efficiency class (HDR)	Not available
Power consumption (typical)	23 W
Power consumption (standby)	0.6 W
Power consumption (max)	54 W
AC input voltage	100 - 240 V
AC input frequency	50/65 Hz

Width (with stand)	357 mm
Depth (with stand)	200 mm
Height (with stand)	482 mm
Weight (with stand)	7300 g
