Produktbeskrivning

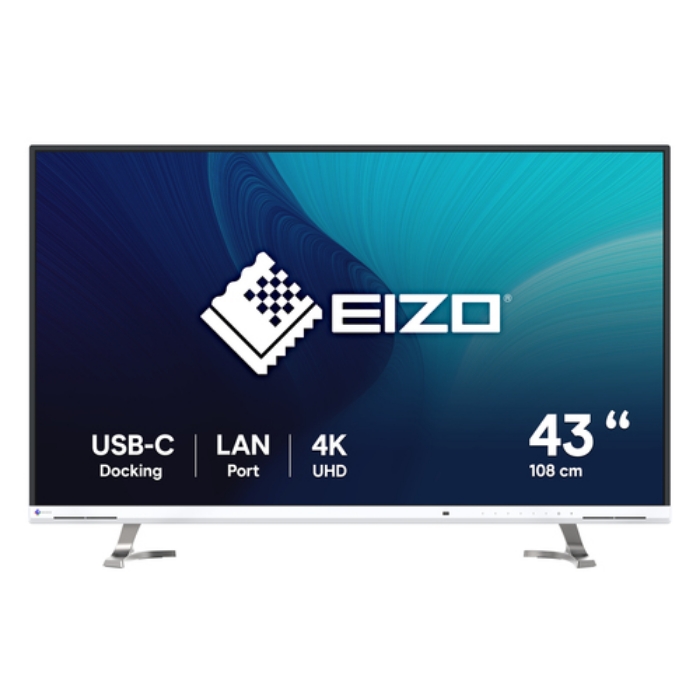

With a 42.5 inch screen diagonal, the EIZO FlexScan EV4340X is ideal for use in control rooms, control centers, trading floors or similar work environments: Its 4K resolution (3840 x 2160 pixels) offers four times as much information as a Full HD monitor. In addition to two HDMI inputs and a DisplayPort connection, the monitor has full USB-C docking functionality including DisplayPort Alt Mode, transmission of video, audio and USB data signals and a power supply of up to 94 watts. The EV4340X also masters operation with multiple computers or image sources with ease. The integrated KVM switch allows the use of a keyboard and mouse combination on two computers. Thanks to its picture-in-picture (PbP) function, the monitor can display up to four video signals side by side. The button on the front can be used to conveniently switch between 12 available layouts. The picture-in-picture (PiP) function for two signal sources offers efficient screen utilization for presentations and meetings. These and other important functions can be controlled on the monitor or via the supplied remote control. Therefore, the EIZO FlexScan EV4340X is also well suited for wall mounting when buttons on the device are not accessible. Its slim design makes grouping in multi-screen systems particularly easy.



Viktiga egenskaper

EIZO FlexScan EV4340X-WT. Display diagonal: 108 cm (42.5"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: White



Teknisk specifikation

Display diagonal	42.5 "
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	350 cd/m²
Response time	5 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,3840 x 2160
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Pixel pitch	0.245 x 0.245 mm
Pixel density	104 ppi
Viewable size, horizontal	941.2 mm
Viewable size, vertical	529.4 mm
Digital horizontal frequency	31 - 134 kHz
Digital vertical frequency	29 - 61 Hz
Display diagonal (metric)	108 cm
Colour gamut standard	sRGB

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	8 W

Market positioning	Office
Product colour	White
Feet colour	Silver
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EPEAT 2018

Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B,USB Type-C
Number of upstream ports	1
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	2
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	94 W
HDMI	Yes
HDMI ports quantity	2
DisplayPorts quantity	1
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Built-in KVM switch	Yes
HDCP	Yes
HDCP version	1.4/2.3

Ethernet LAN	Yes

VESA mounting	Yes
Panel mounting interface	100 x 100,200 x 200 mm
Height adjustment	No
Picture-in-Picture	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	DEU,ENG,ESP,FRE,ITA,SWE

Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	31 kWh
Power consumption (typical)	31 W
Power consumption (standby)	0.4 W
Power consumption (max)	243 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %

Stand included	Yes
Cables included	AC,DisplayPort,USB Type-A to USB Type-B,USB Type-C to USB Type-C
Remote control included	Yes
Quick start guide	Yes

Width (with stand)	966.8 mm
Depth (with stand)	225.3 mm
Height (with stand)	631 mm
Weight (with stand)	15900 g
Width (without stand)	966.8 mm
Depth (without stand)	89.9 mm
Height (without stand)	571 mm
Weight (without stand)	15200 g

Sustainability certificates	ENERGY STAR,EPEAT Climate +,EPEAT Silver,TCO
Sustainability compliance	Yes

Harmonized System (HS) code	85285210

Compliance certificates	CB,CCC,CE,China RoHS,Federal Communications Commission (FCC),ICES,PSE,RCM,RoHS,TÜV mark,UKCA,VCCI
Warranty period	5 year(s)

Picture-by-Picture (PbP)	Yes
Automatic brightness control	Yes
Look-up table (LUT) bit depth	14
Ethernet LAN (RJ-45) ports	1
