Viktiga egenskaper

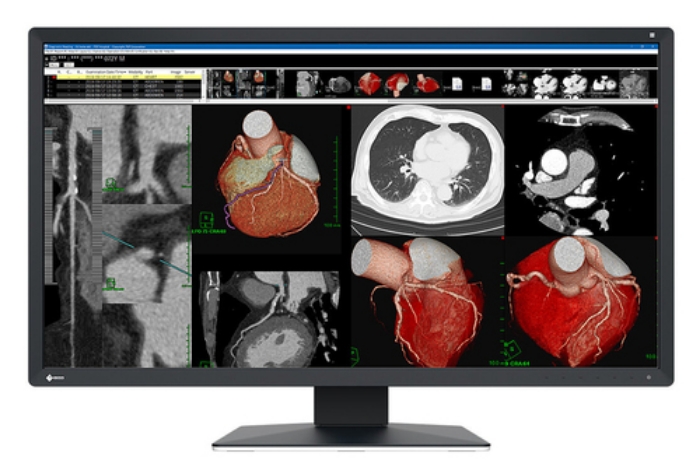

EIZO RadiForce MX317W. Display diagonal: 77.5 cm (30.5"), Display resolution: 4096 x 2160 pixels, HD type: 4K DCI, Display technology: LCD, Response time: 25 ms, Native aspect ratio: 17:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting, Height adjustment. Product colour: Black



Teknisk specifikation

Display diagonal	30.5 "
Display resolution	4096 x 2160 pixels
Native aspect ratio	17:9
Display technology	LCD
Touchscreen	No
HD type	4K DCI
Panel type	IPS
LED backlight	Yes
Display brightness (typical)	550 cd/m²
Response time	25 ms
Screen shape	Flat
Contrast ratio (typical)	1800:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.1674 x 0.1674 mm
Viewable size, horizontal	685.7 mm
Viewable size, vertical	361.6 mm
Digital horizontal frequency	31 - 134 kHz
Digital vertical frequency	59 - 61 Hz
Display diagonal (metric)	77.5 cm
Colour depth	13 bit

NVIDIA G-SYNC	No
AMD FreeSync	No

Built-in speaker(s)	No
Built-in camera	No

Market positioning	Medical
Product colour	Black
Feet colour	Black
Certification	CE (Medical Device), UKCA (Medical Device), ANSI/AAMI ES60601-1, CSA C22.2 Nr. 601-1, EN60601-1, IEC60601-1, CB, RCM, FCC-B, CAN ICES-3 (B), VCCI-B, RoHS, WEEE, China RoHS, CCC

Built-in USB hub	Yes
USB upstream port type	USB Type-B,USB Type-C
Number of USB Type-B upstream ports quantity	2
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	94 W
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	No
Built-in KVM switch	Yes

Ethernet LAN	Yes

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	Yes
Adjustable height (max)	100 mm
Swivelling	Yes
Tilt adjustment	Yes
Tilt angle range	5 - 30 °
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	DEU,ENG,ESP,FRE,ITA,SWE

Energy efficiency class (SDR)	Not available
Energy efficiency class (HDR)	Not available
Power consumption (typical)	62 W
Power consumption (standby)	0.5 W
Power consumption (max)	260 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz

Cables included	AC,DisplayPort,HDMI,USB Type-A to USB Type-B,USB Type-C to USB Type-C
Quick start guide	Yes
Manual	Yes

Width (with stand)	721 mm
Depth (with stand)	225.1 mm
Height (with stand)	469.5 mm
Weight (with stand)	12400 g
Width (without stand)	721 mm
Depth (without stand)	73 mm
Height (without stand)	401 mm
Weight (without stand)	8200 g
