Produktbeskrivning

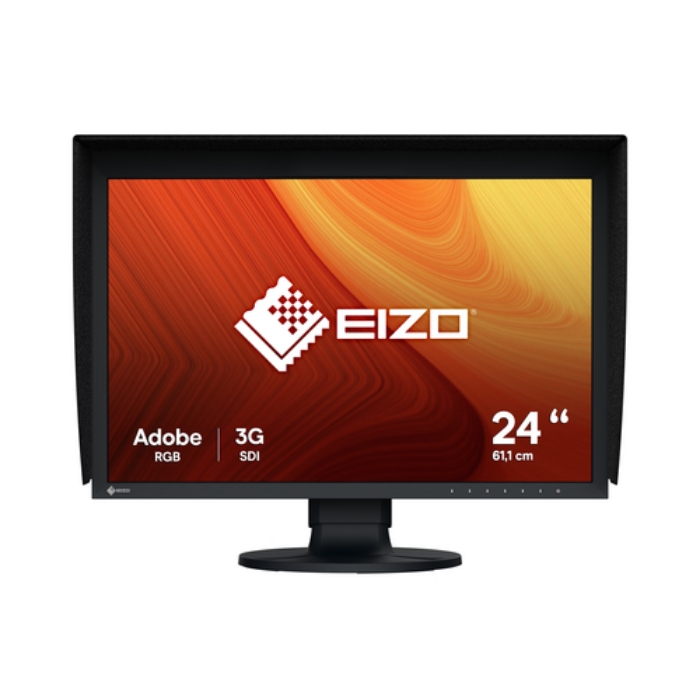

With its compact 24" size, SDI connectivity, and HDR support, the ColorEdge CG2400SV is the ideal monitor for editing suites, studios, and mobile productions in the film and broadcast industry. The SDI input and output (3G-SDI Level A and HD-SDI) enable loss-free transmission of uncompressed video signals ś perfect for use with camera systems and live feeds. HDMI and DisplayPort are also available. With a maximum brightness of 400 cd/m² and a contrast ratio of 1800:1, the CG2400SV meets the requirements of the DCI standard. Support for HLG and PQ gamma curves ensures accurate HDR display ś ideal for postproduction and on-set monitoring. The Wide Gamut IPS panel covers 98% of the DCI-P3 color space and supports the BT.2020 standard. With 10-bit display and a 16-bit 3D LUT, the monitor delivers accurate color reproduction and smooth transitions - essential for color-critical applications. The integrated calibration sensor enables effortless, automatic calibration. With the Pixel Inspection function, users can directly check whether the signal processing is correctly set throughout the entire workflow. The integrated USB hub, headphone jack, and included light shield round out the CG2400SV’s extensive features.



Viktiga egenskaper

EIZO ColorEdge CG2400SV. Display diagonal: 61.2 cm (24.1"), Display resolution: 1920 x 1200 pixels, HD type: WUXGA, Display technology: LCD, Response time: 11 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black



Teknisk specifikation

Display diagonal	24.1 "
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	400 cd/m²
Response time	11 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1920 x 1200 (WUXGA)
Supported video modes	1080i,1080p,720p,576p,576i,480p,480i,1200p
Contrast ratio (typical)	1800:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.27 x 0.27 mm
Pixel density	94 ppi
Viewable size, horizontal	518.4 mm
Viewable size, vertical	324 mm
Digital horizontal frequency	26 - 76 kHz
Digital vertical frequency	23 - 61 Hz
Display diagonal (metric)	61.1 cm
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Hybrid Log-Gamma (HLG)
Colour depth	10 bit
Colour gamut standard	Adobe RGB,DCI-P3,Rec. 709,sRGB,EBU
sRGB coverage (typical)	100 %
Adobe RGB coverage	97 %
Hardware calibration	Yes
Built-in calibration sensor	Yes

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes

Built-in speaker(s)	No
Built-in camera	No

Market positioning	Graphics design
Product colour	Black
Feet colour	Black
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, RoHS, WEEE, China RoHS, CCC

Built-in USB hub	Yes
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	2
Number of USB Type-B upstream ports quantity	2
USB Type-A downstream ports quantity	4
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	Yes
Headphone connectivity	3.5 mm
Built-in KVM switch	Yes
HDCP	Yes

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	Yes
Adjustable height (max)	155 mm
Pivot	Yes
Pivot angle	-90 - 90 °
Swivelling	Yes
Swivel angle range	0 - 344 °
Tilt adjustment	Yes
Tilt angle range	-5 - 35 °
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	DEU,ENG,ESP,FRE,ITA,SWE

Energy efficiency class (SDR)	Not available
Energy efficiency class (HDR)	Not available
Power consumption (typical)	18 W
Power consumption (standby)	0.5 W
Power consumption (max)	64 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %

Stand included	Yes
Cables included	HDMI,USB Type-A to USB Type-B,AC
Sun hood included	Yes
Quick start guide	Yes

Width (with stand)	554.4 mm
Depth (with stand)	245 mm
Height (with stand)	408.1 mm
Weight (with stand)	8500 g
Width (without stand)	554.4 mm
Depth (without stand)	70.2 mm
Height (without stand)	374.1 mm
Weight (without stand)	5500 g

Harmonized System (HS) code	85285210

Warranty period	5 year(s)
Compliance certificates	CB,CCC,CE,China RoHS,Federal Communications Commission (FCC),ICES,PSE,RCM,RoHS,TÜV mark,UKCA,VCCI,WEEE

DCI-P3 coverage	99 %
Look-up table (LUT) bit depth	16
