Produktbeskrivning

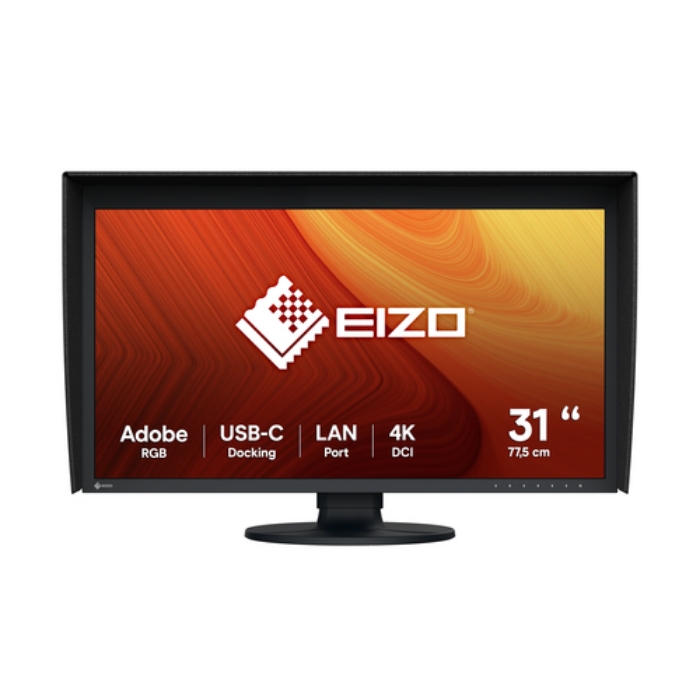

The ColorEdge CG3100X is the top model in the ColorEdge series. With a generous screen diagonal of 30.5 inches and DCI-4K resolution (4096 × 2160 pixels), it meets all the requirements of professional users in film post-production, color grading, and image editing. Thanks to pre-installed PQ and HLG HDR presets and a maximum brightness of 500 cd/m², the CG3100X can be seamlessly integrated into modern HDR workflows. Photographers, content creators, and digital artists benefit from the generous 17:9 format, which offers plenty of space for creative expression with a razor-sharp detail resolution of 152 ppi. The wide color gamut coverage of common standard color spaces such as Rec709, Rec2020, DCI-P3, and AdobeRGB, as well as the 24-bit 3D LUT, ensure realistic and high-contrast color reproduction with maximum precision. The CG3100X also impresses in terms of connectivity: Notebooks can be connected via USB-C with just one cable - including image and data transfer as well as power supply with up to 94 watts. In addition to a DisplayPort connection, there is also a powerful HDMI connection that even supports uncompressed DCI 4K (4:4:4) material in 12 bits at up to 60 Hz - ideal for HDMI-based production environments. An integrated calibration sensor enables effortless, automatic self-calibration, while the RJ45 LAN port, USB hub, and included light shield round out the CG3100X’s professional features.



Viktiga egenskaper

EIZO ColorEdge CG3100X. Display diagonal: 77.5 cm (30.5"), Display resolution: 4096 x 2160 pixels, HD type: 4K DCI, Display technology: LCD, Response time: 15 ms, Native aspect ratio: 17:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black



Teknisk specifikation

Display diagonal	30.5 "
Display resolution	4096 x 2160 pixels
Native aspect ratio	17:9
Display technology	LCD
Touchscreen	No
HD type	4K DCI
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	500 cd/m²
Response time	15 ms
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160,4096 x 2160
Supported video modes	1080i,1080p,720p,576p,480i
Contrast ratio (typical)	1800:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.167 x 0.167 mm
Pixel density	152 ppi
Horizontal scan range	15 - 136 kHz
Vertical scan range	23 - 61 Hz
Viewable size, horizontal	685.7 mm
Viewable size, vertical	361.6 mm
Digital horizontal frequency	25 - 137 kHz
Digital vertical frequency	23 - 61 Hz
Display diagonal (metric)	77.5 cm
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Hybrid Log-Gamma (HLG)
Colour depth	10 bit
Colour gamut standard	Adobe RGB,DCI-P3,EBU,Rec. 709,sRGB
sRGB coverage (typical)	100 %
Adobe RGB coverage	97 %
Hardware calibration	Yes
Built-in calibration sensor	Yes

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes

Built-in speaker(s)	No
Built-in camera	No

Market positioning	Photo editing
Product colour	Black
Feet colour	Black
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), FograCert Softproofing System (class A), RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-A, RoHS, WEEE

Built-in USB hub	Yes
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B,USB Type-C
Number of upstream ports	2
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	94 W
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	Yes
Headphone connectivity	3.5 mm
Built-in KVM switch	Yes
HDCP	Yes
HDCP version	2.3

Ethernet LAN	Yes

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	155 mm
Swivelling	Yes
Swivel angle range	0 - 344 °
Tilt adjustment	Yes
Tilt angle range	-5 - 35 °
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	DEU,ENG,ESP,FRE,ITA,SWE

Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	51.9 kWh
Power consumption (typical)	86 W
Power consumption (standby)	0.5 W
Power consumption (max)	270 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %

Stand included	Yes
Cables included	HDMI,USB Type-A to USB Type-B,USB Type-C to USB Type-C,AC
Sun hood included	Yes
Quick start guide	Yes

Width (with stand)	721 mm
Depth (with stand)	290 mm
Height (with stand)	428.1 mm
Weight (with stand)	12300 g
Width (without stand)	721 mm
Depth (without stand)	87.2 mm
Height (without stand)	413.9 mm
Weight (without stand)	8900 g

Harmonized System (HS) code	85285210

Compliance certificates	CB,CE,Federal Communications Commission (FCC),PSE,RCM,RoHS,TÜV mark,UKCA,VCCI,WEEE
Warranty period	5 year(s)

DCI-P3 coverage	99 %
Look-up table (LUT) bit depth	24
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
