Produktbeskrivning

The EV2740S has all the features you need for a crisp, clear, and flicker-free display. With 4K UHD resolution, it displays four times as much information as standard Full HD (1920 x 1080) resolution. This means users can see more information at once on the 27-inch screen, reducing the need to scroll or switch between hidden windows. Although 4K monitors typically require more power due to their higher resolution and larger screen size, the EV2740S boasts a typical power consumption of just 12 watts. This helps companies reduce energy costs and minimize their environmental footprint. Like all EIZO 4K monitors, the EV2740S is equipped with a USB-C port. This transmits the video signal, provides access to the monitor's USB hub with four ports for peripheral devices, and delivers up to 70 watts of power—all with just one cable between the notebook and the screen. In Picture-by-Picture (PbyP) mode, the monitor displays images from two signal sources side by side. The EV2740S is certified to comprehensive global sustainability standards, including TCO Certified generation 10 and the ENERGY STAR® label. The EPEAT Gold award, the highest level, and EPEAT Climate+ underscore EIZO's commitment to sustainability.



Viktiga egenskaper

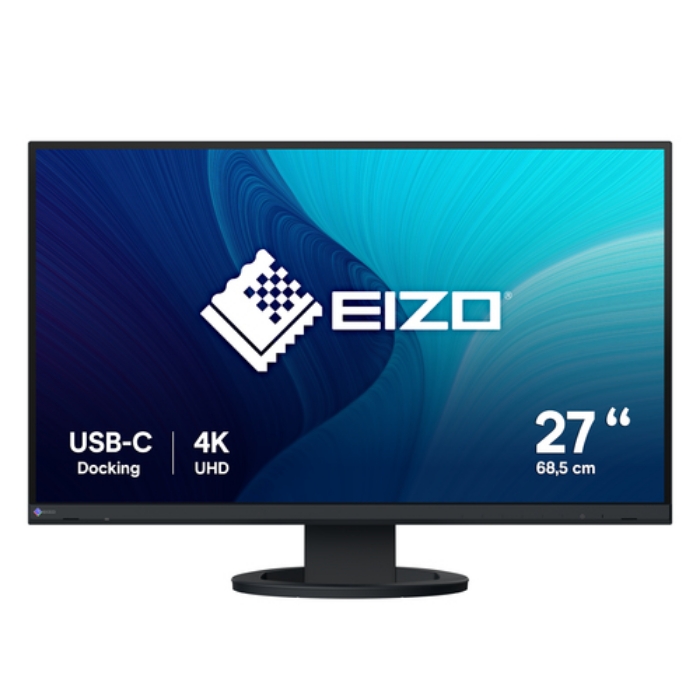

EIZO FlexScan EV2740S-BK. Display diagonal: 68.6 cm (27"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black



Teknisk specifikation

Display diagonal	27 "
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	350 cd/m²
Response time	6 ms
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	720 x 400,1280 x 1024 (SXGA),3840 x 2160,800 x 600 (SVGA),2560 x 1440,1600 x 1200 (UXGA),1024 x 768 (XGA),1680 x 1050 (WSXGA+),640 x 480 (VGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Pixel pitch	0.155 x 0.155 mm
Pixel density	163 ppi
Viewable size, horizontal	596.7 mm
Viewable size, vertical	335.7 mm
Digital horizontal frequency	31 - 134 kHz
Digital vertical frequency	29 - 61 Hz
Display diagonal (metric)	68.5 cm
Colour depth	10 bit
Colour gamut standard	sRGB

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	2 W

Market positioning	Office
Product colour	Black
Feet colour	Black
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 10, TÜV/Low Blue Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC

Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of upstream ports	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	70 W
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	No
HDCP	Yes
HDCP version	1.4/2.3

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	169 mm
Pivot	Yes
Pivot angle	-90 - 90 °
Swivelling	Yes
Swivel angle range	0 - 344 °
Tilt adjustment	Yes
Tilt angle range	-5 - 35 °
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	DEU,ENG,ESP,FRE,ITA,SWE

Energy efficiency class (SDR)	C
Energy consumption (SDR) per 1000 hours	13 kWh
Power consumption (typical)	12 W
Power consumption (standby)	0.27 W
Power consumption (max)	149 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %

Stand included	Yes
Cables included	USB Type-C to USB Type-C,AC
Quick start guide	Yes

Width (with stand)	611.6 mm
Depth (with stand)	230 mm
Height (with stand)	376.3 mm
Weight (with stand)	8600 g
Width (without stand)	611.6 mm
Depth (without stand)	60.7 mm
Height (without stand)	364.3 mm
Weight (without stand)	5800 g

Sustainability certificates	ENERGY STAR,EPEAT Climate +,EPEAT Gold,TCO
Sustainability compliance	Yes

Harmonized System (HS) code	85285210

Warranty period	5 year(s)
Compliance certificates	CB,CCC,CE,China RoHS,Federal Communications Commission (FCC),GS mark,ICES,PSE,RCM,RoHS,cTUVus,UKCA,VCCI,WEEE

Picture-by-Picture (PbP)	Yes
Automatic brightness control	Yes
Look-up table (LUT) bit depth	10
