Produktbeskrivning

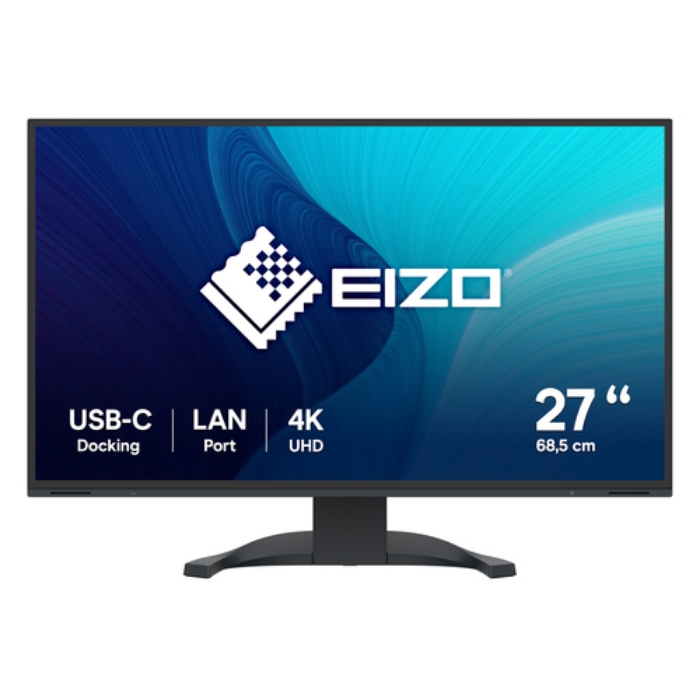

The EV2740X makes a clear statement for performance. 4K UHD resolution, USB-C docking and 94 W Power Delivery are convincing. Its 163 dpi display quality ensures crisp graphics and text. Docking convenience via its USB-C interface makes the FlexScan EV2740X the ideal display solution for professional office or CAD applications. Switching smoothly between office and home office is a breeze thanks to the USB-C port. Especially notebook and tablet users benefit from this. A single connection to the computer is sufficient for charging power, video signal, audio and USB data including network. The casing is available in black or white; even the cables are color-coordinated. The monitor is equipped with two HDMI ports as well as one DisplayPort and USB-C port each. With its two USB upstream ports, the EV2740X can be used as a keyboard/mouse switcher. For example, if both a home PC and a company computer are connected to the monitor in the home office, both computers can be operated with a single keyboard and mouse. When using its Picture-by-Picture function, it even displays two signal sources simultaneously.



Viktiga egenskaper

EIZO FlexScan EV2740X-BK. Display diagonal: 68.6 cm (27"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black



Teknisk specifikation

Display diagonal	27 "
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	350 cd/m²
Response time	5 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	720 x 400,1280 x 1024 (SXGA),3840 x 2160,800 x 600 (SVGA),2560 x 1440,1600 x 1200 (UXGA),1024 x 768 (XGA),1680 x 1050 (WSXGA+),640 x 480 (VGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Contrast ratio (typical)	2000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Pixel pitch	0.155 x 0.155 mm
Pixel density	163 ppi
Viewable size, horizontal	597 mm
Viewable size, vertical	336 mm
Digital horizontal frequency	31 - 135 kHz
Digital vertical frequency	29 - 61 Hz
Display diagonal (metric)	68.5 cm
Colour gamut standard	sRGB

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	4 W

Market positioning	Office
Product colour	Black
Feet colour	Black
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 10, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC

Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B,USB Type-C
Number of upstream ports	2
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	94 W
HDMI	Yes
HDMI ports quantity	2
DisplayPorts quantity	1
Headphone out	Yes
Headphone outputs	2
Headphone connectivity	3.5 mm
Built-in KVM switch	Yes
HDCP	Yes
HDCP version	1.4/2.3

Ethernet LAN	Yes

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	195 mm
Pivot	Yes
Pivot angle	0 - 90 °
Swivelling	Yes
Swivel angle range	-90 - 90 °
Tilt adjustment	Yes
Tilt angle range	-5 - 35 °
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	DEU,ENG,ESP,FRE,ITA,SWE

Energy efficiency class (SDR)	D
Energy consumption (SDR) per 1000 hours	18 kWh
Power consumption (typical)	16 W
Power consumption (standby)	0.35 W
Power consumption (max)	186 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %

Stand included	Yes
Cables included	AC,USB Type-C to USB Type-C
Quick start guide	Yes

Width (with stand)	612 mm
Depth (with stand)	242 mm
Height (with stand)	565 mm
Weight (with stand)	8200 g
Width (without stand)	612 mm
Depth (without stand)	61 mm
Height (without stand)	359 mm
Weight (without stand)	5500 g

Sustainability certificates	ENERGY STAR,EPEAT Climate +,EPEAT Gold,TCO
Sustainability compliance	Yes

Harmonized System (HS) code	85285210

Compliance certificates	CB,CCC,CE,China RoHS,Federal Communications Commission (FCC),GS mark,ICES,PSE,RCM,RoHS,cTUVus,UKCA,VCCI,WEEE
Warranty period	5 year(s)

Picture-by-Picture (PbP)	Yes
Look-up table (LUT) bit depth	14
Automatic brightness control	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
