Produktbeskrivning

The EIZO FlexScan EV3450XC is optimized for the demands of the modern working world. With an integrated, high-resolution 5MP webcam, built-in microphone with noise and echo cancellation and feedback-free speakers, it is fully equipped for video conferencing. In addition, the curved ultrawide screen with a 34.1" diagonal, 21:9 format and UWQHD resolution (3440 x 1440 pixels) offers an extra large screen area for demanding applications or intensive multitasking. The webcam and infrared sensor support Windows Hello for convenient and secure unlocking of the computer using facial recognition. The EV3450XC’s USB-C docking connects video, audio and USB data signals and charges laptops with 94 watts of power. The integrated LAN port enables stable online conferences. Image reproduction with the EV3450XC is sharp, clear, fast and flicker-free. When scrolling and positioning windows or images, the readable display appears in fractions of a second - faster than it can be perceived. Power consumption and energy efficiency are always in view. This also applies to colors, which are displayed in sRGB free of oversaturation. Equipped in this way, the EV3450XC is ideally tailored to the challenges of companies that rely on hybrid forms of work with a combination of office work and remote work.



Viktiga egenskaper

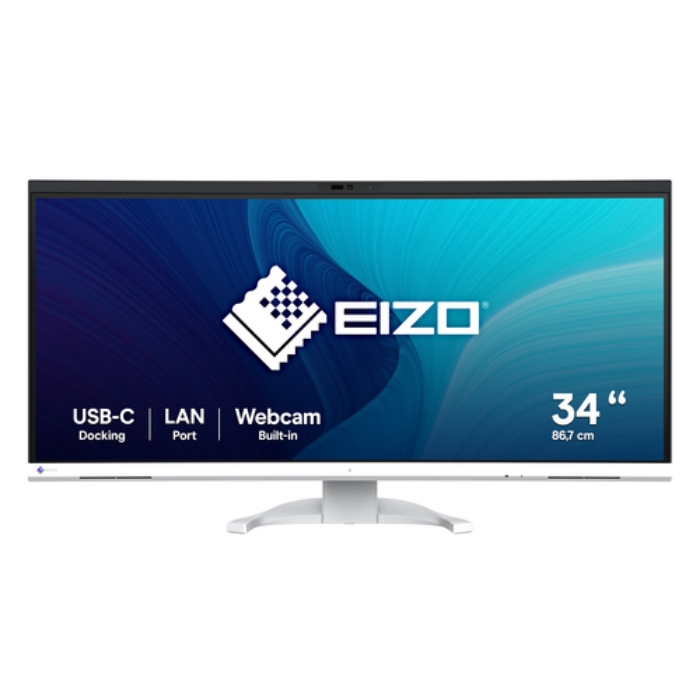

EIZO FlexScan EV3450XC-WT. Display diagonal: 86.6 cm (34.1"), Display resolution: 3440 x 1440 pixels, HD type: UltraWide Quad HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: White



Teknisk specifikation

Display diagonal	34.1 "
Display resolution	3440 x 1440 pixels
Native aspect ratio	21:9
Display technology	LCD
Touchscreen	No
HD type	UltraWide Quad HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	300 cd/m²
Response time	5 ms
Anti-glare screen	Yes
Screen shape	Curved
Screen curvature rating	3800R
Supported graphics resolutions	640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,3440 x 1440
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Pixel pitch	0.233 x 0.233 mm
Pixel density	109 ppi
Viewable size, horizontal	799.8 mm
Viewable size, vertical	334.8 mm
Digital horizontal frequency	31 - 89.5 kHz
Digital vertical frequency	29.5 - 61 Hz
Display diagonal (metric)	86.7 cm
Colour gamut standard	sRGB

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Built-in speaker(s)	Yes
Built-in camera	Yes
Number of speakers	2
RMS rated power	8 W
Megapixel (approx.)	5 MP
Built-in microphone	Yes

Market positioning	Office
Product colour	White
Feet colour	White

Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B,USB Type-C
Number of upstream ports	2
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	2
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	94 W
HDMI	Yes
HDMI ports quantity	2
DisplayPorts quantity	1
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Built-in KVM switch	Yes
HDCP	Yes
HDCP version	1.4/2.3

Ethernet LAN	Yes

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	Yes
Adjustable height (max)	195 mm
Swivelling	Yes
Swivel angle range	-90 - 90 °
Tilt adjustment	Yes
Tilt angle range	-5 - 35 °
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	DEU,ENG,ESP,FRE,ITA,SWE

Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	25 kWh
Power consumption (typical)	23 W
Power consumption (standby)	0.4 W
Power consumption (max)	222 W
Power consumption (off)	0 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %

Stand included	Yes
Cables included	AC,DisplayPort,USB Type-C to USB Type-C,USB Type-A to USB Type-B
Quick start guide	Yes

Width (with stand)	819.5 mm
Depth (with stand)	242 mm
Height (with stand)	414.5 mm
Weight (with stand)	12100 g
Width (without stand)	819.5 mm
Depth (without stand)	103.1 mm
Height (without stand)	385 mm
Weight (without stand)	9200 g

Sustainability certificates	ENERGY STAR,EPEAT Climate +,EPEAT Gold,TCO
Sustainability compliance	Yes

Harmonized System (HS) code	85285210

Compliance certificates	CB,CCC,CE,China RoHS,Federal Communications Commission (FCC),GS mark,PSE,RCM,RoHS,TÜV mark,UKCA,VCCI
Warranty period	5 year(s)

Picture-by-Picture (PbP)	Yes
Automatic brightness control	Yes
Look-up table (LUT) bit depth	14
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
