Viktiga egenskaper

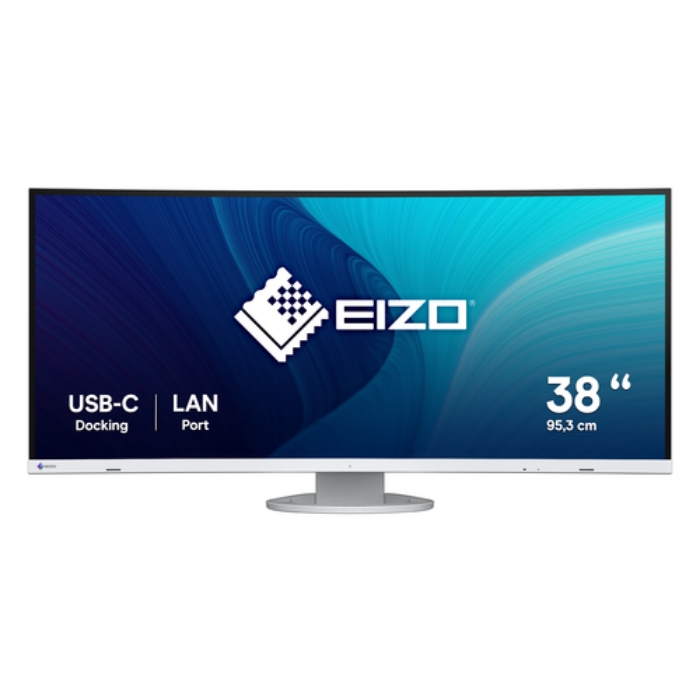

EIZO FlexScan EV3895-WT. Display diagonal: 95.2 cm (37.5"), Display resolution: 3840 x 1600 pixels, HD type: UltraWide Quad HD+, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 24:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: White



Teknisk specifikation

Display diagonal	37.5 "
Display resolution	3840 x 1600 pixels
Native aspect ratio	24:10
Display technology	LCD
Touchscreen	No
HD type	UltraWide Quad HD+
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	300 cd/m²
Response time	5 ms
Anti-glare screen	Yes
Screen shape	Curved
Screen curvature rating	2300R
Supported graphics resolutions	640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3440 x 1440,3840 x 1600
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Pixel pitch	0.229 x 0.229 mm
Pixel density	111 ppi
Viewable size, horizontal	879.7 mm
Viewable size, vertical	366.5 mm
Viewable size diagonal	953 mm
Digital horizontal frequency	31 - 99 kHz
Digital vertical frequency	29 - 31 Hz
Colour gamut standard	sRGB

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	2 W

Market positioning	Office
Product colour	White
Feet colour	White
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 9, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC

Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B,USB Type-C
Number of upstream ports	3
Number of USB Type-B upstream ports quantity	2
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	85 W
HDMI	Yes
HDMI ports quantity	2
DisplayPorts quantity	1
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Built-in KVM switch	Yes
HDCP	Yes

Ethernet LAN	Yes

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	192.7 mm
Swivelling	Yes
Swivel angle range	-70 - 70 °
Tilt adjustment	Yes
Tilt angle range	-5 - 35 °
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	DEU,ENG,ESP,FRE,ITA,SWE

Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	29 kWh
Power consumption (typical)	29 W
Power consumption (standby)	0.5 W
Power consumption (max)	194 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %

Stand included	Yes
Cables included	AC,DisplayPort,HDMI,USB Type-A to USB Type-B,USB Type-C to USB Type-C
Quick start guide	Yes

Width (with stand)	893.9 mm
Depth (with stand)	240 mm
Height (with stand)	411 mm
Weight (with stand)	13200 g
Width (without stand)	893.9 mm
Depth (without stand)	109.8 mm
Height (without stand)	398.2 mm
Weight (without stand)	9500 g

Sustainability certificates	ENERGY STAR,EPEAT Climate +,EPEAT Silver,TCO
Sustainability compliance	Yes

Harmonized System (HS) code	85285210

Compliance certificates	CB,CCC,CE,China RoHS,Federal Communications Commission (FCC),GS mark,ICES,PSE,RCM,RoHS,cTUVus,UKCA,VCCI,WEEE
Warranty period	5 year(s)

Picture-by-Picture (PbP)	Yes
Automatic brightness control	Yes
Look-up table (LUT) bit depth	14
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
