Produktbeskrivning

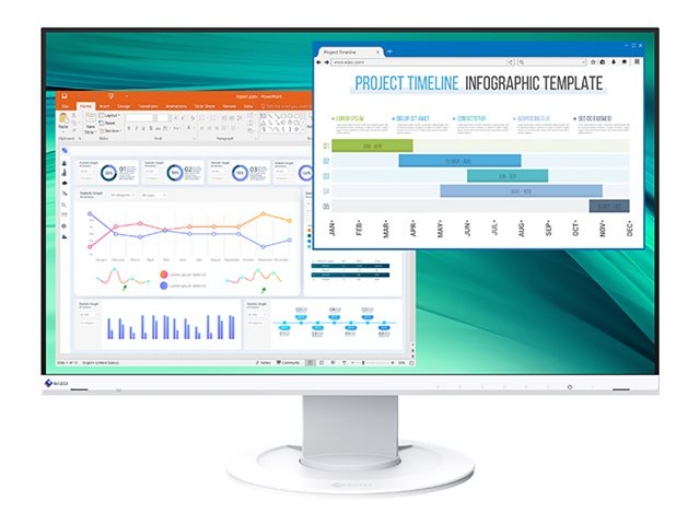

The EV2460 uses a 23.8-inch IPS panel with full HD (1920 x 1080) resolution. The small-footprint monitor has a width of just 537.8 mm for saving desk space. Furthermore, 140 mm height adjustment allows you to easily place a laptop under monitor to realize a convenient dual-screen environment.
Egenskaper
High resolution in a space-saving designThe EV2460 uses a 23.8-inch IPS panel with full HD (1920 x 1080) resolution. The small-footprint monitor has a width of just 537.8 mm for saving desk space. Furthermore, 140 mm height adjustment allows you to easily place a laptop under monitor to realize a convenient dual-screen environment.
Low impact on the environmentThe EV2460 implements EIZO's proprietary EcoView technologies, which cut power consumption by as much as 40% compared to displaying at maximum brightness and help to eliminate eyestrain when viewing the monitor for long periods.
Refreshing white with frameless designThe EV2460 comes with a white cabinet option with matching cables. Compared to black, white monitors offer a refreshing change that brightens the office with style. The frameless design further sophisticates the look.
The perfect positionThe stand features wide range height adjustment, tilt, and swivel, while saving space and remaining stylish. You can adjust your monitor to the perfect position with ease.
Say goodbye to tired eyesThe EV2460 is equipped with functions to prevent eye fatigue even over long periods of use. With reduced eye fatigue, concentration increases, leading to improved productivity.
Teknisk specifikation
Allmänt
Typ av bildskärm | LED-bakgrundsbelyst LCD-skärm / TFT aktiv matris |
Energiklass | Klass B |
Energikonsumtion per år | 18 kWh |
Diagonal storlek | 23.8" |
Inbyggda enheter | USB 3.1-hubb |
Paneltyp | IPS |
Bildförhållande | 16:9 |
Ursprunglig upplösning | Full HD (1080p) 1920 x 1080 |
Pixelhöjd | 0.275 mm |
Pixlar per tum | 93 |
Ljusstyrka | 250 cd/m² |
Kontrastförhållande | 1000:1 |
Färgstöd | 16,7 miljoner färger |
Responstid | 5 ms (grå-till-grå) |
Vertikal uppdateringshastighet | 61 Hz |
Horisontell uppdateringshastighet | 68 kHz |
Horisontell visningsvinkel | 178 |
Vertikal visningsvinkel | 178 |
Bakgrundsbelysningsteknik | LED-bakgrundsbelysning |
OSD-språk | Kinesiska (traditionell), kinesiska (förenklad), engelska, tyska, franska, italienska, svenska, spanska, japanska |
Egenskaper | HDCP, Auto EcoView, FlexStand, flimmerfri teknik, Movie Mode, sRGB Mode, Low Blue Light Content, Zero Bright Pixels |
Färg | Vit |
Dimensioner (BxDxH) | 53.78 cm x 23.3 cm x 33.36 cm - med ställ |
Vikt | 5.9 kg |
Ljud
Typ | Högtalare - stereo |
Uteffekt / kanal | 1 Watt |
Anslutning
Gränssnitt | VGA DVI-D (HDCP) DisplayPort (HDCP) HDMI (HDCP) Hörlurar (minijack) USB 3.1 uppströms (Typ B) 4 x USB 3.1 Gen 1 nedströms (Typ A) Linjeingång för ljud (minijack) |
Mekanisk
Displaylägesjusteringar | Höjd, pivot (rotation), vridbar bas, lutning |
Lutningsvinkel | -5/+35 |
Vridningsvinkel | 344 |
Rotationsvinkel | 90 |
Höjdjustering | 140 mm |
VESA-infästningsgränssnitt | 100 x 100 mm, VESA |
Diverse
Inkluderade tillbehör | Skruvar |
Medföljande kablar | 1 x DisplayPort-kabel - 2 m 2 x USB-kabel |
Standarder som följs | TUV GS, TUV S, CB, CCC, TUV Ergo, RoHS, WEEE, PSE Mark, FCC CFR47 Part 15 B, cTUVus, EPA, VCCI Class B, EAC, China RoHS, RCM, CAN ICES-3 Class B, TUV LBL |
Strömtillförsel
Inspänning | AC 120/230 V (50/60 Hz) |
Strömkonsumtion (driftläge) | 9 W |
Strömförbrukning för SDR (På-läge) | 9 kWh/1 000 h |
Strömförbrukning (typisk) | 10 Watt |
Strömkonsumtion (vid läge av) | 0 Watt |
Mått och vikt
Mått och vikt (komponenter) | Utan ställ - bredd: 53.78 cm - djup: 5.36 cm - höjd: 32.04 cm - vikt: 3.8 kg Med ställ - bredd: 53.78 cm - djup: 23.3 cm - höjd: 33.36 cm - vikt: 5.9 kg |
Miljöstandarder
TCO-certifierad | TCO Certified Displays 8 |
ENERGY STAR-certifierad | Ja |
Tillverkarens garanti
Service och support | Begränsad garanti - 5 år |
Miljöparametrar
Min temperatur vid drift | 5 °C |
Max temperatur vid drift | 35 °C |
Luftfuktighet vid drift | 20 - 80 % (icke-kondenserande) |
