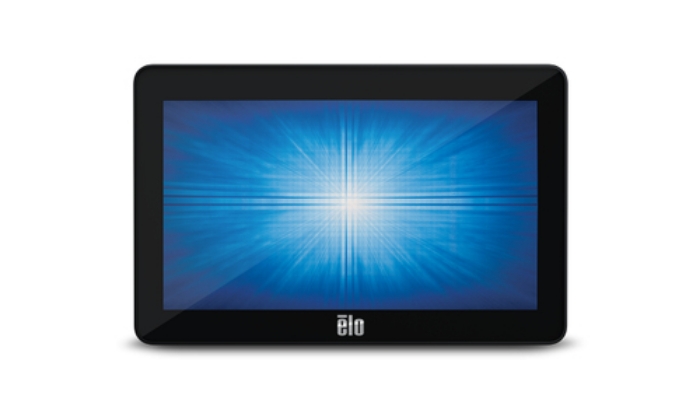

Touchscreen Monitor The Elo 0702L 7-inch touchscreen monitor offers the same seamless design that spans the entire Elo 02-Series lineup. With a form factor only half an inch thin and a design tailored for ease of integration, the 0702L thrives in customer-facing installations in point-of-sale, brand-loyalty, point-of- information, signage and hospitality applications. With a slim footprint, the 0702L is also well-suited for industrial kitchen equipment controllers and kitchen display systems.

Single-Cable Connection
Using DisplayLink technology, the 0702L provides a single-cable solution that combines power, video and touch signals into one USB connection. By reducing the number of cables from 3 to 1, installation is a breeze, and you never have to worry about a power adapter again. DisplayLink technology supports Windows, Android and Linux operating systems.

Well-Suited for…
Every business is different. Whether you need a customer-facing, point-of-sale touchscreen to display a transaction or an interactive display in a restaurant to enable guests to view the menu and make their orders, the 0702L provides the features to meet your installation needs with a modern, sleek aesthetic.

Mount With Flexibility
Customers demand a seamless shopping experience from the moment they enter the store through check-out. From stands and pole mounts to shelf mounts, wall mounts and 3rd-party VESA mounts, the touchscreens can be integrated with ease.

Brilliant Displays from 7 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution and light transmission for accurate touch response and vivid images. Capable of handling up to 10 simultaneous touches, the 02-Series touchscreen monitors provide an enhanced tablet-like experience.

EloCareSM – We Have Your Back
When a technology outage happens, retailers, restaurants and business operators want to know the right person to call, right away. EloCare offers services you can count on in case the unexpected happens.


Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5 years. We pride ourselves on being one of the best manufacturers in the market—we design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our products, and your maximum ROI.



Viktiga egenskaper

Elo Touch Solutions 0702L. Display diagonal: 17.8 cm (7"), Display technology: LCD/TFT, Display resolution: 800 x 480 pixels, Display brightness: 500 cd/m², Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	7 "
Display technology	LCD/TFT
Display resolution	800 x 480 pixels
Display brightness	500 cd/m²
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Response time	25 ms
Contrast ratio (typical)	500:1
Viewing angle, horizontal	150 °
Viewing angle, vertical	120 °
Display number of colours	16.2 million colours

Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 75 mm

International Protection (IP) code	IP54, IP65

Power consumption (typical)	3.7 W
Power consumption (off)	1.9 W

Package width	232 mm
Package depth	95 mm
Package height	170 mm
Package weight	650 g

Cables included	Micro-USB

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Certification	cUL, IC, CCC, CE, FCC, UL, VCCI, CB, RCM, NOM

Harmonized System (HS) code	85285210

Wall mountable	Yes

Micro-USB ports quantity	1
Maximum refresh rate	60 Hz
Quick start guide	Yes
Display viewable area (HxV)	154.08 x 85.92 mm
Height (without stand)	17.7 mm
Depth (without stand)	117.22 mm
Aspect ratio	5:3
Weight (without stand)	350 g
