Produktbeskrivning

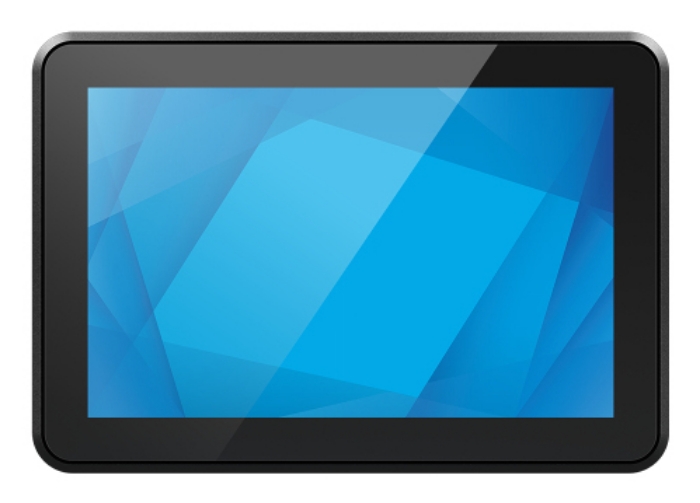

0764L 7-inch Industrial‑Grade
Open Frame Touch Display
Elo's 0764L 7-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 0764L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.

Brilliant, optically-bonded
TouchPro™ PCAP display.
The 7-inch 0764L optically-bonded display offers an enhanced, 10-touch
tablet-like experience with the durability, touch performance and premium
optics required for industrial and commercial applications.

Enable power, video and touch
with a single USB‑C cable.

Durable, energy
efficient touchscreen.

Navigate the OSD directly
on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls –
Now you can use the touchscreen or the controls you are used to on the rear
side of the monitor.

Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or protection from vandalism and
harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With
touch thru technology, the display can be mounted behind a front layer of glass up
to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.

Designed for easy integration.
Elo’s 7-inch touchscreen monitor can be mounted in landscape, portrait and
upward facing orientations, providing optimal flexibility for integrating in any
counter, kiosk or cabinet design. Whether viewing up close or from a distance, our
optically bonded display offers what you need while maintaining optimal clarity for
the viewing experience.

Computing power that
scales with a single cable.
With the Elo Backpack you get a powerful, commercial-grade Android compute
engine that can easily connect to the display with a single USB-C. Boasting a small
footprint in both size and weight, the Elo Backpack can secure inside any kiosk with
the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and
form factors has never been easier.



Viktiga egenskaper

Elo Touch Solutions 0764L. Product design: Digital signage flat panel. Display diagonal: 17.8 cm (7"), Display technology: LED, Display resolution: 1280 x 800 pixels, Display brightness: 400 cd/m², Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	7 "
Display technology	LED
LED backlight	Yes
Panel type	TFT-LCD
Display resolution	1280 x 800 pixels
Display brightness	400 cd/m²
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Multi-touch	Yes
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	40 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	176 °
Viewing angle, vertical	176 °
Active display area (W x H)	149.76 x 93.6 mm
Number of displays	1
Native refresh rate	60 Hz

HDMI ports quantity	1
DisplayPorts quantity	1
USB port	Yes
USB ports quantity	1
USB connector type	USB Type-C
Ethernet LAN	No

Built-in speaker(s)	No

Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Anti-glare screen	Yes

On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Number of OSD languages	8
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	8 W
Power consumption (sleep)	0.8 W
Power consumption (off)	0.15 W
Energy efficiency class (SDR)	D
Energy consumption (SDR) per 1000 hours	8 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	G4900T
Processor frequency	2.9 GHz
Processor cores	2
Internal memory	4 GB
On-board graphics card model	Intel® UHD Graphics 610
Discrete graphics card model	Not available

Display width	176.2 mm
Display depth	31.7 mm
Display height	120 mm
Display weight	660 g

Package width	232 mm
Package depth	95 mm
Package height	170 mm
Package weight	1300 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Quantity per pack	1 pc(s)

Compliance certificates	CE,Federal Communications Commission (FCC),CB,UKCA,CCC,China Compulsory Certification (CCC),VCCI,Norma Oficial Mexicana (NOM)

Aspect ratio	16:10
