Produktbeskrivning

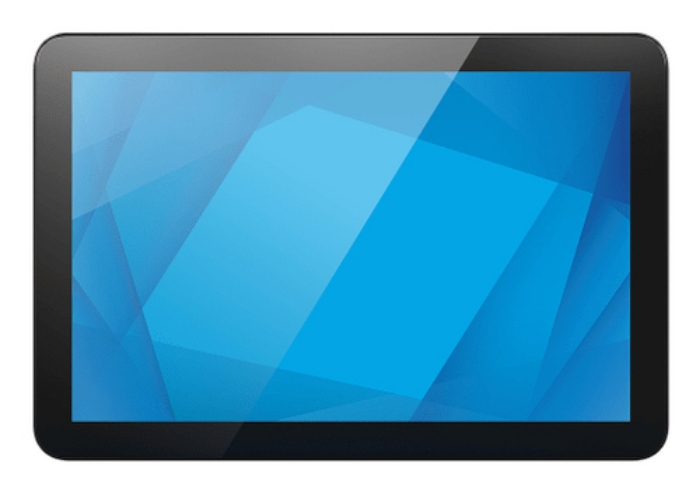

The 1004L touchmonitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 10” touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.

Create the perfect payment stack with the 10" touchscreen.
Easily pair the 10-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7", the 1004L offers the perfect compact touch display with the connectivity you need at the point of sale.



Viktiga egenskaper

Elo Touch Solutions 1004L. Product design: Digital signage flat panel. Display diagonal: 25.6 cm (10.1"), Display technology: LED, Display resolution: 1280 x 800 pixels, Display brightness: 360 cd/m², HD type: WXGA, Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	10.1 "
Display technology	LED
Panel type	TFT-LCD
Display resolution	1280 x 800 pixels
Display brightness	360 cd/m²
HD type	WXGA
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Multi-touch	Yes
Number of simultaneous touchpoints	10
Response time	30 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	170 °
Viewing angle, vertical	170 °
Display number of colours	16.7 million colours
Active display area (W x H)	216.96 x 135.6 mm
Display diagonal (metric)	26 cm
Number of displays	1
Native refresh rate	60 Hz
Horizontal scan range	30 - 80 kHz

HDMI ports quantity	1
DVI port	No
USB port	Yes
USB connector type	Micro-USB,USB Type-C
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	18 W
Ethernet LAN	No
DC-in jack	Yes

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	4 W

Product design	Digital signage flat panel
Product colour	Black
Orientation	Horizontal/Vertical
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 75 mm

Purpose	Universal
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Number of OSD languages	8
International Protection (IP) code	IP54
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	6.5 W
Power consumption (sleep)	1 W
Power consumption (off)	0.25 W
Energy efficiency class (SDR)	D
Energy consumption (SDR) per 1000 hours	7 kWh
Energy efficiency scale	A to G

Display width	249 mm
Display depth	168 mm
Display height	25 mm
Display weight	900 g

Package width	308 mm
Package depth	143 mm
Package height	223 mm
Package weight	2200 g

Cables included	HDMI,Power,USB Type-A to USB Type-C

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %
