Produktbeskrivning

Razor thin design.
Brilliant touchscreen.
Built to be one of the thinnest commercial-grade 10-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the- art optical bonding - all with brilliant display clarity.

Secure your cables into place.
With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.

A clean slate for touch experiences.

The perfect pairing for your POS terminal.
Whether you want to pair the 1004LS with a PC, a mobile device or an AiO with integrated payment, the 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.

Get peace of mind with EloCare.SM
From advance unit replacement to extended warranties, EloCare delivers service and support from the peopl who know your Elo products best.



Viktiga egenskaper

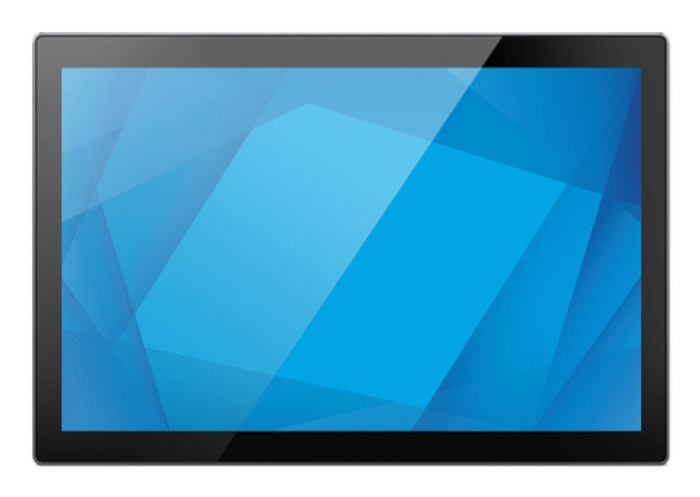

Elo Touch Solutions 1004LS. Product design: Digital signage flat panel. Display diagonal: 25.4 cm (10"), Display technology: LED, Display resolution: 1280 x 800 pixels, Display brightness: 400 cd/m², Touchscreen. Product colour: Grey



Teknisk specifikation

Display diagonal	10 "
Display technology	LED
Panel type	TFT-LCD
Display resolution	1280 x 800 pixels
Display brightness	400 cd/m²
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Multi-touch	Yes
Number of simultaneous touchpoints	10
Response time	30 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	170 °
Viewing angle, vertical	170 °
Display number of colours	16.7 million colours
Active display area (W x H)	216.96 x 135.6 mm
Display diagonal (metric)	256.54 cm
Number of displays	1
Native refresh rate	60 Hz
Horizontal scan range	30 - 60 kHz

USB port	Yes
USB connector type	USB Type-C
Ethernet LAN	No

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	4 W

Product design	Digital signage flat panel
Product colour	Grey
Orientation	Horizontal/Vertical
Screen shape	Flat
VESA mounting	Yes
Anti-glare screen	Yes

On Screen Display (OSD)	Yes
Number of OSD languages	8
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	6.6 W
Power consumption (sleep)	0.8 W
Power consumption (off)	0.15 W
Energy efficiency class (SDR)	D
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Display width	239.94 mm
Display depth	15 mm
Display height	163 mm
Display weight	600 g

Package width	312 mm
Package depth	77 mm
Package height	222 mm
Package weight	1110 g

Cables included	USB Type-C

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Quantity per pack	1 pc(s)

Aspect ratio	16:10
