Produktbeskrivning

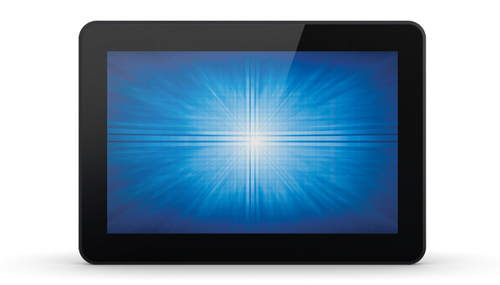

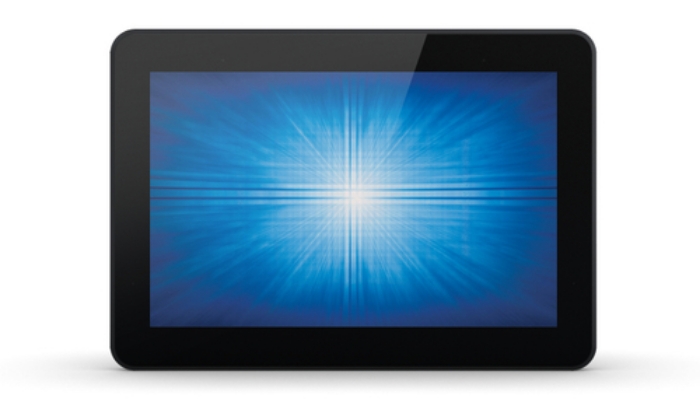

The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount
- Display Port and VGA video interfaces



Viktiga egenskaper

Elo Touch Solutions ET1093L. Display diagonal: 25.6 cm (10.1"), Display technology: LCD, Display resolution: 1280 x 800 pixels, Display brightness: 350 cd/m², Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	10.1 "
Display technology	LCD
Panel type	TFT
Display resolution	1280 x 800 pixels
Display brightness	350 cd/m²
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Response time	25 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	170 °
Viewing angle, vertical	170 °
Display number of colours	262144 colours
Supported graphics resolutions	640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 800

HDMI ports quantity	1
DisplayPorts quantity	1

Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 75 mm

Number of OSD languages	8
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	6.1 W
Power consumption (off)	0.5 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Package width	336 mm
Package depth	175 mm
Package height	262 mm
Package weight	2600 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %
Operating altitude	0 - 3658 m
Non-operating altitude	3658 - 12192 m

Harmonized System (HS) code	85285210

Wall mountable	Yes

Depth (without stand)	36.9 mm
Height (without stand)	178.5 mm
Display viewable area (HxV)	216.96 x 135.6 mm
Aspect ratio	16:10
Backlight type	LED
Power supply type	AC/DC
Digital horizontal frequency	30 - 60 kHz
Digital vertical frequency	50 - 75 Hz
Weight (without stand)	1200 g
Power consumption (PowerSave)	0.7 W
