Produktbeskrivning

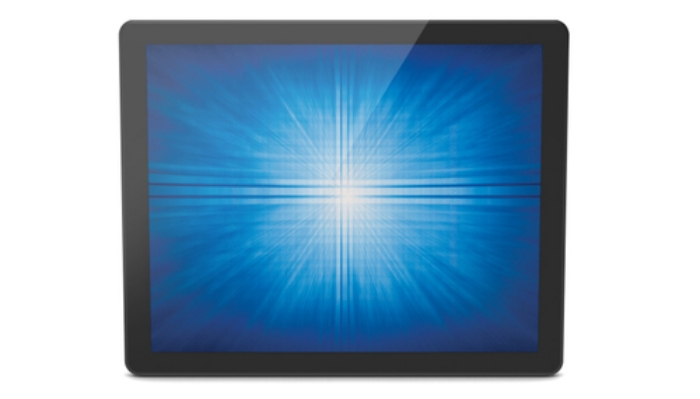

The Elo 1291L 12-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 1291L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users’ attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected, as well as backwards compatibility, helping to minimize enclosure costs.

Touch ready.

Available with a choice of industry-leading single-touch or multi-touch technologies, including IntelliTouch® single-touch surface acoustic wave (SAW) touchscreen technology, and Elo’s latest TouchPro™ PCAP two glass solution (2GS) 10-touch with Zero-bezel, offering pristine optical clarity and touch durability.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.



Viktiga egenskaper

Elo Touch Solutions 1291L. Display diagonal: 30.7 cm (12.1"), Display technology: LCD/TFT, Display resolution: 800 x 600 pixels, Display brightness: 405 cd/m², Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	12.1 "
Display technology	LCD/TFT
LED backlight	Yes
Display resolution	800 x 600 pixels
Display brightness	405 cd/m²
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Response time	25 ms
Contrast ratio (typical)	1500:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.2 million colours
Vertical scan range	50 - 75 Hz
Horizontal scan range	30 - 38 kHz

HDMI ports quantity	1
DisplayPorts quantity	1

Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 75 mm

On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	12.2 W
Power consumption (off)	0.5 W

Package width	384 mm
Package depth	185 mm
Package height	322 mm
Package weight	4750 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Harmonized System (HS) code	85285210

Wall mountable	Yes

Full HD	No
Compliance certificates	RoHS

Maximum refresh rate	60 Hz
Display viewable area (HxV)	246 x 184.5 mm
Digital vertical frequency	50 - 75 Hz
Weight (without stand)	2650 g
Digital horizontal frequency	30 - 38 kHz
Power supply type	DC
Backlight type	LED
Aspect ratio	4:3
Built-in camera	No
