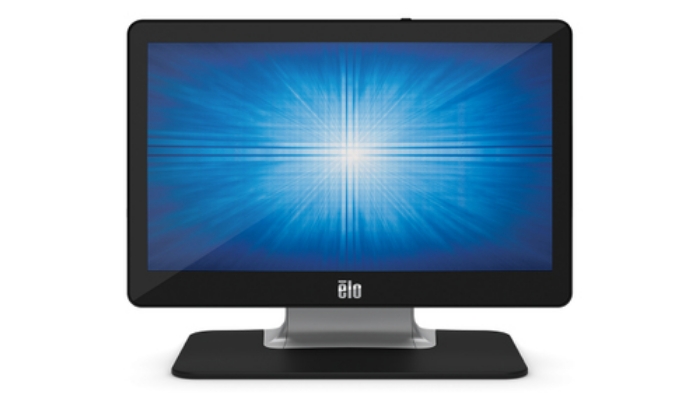

Elo’s 1302L Touchscreen Monitor
The Elo 1302L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1302L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Single Cable Connection
The 1302L is the first of its kind in the commercial market, providing a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

One for You. One for Your Customers.
The 1302L offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Well-Suited for…
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge Connect Lets You do More!
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

EMV Cradles
The ability to take payment is essential to complete a transaction. The 1302L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.

Barcode Scanner
Enhance POS terminals and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.

MSR
Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.

Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

Brilliant Displays from 10 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build, and stand by the complete solution, with touch integrated from the start.



Viktiga egenskaper

Elo Touch Solutions 1302L. Display diagonal: 33.8 cm (13.3"), Display technology: LCD/TFT, Display resolution: 1920 x 1080 pixels, Display brightness: 300 cd/m², HD type: Full HD, Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	13.3 "
Display technology	LCD/TFT
Display resolution	1920 x 1080 pixels
Display brightness	300 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Capacitive
Number of simultaneous touchpoints	10
Response time	25 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	170 °
Viewing angle, vertical	170 °
Display number of colours	16.78 million colours
Supported graphics resolutions	640 x 400,640 x 480 (VGA),720 x 400,720 x 576,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800,1280 x 960,1360 x 768 (WXGA),1366 x 768,1440 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Supported video modes	1080p

HDMI ports quantity	1
HDMI version	1.3a

Built-in speaker(s)	Yes
RMS rated power	1 W

Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 75 mm

On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Number of OSD languages	8
International Protection (IP) code	IPX1

Power consumption (typical)	9.8 W
Power consumption (standby)	1.35 W
Power consumption (off)	0.18 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Width (with stand)	259.57 mm
Depth (with stand)	326.06 mm
Height (with stand)	150 mm
Weight (with stand)	2320 g

Package width	333 mm
Package depth	415 mm
Package height	220 mm
Package weight	4620 g

Cables included	AC,HDMI,USB Type-A to USB Type-C

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Certification	RCM, cUL, IC, CCC, CE, BIS, VCCI, KCC, NOM, BSMI, UL, FCC, CB, WEEE, REACH

Wall mountable	Yes

Full HD	Yes
Compliance certificates	RoHS

Micro-USB ports quantity	4
Quick start guide	Yes
AC adapter included	Yes
Built-in microphone	No
Depth (without stand)	211.3 mm
Display viewable area (HxV)	293.76 x 165.24 mm
Height (without stand)	25.05 mm
Dimensions (W x D x H) with stand	259.57 x 326.06 x 150 mm
Aspect ratio	16:9
Power supply type	AC/DC
Headphone outputs	1
Weight (without stand)	1220 g
Digital vertical frequency	60 - 60 Hz
Digital horizontal frequency	30 - 75 kHz
Built-in camera	No
